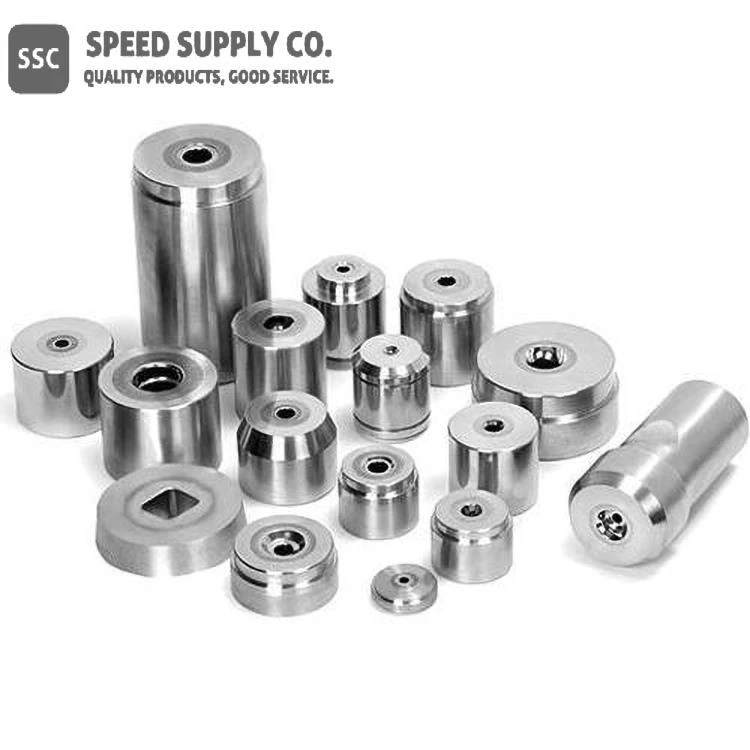

Tungsten Carbide Hlau Drawing Tuag

CAS Nr.: 12774-15-1

Muaj nuj nqi

CAS Nr:.	12774-15-1
Linear Formula:	WCCo
Khoom siv:	Tungsten Carbide / Cobalt Alloy
Cov duab:	Ntau yam
Loj:	{{0}} 100-35 000(mm), 0.0039-1.3780(inch) los yog Customized

Tungsten Carbide Hlau Drawing Tuag Description

Tungsten carbide yog cov khoom sib xyaw uas muaj cov lej sib npaug ntawm tungsten thiab carbon atoms. Daim ntawv tseem ceeb tshaj plaws ntawm tungsten carbide yog cov hmoov grey zoo, tab sis nws tuaj yeem raug nias rau hauv cov duab los ntawm cov txheej txheem hu ua sintering rau kev siv cov tshuab, txiav cov cuab yeej, abrasives, armor-piercing mos txwv, thiab cov hniav nyiaj hniav kub. Tungsten carbide tuag yog qhov nyuaj heev. Lawv tuaj yeem siv rau mining, tunneling, thiab kev tsim kho kev lag luam.

Tungsten carbide tuag yog qhov kev xaiv zoo tshaj plaws rau cov hlau xaim thiab lwm yam loj-loj hlau daim ntawv thov uas ua rau cov nqi txuag tau qhov tseem ceeb tshaj qhov tuag hnav tsis kam thiab hlau nto tiav. Txhua yam ntawm peb cov khoom yog tsim los nrog cov kws tshaj lij technology thiab nruj zoo ntsuas.

Cemented Tunsten Carbide Alloy Qib

Qib ISO	WC	Cov feem pua	Hardness Ra	Daim ntawv thov
K01	Tshuav	3	92	Precision tho txawv, thiab lwm yam.
K05/K10/20	Tshuav	6	89.5-91.5	General Machining, thiab lwm yam.
K30	Tshuav	8	88-89.5	Cam khwb cia hlau, Machining, thiab lwm yam.
K35	Tshuav	10	87-89	Drilling, Machining, thiab lwm yam.
--	Tshuav	15	87	Hnav daim ntawv thov, thiab lwm yam.
--	Tshuav	20	85.5	Stamping me me qhov chaw, thiab lwm yam.

Peb kuj muab WC-TiC-Co nrog cov ISO qib P10, P20, P30; thiab WC-TiC-TaC-Co carbide nrog cov ISO qib P25, P40, M10, M20, M30.

Qhov Loj

mm	ntiv tes	ND	SSCD	PCD	TC
0.012-0.049	0.0005-0.0019	●	●
0.050-0.099	0.0019-0.0039	●	●
0.100-0.599	0.0039-0.0236	●	●	●	●
0.600-2.099	0.0236-0.0826	●		●	●
2.1-15.9	0.0827-0.6260			●	●
16.0-35.0	0.6260-1.3780				●

Ua siab ntev

Txoj kab uas hla (inch)	Txoj kab uas hla (mm)	Kev kam rau siab (mm)	Roundness (hli)
Tsawg dua lossis sib npaug rau 0.00157	Tsawg dua lossis sib npaug rau 0.040	0.0003	0.0002
0.00158-0.00393	0.041-0.099	0.0005	0.0003
0.00394-0.01968	0.100-0.499	0.001	0.0005
0.01969-0.03936	0.500-0.999	0.0015	0.0008
0.03937-0.05905	1.000-1.499	0.002	0.001
0.05906-0.08661	1.500-2.199	0.003	0.0015
0.08662-0.12992	2.200-3.299	0.004	0.002
0.12993-0.18110	3.300-4.599	0.005	0.0025
0.18111-0.22834	4.600-5.799	0.006	0.003
0.22835-0.29921	5.800-7.599	0.007	0.0035
0.18111-0.41338	4.600-10.499	0.008	0.004

Hom tuag txo lub kaum rau ntau yam hlau

Elongation	Kev txo qis hauv cheeb tsam	Lead Zinc Silver Gold	Hard-Alloys Nickel Copper	Brass Cualloys Stainless hlau	High Carbon Steel	Kub Drawing ntawm tungsten
5-9 feem pua	5-8 feem pua	14	10	9	8	10
9-14 feem pua	8-12 feem pua	16	12	11	10	10
14-19 feem pua	12-16 feem pua	18	14	13	12	12
19-33 feem pua	16-25 feem pua	22	18	16	15	14
33-54 feem pua	25-35 feem pua	24	22	18	18	16

Tolerance ntawm Txo Lub kaum sab xis: ntxiv /-2 degree

Tungsten Carbide Hlau Drawing Tuag daim ntaub ntawv thiab lwm yam lag luam

● Hlau Drawing

Chemical Identifiers

Linear Formula	WCCo
MDL Number	TIAB SA 00064847
EC No.	N/A
Beilstein/Reaxys No.	N/A
Pubchem CID	N/A
IUPAC npe	N/A
SMILES	[W plus 4][C-4].[Co]
InchI ID nkag mus	InChI=1S/C.Co.W/q-4;; ua plus4
InchI Key	UONOETXJSWQNOL-UHFFFAOYSA-N

Tungsten Carbide / CobaltHlau Drawing TuagKhoom (Theoretical)

Compound Formula	CCOW
Molecular Luj	254.78
Qhov tshwm sim	Grey Rod
Melting Point	N/A
Boiling Point	N/A
Qhov ntom	N/A
Solubility hauv H2O	N/A
Exact Mass	254.783997 Ib
Monoisotopic pawg	254.884003 Nws
Them nqi	N/A

Tungsten Carbide / CobaltHlau Drawing TuagCov Ntaub Ntawv Kev Noj Qab Haus Huv & Kev Nyab Xeeb

Lus Cim	Ceeb toom
Cov Lus Qhia Txog Hazard	H334-H317-H228
Hazard Codes	F, Xn
Risk Codes	11-42/43
Cov lus hais txog kev nyab xeeb	22-23-24-37-45-60
RTECS Number	N/A
Cov ntaub ntawv thauj mus los	UN3178 4.1/PG III
WGK Germany	3
GHS Daim duab	GHS02 Nplaim GHS08 Health Hazard GHS07 Exclamation Point
