Muaj nuj nqi
CAS Nr:. | 12774-15-1 |
Linear Formula: | WCCo |
Khoom siv: | Tungsten Carbide / Cobalt Alloy |
Cov duab: | Sawb |
Loj: | Customize |

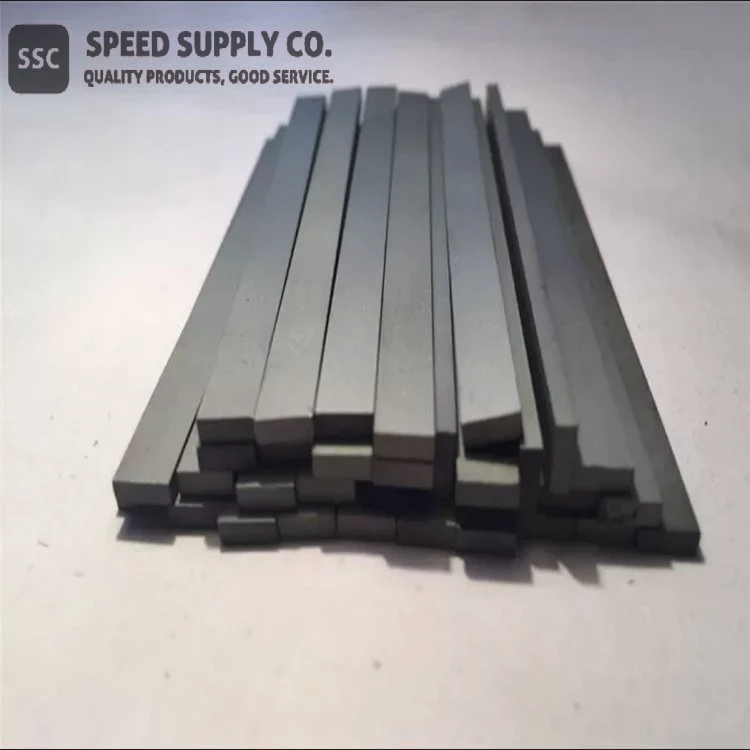

Cemented Tungsten Carbide Sawb piav qhia
tungsten carbide (tseem hu ua "hard hlau") yog cov khoom siv sib xyaw uas tsim los ntawm cov hmoov hlau metallurgy, uas muaj ib los yog ntau dua cov khoom nyuaj (piv txwv li tungsten carbide nws tus kheej, tom qab ntawd hu ua WC) thiab cov hlau nplaum nyob ib puag ncig cov tawv tawv. cov khoom nplej (xws li cobalt, Co los yog npib tsib xee, Ni).
Raws li nrog tag nrho cov hlau tawv, lub zog WC theem muab cov tungsten carbide nws lub siab hardness, kub hardness thiab hnav tsis kam, thaum lub binder hlau ua kom zoo toughness ntawm cov khoom. Nrog rau qhov siab heev Young's modulus, carbide hardly deforms plastically thaum muaj kev ntxhov siab. Qhov kev sib xyaw ua ke ntawm cov khoom ib leeg ua rau tungsten carbides nthuav rau ntau yam kev siv. Txawm li cas los xij, qhov kev sib tw loj loj tshwm sim los ntawm qhov tseeb tias cov khoom tuaj yeem hloov pauv ntau yam ntawm cov nplai, uas yog vim li cas tungsten carbides tuaj yeem siv rau ntau qhov chaw ntawm daim ntawv thov - nrog kev cuam tshuam loj lossis khoov loads nrog rau cov khoom hnyav hnyav. .
Txog tam sim no feem ntau siv tawv hlau yog cov raws li WC thiab Co, cov tungsten carbide nyuaj hlau. Lawv tsis tsuas yog siv hauv kev txiav hlau (ISO daim ntawv thov pab pawg K), tab sis kuj tseem siv rau hauv cov khoom siv ntoo thiab pob zeb ua haujlwm nrog rau ntau yam hnav.
Ntxiv rau qhov yooj yim WC-Co carbides, kuj tseem muaj cov carbides sib xyaw uas tseem muaj titanium, tantalum lossis niobium carbides ntxiv rau WC. Lawv yog siv rau kev txiav steel (ISO daim ntawv thov pab pawg P) nrog rau cov hlau saws.
Tungsten carbide strips yog dav siv nyob rau hauv ceramics, luam ntawv machinery, hav zoov, roj hmab, lub teeb textile kev lag luam, luam yeeb machinery, ntim cov ntaub ntawv, cables, shipbuilding, metallurgical machinery, electronics, tawv thiab lwm yam teb, xws li round carbide hniav, granulator hniav, round. cov hniav, slitting hniav, ntawv hlau ua hniav thiab lwm yam txheem thiab tsis-standard rotary machinery hniav.
Cemented Tunsten Carbide Alloy Qib
Qib ISO | WC | Cov feem pua | Hardness | Daim ntawv thov |
K01 | Tshuav | 3 | 92 | Precision tho txawv, thiab lwm yam. |
K05/K10/20 | Tshuav | 6 | 89.5-91.5 | General Machining, thiab lwm yam. |
K30 | Tshuav | 8 | 88-89.5 | Cam khwb cia hlau, Machining, thiab lwm yam. |
K35 | Tshuav | 10 | 87-89 | Drilling, Machining, thiab lwm yam. |
-- | Tshuav | 15 | 87 | Hnav daim ntawv thov, thiab lwm yam. |
-- | Tshuav | 20 | 85.5 | Stamping me me qhov chaw, thiab lwm yam. |
Peb kuj muab WC-TiC-Co nrog cov ISO qib P10, P20, P30; thiab WC-TiC-TaC-Co carbide nrog cov ISO qib P25, P40, M10, M20, M30.
Specification rau Cemented Tungsten Carbide Sawb
Khoom npe | Qhov Loj (T x W x L, mm) | Thickness | Dav | Ntev |
Tungsten Carbide Sawb | 1 x (2~5) x L | Thickness Tsawg dua lossis sib npaug rau 7.0 | Dav Tsawg dua lossis sib npaug li 30 | Ntev<> |
1.5 x (2~10) x L | ||||
2.0 x (3.5~15) x L | ||||
2.5 x (2.5~20) x L | ||||
3.0 x (3.0~20) x L | ||||
3.5 x (3.5~25) x L | ||||
4.0 x (4.0~30) x L | ||||
5.0 x (4.0~40) x L | ||||
6.0 x (5.0~40) x L | ||||
(7~20) x (7~40) x L |
Cemented tungsten Carbide Sawb daim ntawv thov thiab lwm yam lag luam
● Ceramics
● Cov tshuab luam ntawv
● Hav zoov
● Roj hmab
● Lub teeb kev lag luam textile
● Cov tshuab luam yeeb
● Ntim cov ntaub ntawv
● Cables
● Shipbuilding
● Metallurgical machinery
● Electronics
● Tawv
● Cov hniav
● Kev Tshawb Fawb & Kev Tshawb Fawb
● Material Science
Chemical Identifiers
Linear Formula | WCCo |
MDL Number | TIAB SA 00064847 |
EC No. | N/A |
Beilstein/Reaxys No. | N/A |
Pubchem CID | N/A |
IUPAC npe | N/A |
SMILES | [W plus 4][C-4].[Co] |
InchI ID nkag mus | InChI=1S/C.Co.W/q-4;; ua plus4 |
InchI Key | UONOETXJSWQNOL-UHFFFAOYSA-N |
Tungsten Carbide / Cobalt Sawb Properties (Theoretical)
Compound Formula | CCOW |
Molecular Luj | 254.78 |
Qhov tshwm sim | Grey Rod |
Melting Point | N/A |
Boiling Point | N/A |
Qhov ntom | N/A |
Solubility hauv H2O | N/A |
Exact Mass | 254.783997 Ib |
Monoisotopic pawg | 254.884003 Nws |
Them nqi | N/A |
Tungsten Carbide / Cobalt Qws Health & Safety Information
Lus Cim | Ceeb toom |
Cov Lus Qhia Txog Hazard | H334-H317-H228 |
Hazard Codes | F, Xn |
Risk Codes | 11-42/43 |
Cov lus hais txog kev nyab xeeb | 22-23-24-37-45-60 |
RTECS Number | N/A |
Cov ntaub ntawv thauj mus los | UN3178 4.1/PG III |
WGK Germany | 3 |
GHS Daim duab | GHS02 Nplaim
GHS08 Health Hazard
GHS07 Exclamation Point
|
