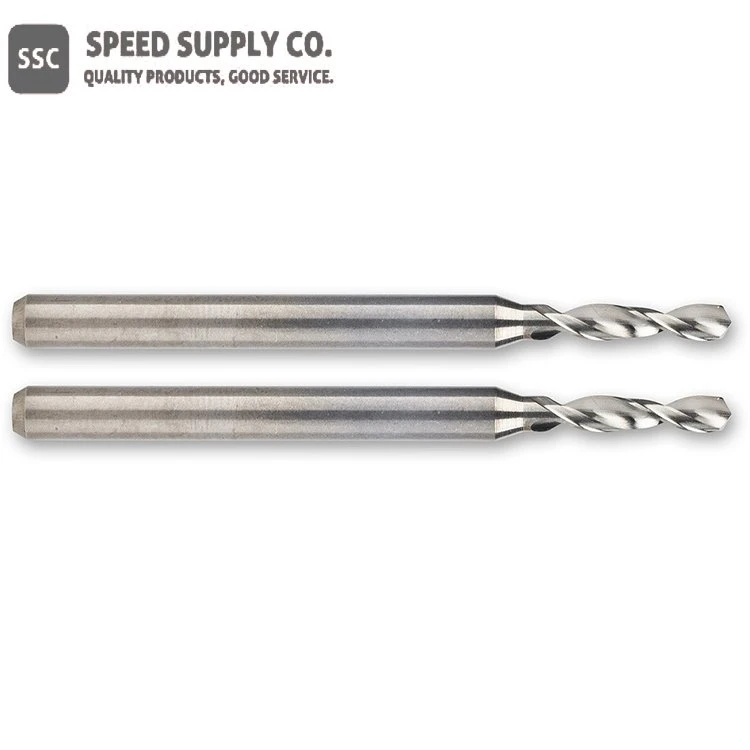

Tungsten Carbide Drill Bits

CAS Nr.: 12774-15-1

Muaj nuj nqi

CAS Nr:.	12774-15-1
Linear Formula:	WCCo
Khoom siv:	Tungsten Carbide / Cobalt Alloy
Cov duab:	Drill Bit
Loj:	Customize

Tungsten Carbide Drill Bits Description

Tungsten carbide yog cov khoom sib xyaw uas muaj cov lej sib npaug ntawm tungsten thiab carbon atoms. Daim ntawv tseem ceeb tshaj plaws ntawm tungsten carbide yog cov hmoov grey zoo, tab sis nws tuaj yeem raug nias rau hauv cov duab los ntawm cov txheej txheem hu ua sintering rau kev siv tshuab, txiav cov cuab yeej, abrasives, armor-piercing mos txwv, thiab cov hniav nyiaj hniav kub. Tungsten carbide xyaum yog qhov nyuaj heev. Lawv tuaj yeem siv rau mining, tunneling, thiab kev tsim kho kev lag luam.

Tungsten carbide laum cov khoom tseem hu ua tungsten carbide khoom. Lawv muaj qhov sib npaug ntawm ob qho tib si tungsten thiab carbide hauv matrix ntawm hlau cobalt. Qhov no feature sai ua rau lawv ib tug ntawm cov hardest hlau, ua rau lawv haum rau ib tug array ntawm kev siv. Lub Mohs scale ranks nws ntawm li 9-9.5, nrog ib tug hardness tus nqi ntawm 1600HV. Hlau tsuas yog ib feem kaum ntawm tus nqi ntawd. Vim li ntawd, lawv muaj peev xwm drilling los ntawm yuav luag txhua yam ntaub ntawv. Nws kuj txhais tau tias lawv muaj txiaj ntsig zoo hauv ntau qhov chaw, los ntawm kev tsuas mus rau roj thiab roj. Tab sis peb tseem mus txog qhov ntawd.

Qib ntawm WC-Co Cemented Tunsten Carbide Alloys

Qib ISO	WC	Cov feem pua	Hardness Ra	Daim ntawv thov
K01	Tshuav	3	92	Precision tho txawv, thiab lwm yam.
K05/K10/20	Tshuav	6	89.5-91.5	General Machining, thiab lwm yam.
K30	Tshuav	8	88-89.5	Cam khwb cia hlau, Machining, thiab lwm yam.
K35	Tshuav	10	87-89	Drilling, Machining, thiab lwm yam.
--	Tshuav	15	87	Hnav daim ntawv thov, thiab lwm yam.
--	Tshuav	20	85.5	Stamping me me qhov chaw, thiab lwm yam.

Peb kuj muab WC-TiC-Co nrog cov ISO qib P10, P20, P30; thiab WC-TiC-TaC-Co carbide nrog cov ISO qib P25, P40, M10, M20, M30.

Tungsten Carbide Drill Bits Specifications

PCB Drill Bits:

Qhov Loj:

Txoj kab uas hla (Φ, mm)	0.2 hli	0.25 hli	{0}}.30mm ~ 0.35mm	{0}.40mm ~ 0.45mm	{0}}.50mm ~ 0.55mm	{0}}.60mm ~ 0.65mm	0.70mm ~ 1.20mm	1.25mm ~ 3.175mm
Ntev (L, mm)	3.5mm ib	3.8mm ib	5.2mm ib	6.7mm ib	8.2mm ib	9.2mm ib	10.2 hli	12.2 hli

Qhov Drill Bits:

Qhov Loj:

Txoj kab uas hla (Φ, mm)	{0}.40mm ~ 0.45mm	{0}}.50mm ~ 0.55mm	{0}}.60mm ~ 0.65mm	0.70mm ~ 3.00mm
Ntev (L, mm)	5. 00mm	5.50mm	6.70mm ib	8.7mm ib

Step Drill Bits:

Qhov Loj:
Txoj kab uas hla (Φ) 3.2mm ~ 6.5mm, Ntev (L): 12.5mm

Tungsten Carbide Drill Bits Daim Ntawv Thov thiab Lwm Cov Kev Lag Luam

● Drilling ntawm pob zeb thiab cib

● Ua cov PCBs

● Txiav cov cuab yeej hauv kev kho mob

● Kev lag luam roj thiab roj

● Ntoo ua haujlwm

Chemical Identifiers

Linear Formula	WCCo
MDL Number	TIAB SA 00064847
EC No.	N/A
Beilstein/Reaxys No.	N/A
Pubchem CID	N/A
IUPAC npe	N/A
SMILES	[W plus 4][C-4].[Co]
InchI ID nkag mus	InChI=1S/C.Co.W/q-4;; ua plus4
InchI Key	UONOETXJSWQNOL-UHFFFAOYSA-N

Tungsten Carbide / Cobalt Sawb Properties (Theoretical)

Compound Formula	CCOW
Molecular Luj	254.78
Qhov tshwm sim	Grey Rod
Melting Point	N/A
Boiling Point	N/A
Qhov ntom	N/A
Solubility hauv H2O	N/A
Exact Mass	254.783997 Ib
Monoisotopic pawg	254.884003 Nws
Them nqi	N/A

Tungsten Carbide / Cobalt Qws Health & Safety Information

Lus Cim	Ceeb toom
Cov Lus Qhia Txog Hazard	H334-H317-H228
Hazard Codes	F, Xn
Risk Codes	11-42/43
Cov lus hais txog kev nyab xeeb	22-23-24-37-45-60
RTECS Number	N/A
Cov ntaub ntawv thauj mus los	UN3178 4.1/PG III
WGK Germany	3
GHS Daim duab	GHS02 Nplaim GHS08 Health Hazard GHS07 Exclamation Point
