CAS Nr:. | 7440-33-7 |
Linear Formula: | W |
Khoom siv: | Ntshiab tungsten |
Purity: | 99.95 feem pua, 99.99 feem pua, 99.999 feem pua |
Nto: | Sib tsoo, Tiav tiav, Ra Tsawg dua lossis sib npaug 3.2 |
Ua haujlwm kub: | Tsawg dua lossis sib npaug li 2400 degree |
Loj: | OD 10-620mm, WT 1.0-30mm, H 20-500mm |
Txheej txheem: | Sintering, Forging los yog machined los ntawm tungsten pas nrig |

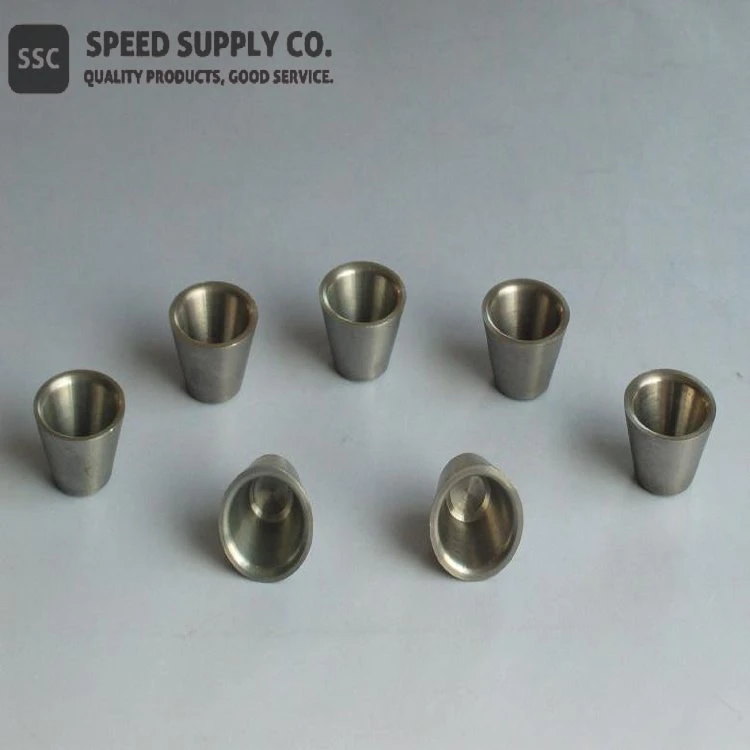

Tungsten Crucible Description
Tungsten crucible yog cov khoom siv tseem ceeb siv hauv cov ntawv thov hais txog kev loj hlob ntawm sapphire siv lead ua, lub tshuab nqus tsev vacuum thiab tsis tshua muaj lub ntiaj teb metallurgy. Peb cov tungsten crucibles raug cais raws li forged los yog pressed-sintered crucibles, nyob ntawm seb lawv yog fabricated li cas. Peb cov tungsten crucibles muaj qhov tshwj xeeb hloov pauv, du nto, siab purity, thiab muaj zog creep kuj.
Tungsten crucible yog dav siv nyob rau hauv technologies rau loj hlob monocrystals los ntawm molten corundum. Nws kuj yog siv nyob rau hauv electronics thiab technologies rau thermal vaporization - deposition ntawm ntau yam khoom. Tungsten crucible yog ib qho tseem ceeb hauv qhov cub kub kub ua rau nws lub siab melting point.
SSC tshwj xeeb hauv kev muab txhua yam ntawm tungsten crucibles xws li crucible nrog hau, round crucible, tapered crucible, customized square & rectangular crucible. Peb kuj muab cov khoom siv hlau ntshiab xws li lub tshuab cua sov, lub tshuab hluav taws xob hluav taws xob, cov ntawv, kev txhawb nqa, thiab lwm yam. Cov khoom no tuaj yeem siv rau hauv cov txheej txheem ntawm sapphire kev loj hlob thiab tsawg-lub ntiaj teb melting.
TshuajKev sib xyawntawmTungsten Crucible
W (>feem pua) | Cov ntsiab lus tshuaj (<%) | |||||||||||
99.999 | Fe | Ca | Ua | Sn | Al | Ni | Zn | Sb | Pt | K | Ta | Na |
0.0001 | 0.00005 | 0.000005 | 0.000005 | 0.00005 | 0.00001 | 0.00005 | 0.00005 | 0.00003 | 0.000005 | 0.0001 | 0.00005 | |
Cr | Pb | Raws li | Mg | Ti | Bi | Mo | Cd | Cu | Ba | Co | Mn | |
0.000005 | 0.00001 | 0.00005 | 0.00005 | 0.000005 | 0.00001 | 0.00001 | 0.000005 | 0.000007 | 0.00001 | 0.000005 | 0.000005 | |
99.99 | Fe | Ca | Ua | Sn | Al | Ni | Zn | Sb | Pt | K | O | Na |
0.0001 | 0.00045 | 0.0001 | 0.0001 | 0.0001 | 0.0001 | 0.0001 | 0.0001 | 0.0001 | 0.0005 | 0.0040 | 0.0009 | |
Cr | Pb | Raws li | Mg | Ti | Bi | Mo | Cd | Cu | Ba | Co | Mn | |
0.0001 | 0.0001 | 0.0001 | 0.0001 | 0.0001 | 0.0001 | 0.0002 | 0.0001 | 0.0001 | 0.0001 | 0.0001 | 0.0001 | |
99.95 | Fe | Ca | P | Sn | Al | Ni | N | Sb | Si | O | Pb | Raws li |
0.005 | 0.003 | 0.001 | 0.0001 | 0.002 | 0.003 | 0.003 | 0.001 | 0.003 | 0.003 | 0.0001 | 0.002 | |
Mg | C | Bi | Mo | |||||||||
0.002 | 0.005 | 0.0001 | 0.001 | |||||||||
Dimensions ntawm tungsten Crucibles
OD (mm) | Phab ntsa Thickness (mm) | Qhov siab (mm) |
10 ~ 30 | 1.0 ~ 3 | 20 ~ 50 |
30 ~ 50 | 2~ 10 | 20 ~ 100 |
50 ~ 100 | 3 ~ 15 | 30 ~ 150 |
100 ~ 150 | 3 ~ 15 | 30 ~ 500 |
150 ~ 200 | 5 ~ 20 | 30 ~ 500 |
200 ~ 300 | 8 ~ 20 | 30 ~ 500 |
300 ~ 400 | 8 ~ 30 | 40 ~ 500 |
400 ~ 450 | 8 ~ 30 | 50 ~ 500 |
450 ~ 620 | 8~ 30 | 50 ~ 500 |
Lwm qhov ntev tuaj yeem hloov kho, peb tuaj yeem muab cov duab plaub. | ||
Chemical Vapor Deposition (CVD) Tungsten Crucible
Lub tungsten crucible uas ua los ntawm CVD muaj qee cov yam ntxwv xws li siab ceev mus txog 98.5 feem pua ntawm cov theoretical ntom, siab purity ntawm 99.9999 feem pua, qhov tshwj xeeb microstructure ntawm columnar siv lead ua los yog multilayer columnar siv lead ua, thiab lwm yam.
Purity: 99.9999 feem pua
Outer Diameter: Tsawg dua los yog sib npaug li 200mm
Qhov siab: Tsawg dua los yog sib npaug li 500mm
Deposition thickness: Tsawg dua los yog sib npaug li 10mm
Kev siv tungsten Crucible thiab lwm yam kev lag luam
● Loj hlob monocrystals los ntawm molten corundum
● Electronics
● Thermal vaporization - deposition ntawm ntau yam khoom
● Ib feem ntawm lub qhov cub kub
● Sapphire siv lead ua loj hlob
● Tsis tshua muaj-lub ntiaj teb melting
● Kev Tshawb Fawb & Kev Tshawb Fawb
Chemical Identifiers
Linear Formula | W |
MDL Number | TIAB SA 00011461 |
EC No. | 231-143-9 |
Beilstein/Reaxys No. | N/A |
Pubchem CID | 23964 |
SMILES | [W] |
InchI ID nkag mus | InChI=1S/W |
InchI Key | WFKWXMTUELFFGS-UHFFFAOYSA-N |
Tungsten Crucibles Properties (Theoretical)
Molecular Luj | 183.85 |
Qhov tshwm sim | Nyiaj |
Melting Point | 3410 degree |
Boiling Point | 5900 degree |
Qhov ntom | 19.3g / cm33 |
Solubility hauv H2O | N/A |
Hluav taws xob Resistivity | 5.65 microhm-cm @ 27 degree |
Electronegativity | 1.7 Pauling |
Kub ntawm Fusion | 8.42 cal/gm os |
Kub ntawm Vaporization | 185 K-Cal / gm atom ntawm 5660 degree |
Poisson tus ratio | 0.28 |
Tshwj xeeb kub | 0.0317 Cal/g/K @ 25 degree |
Tensile zog | 750 MPa rau |
Thermal conductivity | 1.73 W/cm/K @ 298.2 K |
Thermal Expansion | (25 degree) 4.5 µm·m-1·K-1 |
Vickers Hardness | 3430 MPa rau |
Young's Modulus | 411 gps ua |
Tungsten Crucibles Health & Safety Information
Lus Cim | Kev phom sij |
Cov Lus Qhia Txog Hazard | H228-H315-H319 |
Hazard Codes | N/A |
Cov Lus Qhia Ua Ntej | P210-P305 ntxiv rau P351 ntxiv rau P338 |
Flash Point | Tsis siv tau |
Risk Codes | N/A |
Cov lus hais txog kev nyab xeeb | N/A |
RTECS Number | YOG 7175000 |
Cov ntaub ntawv thauj mus los | NEEJ |
WGK Germany | Nwg |
GHS Daim duab | GHS02 Nplaim
GHS07 Exclamation Point
|
