PRODUCTS
Muaj nuj nqi
CAS Nr:. | 64554-83-2 |
Linear Formula: | W-Cu |
Khoom siv: | Tungsten tooj liab alloy |
Cov duab: | Hluav taws xob |
Loj: | Customize |

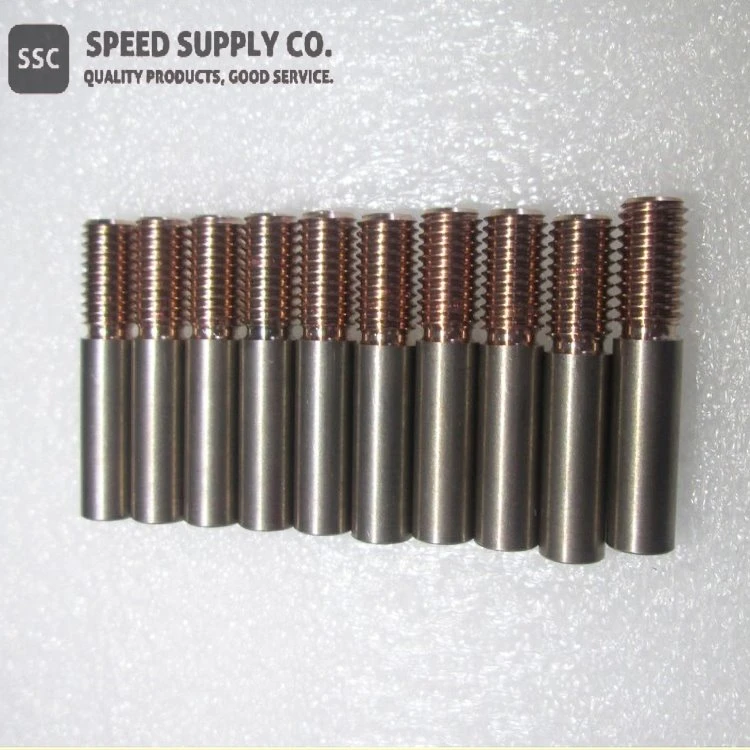

Tungsten tooj liab Electrode Description
Tungsten tooj liab yog dav siv nyob rau hauv daim ntawv thov xws li electrodes rau sinker hluav taws xob paug machining (EDM) thiab kuj welding. Tungsten tooj liab EDM electrode muaj peev xwm ua haujlwm nyuaj refractory alloys xws li titanium carbide thiab tungsten carbide. Tungsten tooj liab tuaj yeem ua tau zoo dua MMR (cov ntaub ntawv tshem tawm) ntawm qhov qis ntawm TWR (cov cuab yeej hnav tus nqi) piv rau tooj liab, graphite, thiab lwm yam khoom siv electrodes. Tsis tas li ntawd, tooj liab tungsten electrodes yuav dhau los ua qhov xav tau siv yog tias kev ua haujlwm machining yuav tsum muaj qhov tseeb siab hauv qhov loj me lossis ib qho kev sib txawv geometry.
Tungsten tooj liab EDM electrodes manifest zoo EDM kev ua tau zoo thaum machining carbide tungsten. Lawv yog cov zoo dua li tooj liab electrodes siv nyob rau hauv ntau micro EDM machining txheej txheem xws li lub qhov me me drilling rau cov ntaub ntawv tshwj xeeb. Infiltrated tungsten tooj liab, sintered thiab nias los ntawm hmoov hlau metallurgy, muaj ib qho microstructure. EDM cov khoom siv hluav taws xob nrog cov qauv zoo sib xws tuaj yeem ua tau zoo roughness ntawm qhov chaw ua haujlwm.
Cov ntsiab lus siab tungsten imparts siab melting point thiab ntom rau tooj liab tungsten EDM electrodes. Yog li, tungsten muab cov electrode ib qho khoom ua kom yaig tsis kam. Tooj liab tungsten EDM electrode 20 feem pua -40 feem pua tooj liab cov ntsiab lus yog lub luag hauj lwm rau nws zoo heev conductivity. Kev ua haujlwm siab hluav taws xob thiab thermal ua haujlwm yog qhov tseem ceeb rau kev tswj xyuas cov khoom siv hluav taws xob tshem tawm, uas txiav txim siab nws txoj kev txiav ceev.
Tungsten tooj liab yog ib qho kev txuag nqi thiab kev xaiv zoo nrog rau kev kov yeej cov teeb meem machining tshwm sim los ntawm qhov kub siab melting, thiab siab thermal shock thiab abrasion tsis kam. Tungsten tooj liab composites kuj yog ib qho kev nyiam ntawm cov khoom siv hauv cov vuam electrodes. Qhov no yog ob qho tib si vim qhov zoo tshaj plaws conductivity ntawm tooj liab thiab siab melting point thiab corrosion kuj ntawm tungsten.
Specification ntawm Tungsten Copper Electrode
Yam khoom# | Kev sib xyaw | Qhov ceev (g / cm3) | Hardness (HRB) | Hluav taws xob conductivity (%) IACS |
30w70 qw | W: 30 feem pua, Cu: 70 feem pua | 10.32 | 42 | 89 |
35w65 qw | W: 35 feem pua, Cu: 65 feem pua | 10.66 | 50 | 82 |
40w60 qw | W: 40 feem pua, Cu: 60 feem pua | 11.02 | 55 | 77 |
45w55 qw | W: 45 feem pua, Cu: 55 feem pua | 11.42 | 61 | 73 |
40w60 qw | W: 50 feem pua, Cu: 50 feem pua | 11.9 | 65 | 54 |
55w45 qw | W: 55 feem pua, Cu: 45 feem pua | 12.5 | 70 | 49 |
60w40 qw | W: 60 feem pua, Cu: 40 feem pua | 13.3 | 76 | 47 |
70w30 qw | W: 70 feem pua, Cu: 30 feem pua | 13.9 | 82 | 44 |
75w25 qw | W: 75 feem pua, Cu: 25 feem pua | 14.5 | 88 | 42 |
80w20 qw | W: 80 feem pua, Cu: 20 feem pua | 15.2 | 100 | 38 |
85w15 qw | W: 85 feem pua, Cu: 15 feem pua | 16.1 | 240 HB | 33 |
90w10 qw | W: 90 feem pua, Cu: 10 feem pua | 16.9 | 260 HB | 28 |
Tungsten Copper Electrode Daim Ntawv Thov thiab Lwm Yam Kev Lag Luam
● High-speed welding ntawm hlau harnesses siv nyob rau hauv motors, tsheb, thiab nyob qhov twg complex los yog yooj yim hlau harnesses yog siv.
● Kab hloov rau cov roj teeb pob
● Cov khoom siv hluav taws xob rau kev tsim cov kab hluav taws xob thiab cov hluav taws xob hloov hluav taws xob
● Automotive
Chemical Identifiers
Linear Formula | WCu |
MDL Number | N/A |
EC No. | N/A |
Beilstein/Reaxys No. | N/A |
Pubchem CID | 57449491 |
IUPAC npe | tooj liab; tungsten |
SMILES | [Cu] [W |
InchI ID nkag mus | InChI=1S/Cu.W |
InchI Key | SBYXRAKIOMOBFF-UHFFFAOYSA-N |
Tungsten tooj liab Electrodes Properties (Theoretical)
Compound Formula | WCu |
Molecular Luj | 247.39 |
Qhov tshwm sim | Khoom |
Melting Point | N/A |
Boiling Point | N/A |
Qhov ntom | 13-16 g/cm3 |
Solubility hauv H2O | N/A |
Exact Mass | 246.880529 |
Monoisotopic pawg | 246.880529 |
Cim npe nrov: tungsten tooj liab electrode, Tuam Tshoj, lwm tus neeg, yuav, muag, ua nyob rau hauv Suav teb
