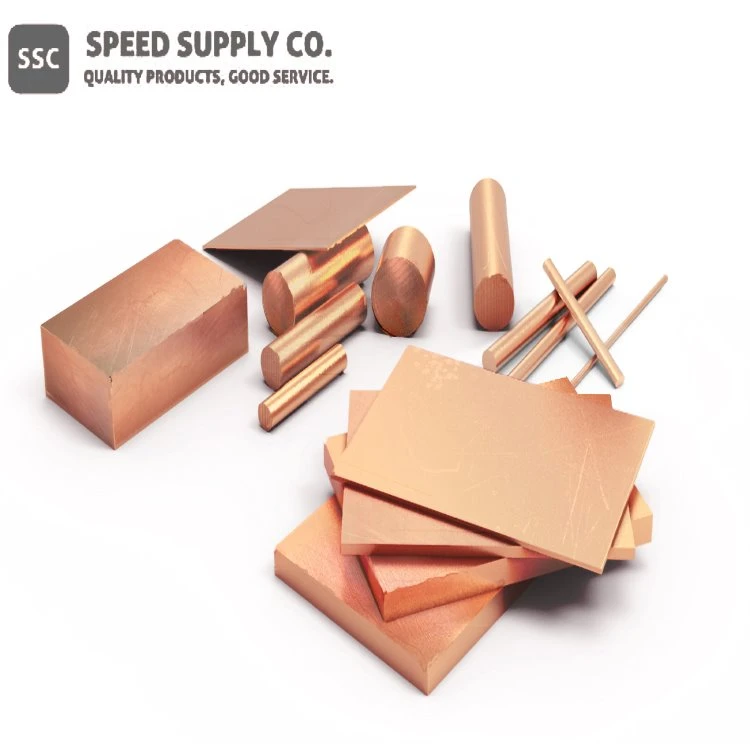

Tungsten tooj liab alloy

CAS Nr.: 64554-83-2

Muaj nuj nqi

CAS Nr:.	64554-83-2
Linear Formula:	W-Cu
Khoom siv:	W50Cu, W55Cu, W60Cu, W65Cu, W70Cu, W75Cu, W80Cu, W85Cu, W90Cu
Cov duab:	Qws, Phaj, Cube, Nplhaib, Thaiv, Electrode thiab lwm yam Customized Parts
Loj:	Customize

Tungsten Copper Alloy Description

Tungsten tooj liab yog cov khoom siv hlau refractory muaj zog uas tsim los ntawm cov txheej txheem tswj nruj nruj nrog kev nias, sintering thiab infiltrating nrog tooj liab. Nws yog cov resistant rau tshav kub, hluav taws xob arc, hnav thiab deformation ntawm kub kub vuam, nyem taub qab thiab qhov chaw vuam. Nws kuj muaj cov hluav taws xob zoo heev thiab thermal conductivity. Cov ntsiab lus tooj liab ntawm feem ntau siv tungsten tooj liab alloy yog 10 feem pua rau 50 feem pua. Cov tungsten tooj liab alloy muaj ntau yam kev siv kub-kub xws li arc ablation resistant high-voltage hluav taws xob hloov, foob pob hluav taws nozzle caj pas hauv ob sab phlu thiab tail rudders.

Peb kuj muab cov khoom siv tooj liab tungsten carbide.

Qib ntawm Tungsten Copper Alloy

CuW50 thiab CuW55, cov khoom sib xyaw no muaj cov ntsiab lus tungsten qis tshaj plaws. Lawv yog ob qho tib si zoo hloov thiab cov ntaub ntawv tiv tauj rau cov khoom siv roj puv. CuW55 kuj tseem siv rau kev sib cuag hauv cov roj hluav taws xob hluav taws xob thiab cov npoo ntawm cov khoom xaiv thiab cov hloov pauv hauv cov hloov pauv hloov pauv hloov pauv.

CuW65 thiab CuW70, cov khoom sib xyaw no yog siv los ua cov ntaub ntawv sib txuas hauv cov ntawv thov hnyav xws li roj, roj thiab qee qhov hluav taws xob hluav taws xob. Lawv kuj tau siv rau arcing npoo ntawm cov selectors thiab thim rov qab hloov cov hniav.

CuW75 thiab CuW80, cov khoom sib xyaw no yog siv los ua cov ntaub ntawv tiv tauj hauv cov xwm txheej hnyav. Cov ntawv thov suav nrog kev sib cuag arcing nyob rau hauv cov roj thiab roj Circuit Court breakers, hu thiab transformer kais changers, arcing daim hlau thiab arc runners nyob rau hauv lub hwj chim switching khoom.

CuW85 thiab CuW90, cov khoom sib xyaw no muaj cov ntsiab lus tungsten siab tshaj plaws. Lawv yog siv los ua cov ntaub ntawv tiv tauj uas tiv thaiv kev sib cuag welding, sticking thiab arc yaig yog qhov tseem ceeb. Lawv kuj muab cov cua sov txaus siab thiab muaj peev xwm cuam tshuam tam sim no. Cov ntawv thov raug siv yog lub tshuab nqus tsev hloov hluav taws xob thiab lub zog hluav taws xob siab hluav taws xob electrodes, thiab lwm yam.

Specification ntawm tungsten tooj liab alloy

Composites	Nominal Composition (%) Qhov hnyav	Qhov ntom (g / cm3, ntau dua lossis sib npaug)	Hluav taws xob Resistivity (20 degree, µΩ·cm, Tsawg dua lossis sib npaug)	Hluav taws xob conductivity (IACS feem pua, Ntau dua lossis sib npaug)	Hardness (Ntau dua lossis sib npaug) Brinell Hardness		Khoov zog
Composites	Nominal Composition (%) Qhov hnyav	Qhov ntom (g / cm3, ntau dua lossis sib npaug)			Mpa	Kgf/mm2	Mpa	Kgf/mm2
CuW 50	50% tooj liab 50 feem pua tungsten	11.85	3.2	54	1128	115	---	---
qw 55	45% tooj liab 55 feem pua tungsten	12.3	3.5	49	1226	125	---	---
qw 60	40% tooj liab 60 feem pua tungsten	12.75	3.7	47	1373	140	---	---
qw 65	35% tooj liab 65 feem pua tungsten	13.3	3.9	44	1520	155	---	---
qw 70	30% tooj liab 70 feem pua tungsten	13.8	4.1	42	1716	175	667	68
qw 75	25% tooj liab 75 feem pua tungsten	14.5	4.5	38	1912	195	706	72
qw 80	20% tooj liab 80 feem pua tungsten	15.15	5.0	34	2158	220	736	75
qw 85	15% tooj liab 85 feem pua tungsten	15.9	5.7	30	2354	240	765	78
qw 90	10% tooj liab 90 feem pua tungsten	16.75	6.5	27	2550	260	804	82

Tungsten Copper Khoom Specification

Hom	Ntev (mm)	Dav (mm)	Thickness (hli)	Txoj kab uas hla (mm)
Qws	2 ~ 300	---	---	2 ~ 320
Phaj	10 ~ 300	10 ~ 300	2 ~ 200	---
Lwm qhov chaw	Lub voos xwmfab, nplhaib, thaiv, electrode thiab lwm qhov chaw customized

Tungsten Copper Alloy Daim Ntawv Thov thiab Lwm Yam Kev Lag Luam

● Hluav taws xob tiv tauj

● Cua sov dab dej

● Electrodes rau EDM thiab ECM

● Kev Tshawb Fawb & Kev Tshawb Fawb

Chemical Identifiers

Linear Formula	WCu
MDL Number	N/A
EC No.	N/A
Beilstein/Reaxys No.	N/A
Pubchem CID	57449491
IUPAC npe	tooj liab; tungsten
SMILES	[Cu] [W
InchI ID nkag mus	InChI=1S/Cu.W
InchI Key	SBYXRAKIOMOBFF-UHFFFAOYSA-N

Tungsten tooj liab Alloy Properties (Theoretical)

Compound Formula	WCu
Molecular Luj	247.39
Qhov tshwm sim	Qos yaj ywm, pieces, thiab granules
Melting Point	N/A
Boiling Point	N/A
Qhov ntom	13-16 g/cm³
Solubility hauv H2O	N/A
Exact Mass	246.880529
Monoisotopic pawg	246.880529
