Muaj nuj nqi
Khoom siv: | Pure W thiab Doped W |
Purity: | 99.95 feem pua, 99.99 feem pua, 99.999 feem pua |
Txheej txheem: | Extruding, Forging, Rolling, Machining thiab Sintering |
Loj: | Raws li kev xav tau |

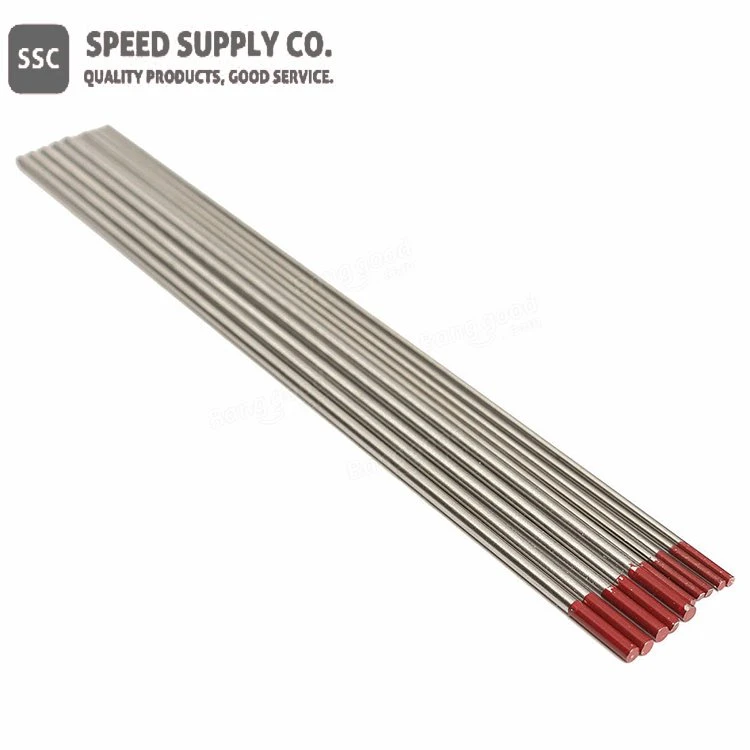

Tungsten Electrode Description
Tungsten inert gas (TIG) welding yog hom vuam nrov uas siv tungsten electrodes los koom nrog ntau yam hlau. Lub tungsten electrode yog ib qho tseem ceeb hauv cov txheej txheem, raws li nws channels cov tam sim no yuav tsum tau tsim lub arc. Cov tungsten electrodes tuaj yeem raug alloyed nrog ntau yam hlau. Ntau hom thiab qhov ntau thiab tsawg ntawm electrodes yog siv rau ntau hom welds thiab cov ntaub ntawv, thiab cov welders tsim cov kev nyiam raws li vuam style thiab qhov project. Qee hom electrode ua tau zoo dua nrog alternating tam sim no (AC) as opposed to direct current (DC).
Tungsten lub siab melting point ua rau nws zoo tagnrho cov khoom siv electrodes. SSC tshwj xeeb hauv kev tsim cov purity siab zoo zoo li cov ntshiab tungsten electrodes thiab lwm yam tungsten electrodes.
Muaj ntau hom tungsten electrode muaj nyob ntawm SSC raws li qhia hauv qab no.
● Ntshiab Tungsten Electrode
Ntshiab tungsten electrode muaj tsawg kawg yog 99.5 feem pua tungsten thiab xa tag nrho cov khoom sib xyaw nrog tungsten uas suav nrog kev ua tau zoo, ua haujlwm ntev, thiab kev ua haujlwm. Nws yog qhov zoo tshaj plaws rau cov haujlwm vuam uas muaj magnesium alloys lossis aluminium alloys.
● Thoriated Tungsten Electrode
Ntev ntev thiab ruaj khov heev, cov electrodes no yog ib qho tseem ceeb hauv DC vuam daim ntawv thov. Lawv yog cov zoo tshaj plaws rau tooj liab alloys, npib tsib xee alloys, titanium alloys, thiab tsis-corroding steels.
● Ceriated Tungsten Electrode
Ceriated tungsten electrodes yog nrov vim lawv qhov yooj yim ntawm kev tawm tsam arc nrog qis amperages, thiab lawv qhov kev ua tau zoo tshaj plaws txog DC vuam daim ntawv thov. Lawv ua tau zoo tshaj plaws nrog titanium alloys, tooj liab alloys, magnesium alloys, aluminium alloys, nickel alloys, tsis-corroding steels, thiab low-alloyed steels.
● Lanthanated Tungsten Electrode
Lanthanated electrodes yog nrov vim qhov yooj yim txheeb ze ntawm kev tawm tsam arc thiab qis amperage xav tau. Lawv ua tau zoo heev nyob rau hauv ob qho tib si AC & DC daim ntawv thov thiab yog ib tug nrov siv electrode. Lawv muaj txiaj ntsig zoo rau vuam aluminium alloys, magnesium alloys, npib tsib xee alloys, tooj liab alloys, titanium alloys, qis-alloyed steels, thiab tsis-corroding steels.
Lanthanated electrodes nrog tsawg dua lanthanum cov ntsiab lus yog qhov zoo tshaj plaws siv hauv DC daim ntawv thov. Lawv yog cov zoo tshaj plaws rau welds nrog titanium alloys, tooj liab alloys, npib tsib xee alloys, thiab tsis-corroding hlau.
● Yttriated Tungsten Electrode
Yittriated tungsten electrode feem ntau yog siv rau hauv kev ua tub rog thiab kev lag luam aviation. Nws arc beam yog slim thiab compressive nyob rau hauv nruab nrab thiab siab tam sim no qhov teeb meem thiab nws welding nkag mus rau qhov siab tshaj plaws.
● Zirconated Tungsten Electrode
Zirconiaated tungsten electrodes tuav ntau dua amperage thiab ua haujlwm zoo nrog ob qho tib si transformer thiab inverter fais fab mov, ua rau lawv muaj kev xaiv zoo tshaj plaws rau magnesium thiab aluminium alloys.
● Composite Electrode
Nws yog qhov zoo tshaj plaws siv thaum vuam Aluminium alloys, magnesium alloys, titanium alloys, nickel alloys, tooj liab alloys, low-alloyed steels, thiab non-corrosive steels.
Specification ntawm Tungsten Electrode
Yam khoom npe | Ntxiv impurity (%) | Lwm yam impurities (%) | Fais fab tuag (eV) | Xim code |
Ntshiab Tungsten Electrode | --- | <> | 4.5e vwm | Ntsuab |
Thoriated Tungsten Electrode | ThO2 (0.90 feem pua ~ 1.20 feem pua) | <> | 2. 0eV ~ 3.0eV | Daj |
ThO2 (1.80% ~ 2.20%) | <> | 2. 0eV ~ 3.0eV | Liab | |
ThO2 (2.80% ~ 3.20%) | <> | 2. 0eV ~ 3.0eV | Violet | |
ThO2 (3.80% ~ 4.20%) | <> | 2. 0eV ~ 3.0eV | Txiv kab ntxwv | |
Ceriated Tungsten Electrode | CeO2 (1.80% ~ 2.20%) | <> | 2.7eV ~ 2.8eV | Grey |
Lanthanated Tungsten Electrode | La2O3 (0.80 feem pua ~ 1.20 feem pua) | <> | 2.8eV ~ 3.2eV | Dub |
La2O3 (1.30 feem pua ~ 1.70 feem pua) | <> | 2.8eV ~ 3. 0eV | Golden | |
La2O3 (1.80 feem pua ~ 2.20 feem pua) | <> | 2.6eV ~ 2.7eV | Azure | |
Tungsten Electrode yog tsim los ntawm tungsten electrode | Y2O3 (1.80 feem pua ~ 2.20 feem pua) | <> | 2. 0eV ~ 3.9eV | Xiav |
Zirconated Tungsten Electrode | ZrO2 (0.20 ~ 0.40 feem pua) | <> | 2.6eV ~ 2.7eV | Xim av |
ZrO2 (0.70 feem pua ~ 0.90 feem pua ) | <> | 2.6eV ~ 2.7eV | Dawb | |
Composite electrode | CeO2, ThO2, La2O3, ZrO2, Y2O3 (1.50 feem pua ~ 3.00 feem pua ) | <> | Nyaj ntsuab |
Kev siv tungsten electrode thiab lwm yam kev lag luam
● Tungsten Inert Gas (TIG) Vuam
