PRODUCTS
Muaj nuj nqi
Linear Formula: | W-Ag |
Khoom siv: | W50Ag, W55Ag, W60Ag, W65Ag, W70Ag, W75Ag, W80Ag |
Cov duab: | Qws, Phaj, Cube, Nplhaib, Thaiv, Electrode thiab lwm yam Customized Parts |
Loj: | Customize |

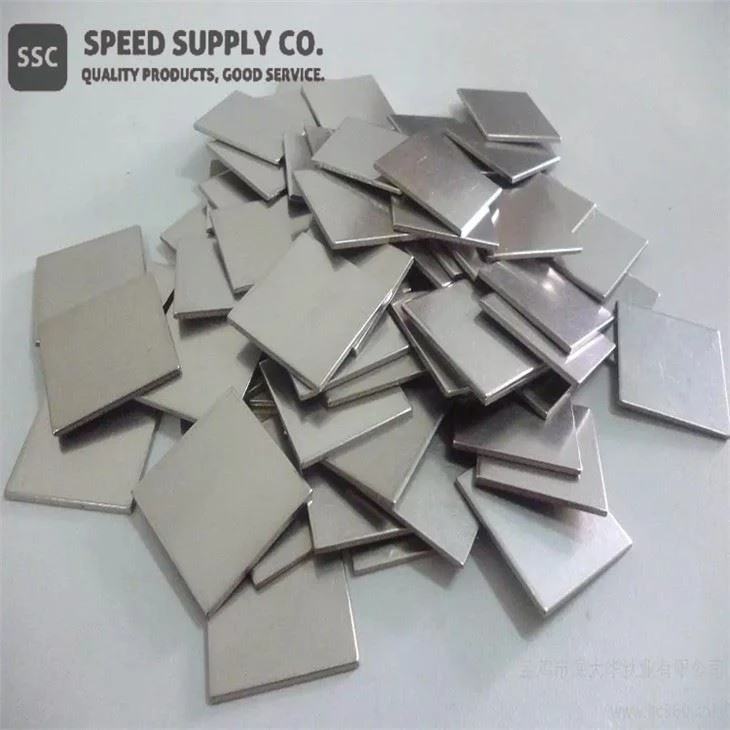

Tungsten Silver Alloy Description
W-Ag alloy yog cov hlau uas muaj tungsten thiab nyiaj, nrog cov ntsiab lus nyiaj ntawm 30 feem pua rau 70 feem pua.
Cov khoom ntawm tungsten nyiaj muaj feem xyuam rau cov nyiaj-rau-Tungsten piv. Yog tias cov ntsiab lus tungsten txhim kho, qhov hluav taws xob arc thiab hnav tsis kam yuav nce ntxiv thaum lub thermal thiab hluav taws xob conductivity, ntawm qhov tsis sib xws, yuav txo. Vim muaj cov khoom tshwj xeeb, tungsten silver alloy yog dav siv nyob rau hauv qhov chaw ua ke ntawm cov hluav taws xob zoo thiab / lossis thermal conductivity thiab thermal deformation tsawg yog tsim nyog.
Tungsten silver alloy tuaj yeem siv los ua lub caj pas nozzle liner ntawm cov foob pob hluav taws. Hauv cov hluav taws xob hloov hluav taws xob, tungsten silver alloys tau siv ntau dua hauv cov hluav taws xob hluav taws xob qis qis, tsis siv neeg hloov pauv, contactors, thiab lwm yam, qhov twg zoo oxidation kuj, hluav taws xob ntau dua thiab thermal conductivity, qhov sib cuag me me, thiab yuav tsum tau qhib thiab kaw ua haujlwm.
Tungsten silver alloy yog dav siv nyob rau hauv kub kub resistant cov ntaub ntawv, hluav taws xob alloys rau high voltage switches, hluav taws xob machining electrodes, microelectronics cov ntaub ntawv, raws li cov khoom thiab cov khoom yog dav siv nyob rau hauv aerospace, aviation, electronics, hwj chim, metallurgy, machinery, cov khoom ua si thiab lwm yam kev lag luam.
Peb kuj muab cov khoom siv nyiaj tungsten carbide.
Qib ntawm tungsten Silver Alloy
AgW75: Cov khoom sib xyaw no yog ib qho ntawm cov ntsiab lus siab refractory tungsten nyiaj cov ntaub ntawv ua los ntawm xovxwm-sinter-infiltration thiab ib txwm muaj siab tiv thaiv arc yaig. Nws feem ntau yog siv los ua arcing kev sib cuag nyob rau hauv cov huab cua loj thiab roj Circuit Court breakers, kab disconnects, rov kaw, thiab nyob rau hauv high tam sim no keyboards thiab hu. Kev tiv thaiv kev tiv thaiv tsis tshua muaj txaus los tiv thaiv cov hluav taws xob ntau dua tam sim no nqa kev sib cuag los ntawm kev puas tsuaj arc. Nws tsis kam mus rau vuam ua rau nws muaj kev sib txuas zoo rau kev tiv thaiv bi-hlau hauv Circuit Court breakers.
AgW70 thiab AgW50: Cov khoom sib xyaw no muaj nyiaj ntau dua AgW75, uas muab cov khoom siv hluav taws xob ntau dua thiab qis dua kev tiv thaiv. Lawv feem ntau siv nyob rau hauv ntau yam ntawm Circuit Court breakers. Hauv daim ntawv thov no, ib khub ntawm kev sib cuag muab ob txoj haujlwm ntawm kev nqa tam sim no yam tsis muaj cua sov, thiab cuam tshuam qhov tam sim no yam tsis muaj kev yaig ntau dhau. Lawv kuj tau siv nyob rau hauv kev sib cuag siab tam sim no qhov twg yuav tsum tau tiv thaiv kev sib cuag vuam thiab arc yaig. Nyob rau hauv ntau yam DC daim ntawv thov, lawv muaj kev tiv thaiv rau hlau hloov.
AgW50: Cov khoom sib xyaw no muaj cov ntsiab lus nyiaj siab tshaj plaws ntawm cov xovxwm-sinter-repress tungsten nyiaj cov ntaub ntawv. Nws pom zoo tiv thaiv kev sib cuag vuam thiab yog siv rau tam sim no nqa kev sib cuag nyob rau hauv lub hwj chim Circuit Court breakers uas ntsib high momentary tam sim no.
Tungsten Silver Specification
Composites | Nominal Composition | Qhov ntom | Hluav taws xob Resistivity | Hluav taws xob conductivity | Hardness | Khoov zog |
AgW 50 | 50 Nyiaj | 13.15 | 3.0 | 57 | 105 | --- |
AgW 55 | 45 Nyiaj | 13.55 | 3.2 | 54 | 115 | --- |
AgW 60 | 40 Nyiaj | 14.00 | 3.4 | 51 | 125 | --- |
AgW 65 | 35 Nyiaj | 14.50 | 3.6 | 48 | 135 | --- |
AgW 70 | 30 Nyiaj | 14.90 | 3.8 | 45 | 150 | 657 |
AgW 75 | 25 Nyiaj | 15.40 | 4.2 | 41 | 165 | 686 |
AgW 80 | 20 Nyiaj | 16.10 | 4.6 | 37 | 180 | 726 |
Tungsten Silver Khoom Specifications
Hom | Ntev (mm) | Dav (mm) | Thickness (hli) | Txoj kab uas hla (mm) |
Qws | 2 ~ 300 | --- | --- | 2 ~ 320 |
Phaj | 10 ~ 300 | 10 ~ 300 | 2 ~ 200 | --- |
Lwm qhov chaw | Lub voos xwmfab, nplhaib, thaiv, electrode thiab lwm qhov chaw customized | |||
Tungsten Silver Alloy daim ntawv thov thiab lwm yam lag luam
● Nozzle caj pas liner ntawm cov khoom foob pob hluav taws
● Hluav taws xob hloov
● Tsawg voltage Circuit Court breakers
● Tsis siv neeg hloov pauv
● Contactors
● Cov khoom siv tiv taus kub kub
● Hluav taws xob alloys rau high voltage switches
● Hluav taws xob machining electrodes
● Cov ntaub ntawv microelectronics
● Aerospace
● Aviation
● Electronics
● Lub zog
● Metallurgy
● Machinery
● Hluav taws xob
● Cov khoom siv ncaws pob
● Kev Tshawb Fawb & Kev Tshawb Fawb
Chemical Identifiers
Linear Formula | W-Ag |
MDL Number | N/A |
EC No. | N/A |
Pubchem CID | 57470393 |
IUPAC npe | nyiaj; tungsten |
SMILES | [Ag] [W] |
InchI ID nkag mus | InChI=1S/Ag.W |
InchI Key | ITZSSQVGDYUHQM-UHFFFAOYSA-N |
Tungsten Nyiaj Alloy Properties (Theoretical)
Compound Formula | AgW |
Qhov tshwm sim | Silvery-grey metallic khoom nyob rau hauv ntau yam ntaub ntawv xws li nplooj ntawv thiab daim hlau, tuav, discs, foils, rods, raj, ingots |
Melting Point | Nws txawv ntawm qhov muaj pes tsawg leeg |
Boiling Point | N/A |
Qhov ntom | Nws txawv ntawm qhov muaj pes tsawg leeg |
Solubility hauv H2O | N/A |
