Muaj nuj nqi
Linear Formula: | W-Ni-Fe |
Khoom siv: | W-90 feem pua Ni-7 feem pua Fe-3 feem pua W-92.5 feem pua Ni-5.25 feem pua Fe-2.25 feem pua W-95 feem pua Ni-3.5 feem pua Fe-1.5 feem pua W-97 feem pua Ni-2.1 feem pua Fe-0.9 feem pua |
Txuj: | ASTM B777, MIL-T -21014 |
Cov duab: | Qws, Pob, Phaj, thiab lwm yam duab raws li qhov xav tau |
Loj: | Customize |

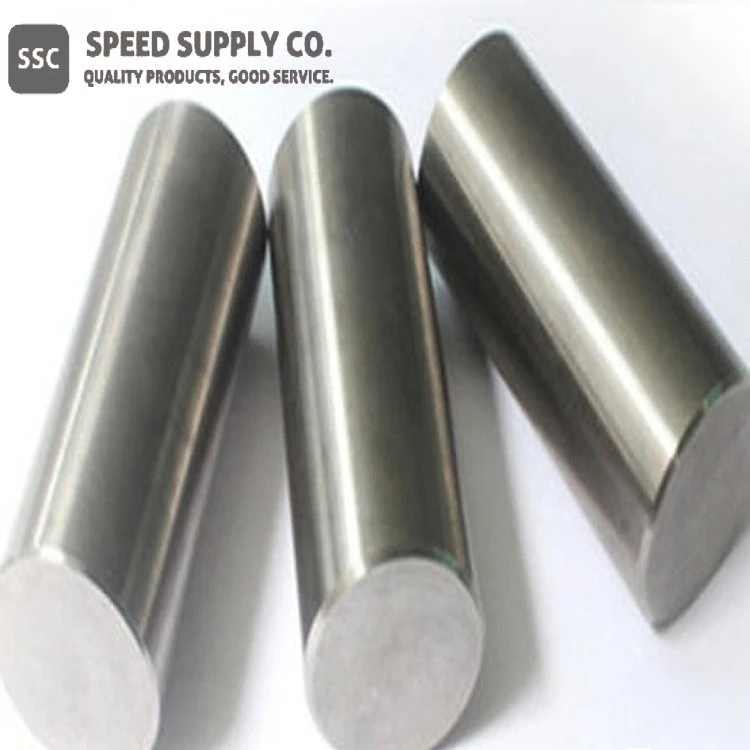

Tungsten Nickel Hlau Alloy Description
Tungsten npib tsib xee hlau muaj 1 feem pua rau 3 feem pua ntawm cov hlau thiab 1 feem pua rau 7 feem pua ntawm cov npib tsib xee sib xyaw ntawm qhov sib piv ntawm FeNi 1: 1 txog 1: 4. Qhov 1 feem pua mus rau 3 feem pua ntawm cov hlau ntxiv yog lub luag haujlwm rau qhov sib txawv tseem ceeb hauv tungsten alloys uas muaj cov khoom siv nickel hlau, piv rau tungsten alloys uas muaj nickel tooj liab. Ua ntej, tungsten nickel hlau yog ferromagnetic khoom vim yog hlau. Hlau imparts lwm yam khoom tshwj xeeb rau tungsten npib tsib xee hlau, xws li nws qhov sib piv dua ntom ntom, melting point, ductility, thiab lub zog. Los ntawm kev tsim txiaj ntawm cov khoom zoo heev no, tungsten npib tsib xee hlau alloys muaj lub zog kub zoo dua thiab siab dua qhov txias-ua haujlwm deformation npaum li tungsten npib tsib xee tooj liab. Tag nrho cov no cia nws siv nyob rau ntau qhov kev lag luam nrog rau cov kis las, thiab lwm yam xws li kev sib dhos ua kom sib dhos, ballation, cam khwb cia, thiab hluav taws xob shielding.
Tungsten npib tsib xee hlau alloys muaj nyob rau hauv ntau yam machined duab xws li bar, ingot, ribbon, hlau, txhaj tshuaj, ntawv, thiab ntawv ci, nyob rau hauv ntau qhov ntev. Peb kuj tuaj yeem tsim cov ntaub ntawv rau kev cai tshwj xeeb los ntawm kev thov.
Specification rau Tungsten Nickel Hlau Alloy
ASTM B 777-15 | Sib nqus | Sib nqus | Sib nqus | Sib nqus |
TIAB SA 7725E | Hom 2 | Hom 2 | Hom 2 | Hom 2 |
MIL-T-21014 Rev D | Chav kawm 1 | Chav kawm 2 | Chav kawm 3 | Chav Kawm 4 |
SAE-AMS-T -21014 | Chav kawm 1 | Chav kawm 2 | Chav kawm 3 | Chav Kawm 4 |
Tungsten (wt feem pua) | 90 | 92.5 | 95 | 97 |
Binder | Ni/Fe | Ni/Fe | Ni/Fe | Ni/Fe |
g/cm3 | 17.10 | 17.50 | 18.10 | 18.50 |
lb/ib 3 | 0.62 | 0.63 | 0.65 | 0.67 |
Hardness, HRC | 27 | 24 | 24 | 25 |
Mpa | 645 | 645 | 660 | 660 |
ksi ua | 95 | 95 | 95 | 95 |
Mpa | 875 | 900 | 910 | 915 |
ksi ua | 126 | 130 | 131 | 132 |
Lub cev thiab cov cuab yeej cuab tam ntawm Tungsten Nickel Hlau Alloy
Alloy Hom (wt feem pua) | 90W-7Ni-3Fe | 93W-5Ni-2Fe | 95W-3.5Ni-1.5Fe | 97W-2.1Ni-0.9Fe |
MIL-T -21014 | Chav kawm 1 | -- | Chav kawm 3 | Chav Kawm 4 |
SAE-AMS-T -21014 | Chav kawm 1 | -- | Chav kawm 3 | Chav Kawm 4 |
ASTM B 777-87 | Chav kawm 1 | -- | Chav kawm 3 | Chav Kawm 4 |
Hom ntom ntom | 17.1 | 17.6 | 18 | 18.5 |
Hom Hardness RC | 25 | 26 | 27 | 28 |
Yield zog Min | 650~850 | 650~850 | 600~750 | 620~670 |
Elongation feem pua | 20~25 | 15~20 | 8~13 | 2~5 |
Dimensions ntawm Zoo li W-Ni-Fe Alloy khoom
Khoom | Ntev (mm) | Dav (mm) | Thickness (hli) | Txoj kab uas hla (mm) |
W hlau alloy | 2 ~ 600 | --- | --- | 2 ~ 320 |
W alloy pob | --- | --- | --- | 1.5 ~ 200 |
W alloy phaj | 10 ~ 600 | 10 ~ 300 | 2 ~ 200 | --- |
Lwm hom | Lub voos xwmfab, nplhaib, thaiv thiab lwm yam khoom tsim kho | |||
Tungsten Nickel Iron Alloy Daim Ntawv Thov thiab Lwm Yam Kev Lag Luam
● Counterweight
● Bucking bar
● Ntsuas rauj
● Gyroscope rotor
● Qhia
● Kev poob siab absorber
● Tuag-casting pwm
● Cov cuab yeej tuav, tho txawv bar
● Tsis siv neeg saib rauj
● Cov riam phom zoo nrog cov cuab yeej cuab yeej cuab tam
● Cov khoom siv hluav taws xob nrog lub taub hau riveting thiab hloov kev sib cuag
● Anti-ray shielding Cheebtsam
● Kev Tshawb Fawb & Kev Tshawb Fawb
● Khoom siv
● Aerospace
● Tub rog
Chemical Identifiers
Linear Formula | W-Ni-Fe |
MDL Number | N/A |
EC No. | N/A |
Pubchem CID | 57448909 |
IUPAC npe | hlau; npib tsib xee; tungsten |
SMILES | [Fe][Ni][W] |
InchI ID nkag mus | InChI=1S/Fe.Ni.W |
InchI Key | OWUGOENUEKACGV-UHFFFAOYSA-N |
Tungsten Nickel Hlau Alloy Properties (Theoretical)
Compound Formula | WNiFe |
Qhov tshwm sim | Silvery-grey metallic khoom nyob rau hauv ntau hom (hlau, ntawv, pas nrig, bar, hmoov) |
Melting Point | N/A |
Boiling Point | N/A |
Qhov ntom | 16 85-19.3 g/cm3 |
Solubility hauv H2O | N/A |
Hluav taws xob Resistivity | 9 x 10-6ib cm |
Poisson tus ratio | 0.21-0.24 |
Tensile zog | 680-785 MPa |
Thermal conductivity | .18-.30 CGS Units |
Thermal Expansion | 4. 0 µm/m· degree (linear) |
Vickers Hardness | 255-360 |
Cim npe nrov: tungsten nickel hlau alloy, Tuam Tshoj, lwm tus neeg, yuav, muag, ua nyob rau hauv Suav teb
