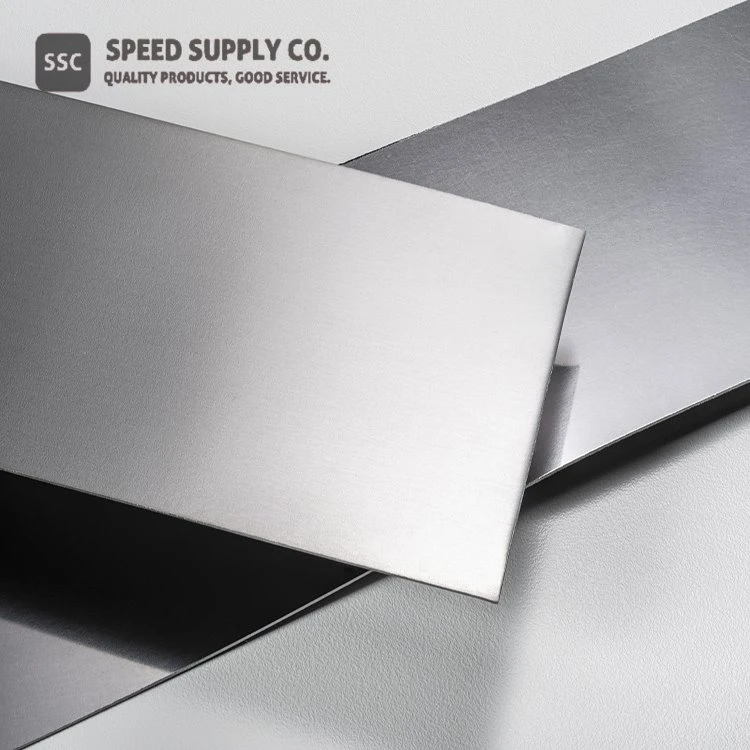

Tantalum Tungsten Alloy Sheet thiab Board

Linear Formula: Ta-W

Muaj nuj nqi

Linear Formula:	Tau-W
Txuj:	ASTM B708 Cov khoom lag luam
Purity:	Ntau dua lossis sib npaug li 99.9 feem pua lossis 99.95 feem pua
Loj:	Thickness: 0 07-10 hli, Dav: 30-1000 hli, Ntev: 30-3000 hli
Khoom Qib:	R05255 (Ta-10W), tantalum alloy, 90% tantalum, 10% tungsten, electron-beam rauv ntawm lub tshuab nqus tsev-arc yaj, los yog ob qho tib si. R05252 (Ta-2.5W), tantalum alloy, 97.5 feem pua tantalum, 2.5 feem pua tungsten, electron-beam rauv los yog nqus-arc yaj, los yog ob qho tib si.

Tantalum Tungsten Alloy Sheet thiab Board Description

Tantalum tungsten alloy daim ntawv thiab board feem ntau tam sim ntawd muaj nyob rau hauv feem ntau ntim, nrog rau ntau qhov ntau. SSC tuaj yeem tsim cov ntaub ntawv feem ntau hauv siab purity thiab ultra siab purity (txog 99.99999 feem pua) cov ntaub ntawv thiab ua raws li cov qauv kev xeem ASTM.

SSC tuaj yeem tsim tantalum thiab tantalum alloy li pas nrig, pellets, hmoov, daim, disc, granules, hlau. Lwm cov duab muaj nyob ntawm kev thov. Thov hu rau peb kom paub cov lus qhia tshwj xeeb, lub sijhawm ua haujlwm thiab tus nqi.

Chemical Composition ntawm Tantalum Tungsten Alloy Sheet thiab Board

Chemical Composition (%)
Qib	Cov ntsiab lus tseem ceeb		Impurities (tsawg dua lossis sib npaug rau feem pua)
Qib	Ta	Nb/W	Fe	Si	Ni	W	Mo	Ti	O
ua 2.5w	Bal	2.0~3.0	0.005	0.005	0.002	3.0	0.01	0.002	0.015
Ta 10 W	Bal	9~11	0.005	0.005	0.002	11	0.01	0.002	0.015
Lwm cov ntsiab lus raws li tus neeg siv khoom thov. (N,C Tsawg dua lossis sib npaug rau {{0}}.01 feem pua , H Tsawg dua lossis sib npaug rau 0.0015 feem pua )

Mechanical Properties ntawm Tantalum Tungsten Alloy Sheet thiab Board

Qib thiab qhov loj me	Annealed (Regular temper)
Qib thiab qhov loj me	Tensile zog Min, psi (MPa)	Yield zog min, psi (MPa) (2 feem pua)	Elongation min, feem pua (1 nti gage length)
Ta-10W (R05255) tantalum tungsten alloy
Thickness<0.125">	70000 (482)	60000 (414)	15
Thickness Ntau dua los yog sib npaug rau 0.125" (3.175mm)	70000 (482)	55000 (379)	20
Ta-2.5W (R05252) tantalum tungsten alloy
Thickness<0.125">	40000 (276)	30000 (207)	20
Thickness Ntau dua los yog sib npaug rau 0.125" (3.175mm)	40000 (276)	22000 (152)	25

Daim ntawv thov thiab lwm yam lag luam rau Tantalum Tungsten Alloy Sheet thiab Board

● Kev lag luam tshuaj lom neeg thiab kev lag luam aerospace (lub zog yog siab dua li ntshiab tantalum, thiab corrosion kuj zoo ib yam)

● Ta-2.5W alloy feem ntau yog siv rau hauv kev tsim cov cua sov, txias coils, kub exchangers thiab reactors.

● Ta-7.5w alloy feem ntau yog siv rau cov khoom siv tshuaj corrosion nyob rau hauv cov khoom siv caij nplooj ntoos hlav thiab lwm yam corrosion-resistant elastic Cheebtsam.

● Ta-10W alloy tuaj yeem siv los ua roj kub ntawm 3300 degrees celsius saum cov kua foob pob hluav taws lub cav thrust combustion chamber, kub lub tshuab nqus tsev rauv cua sov lub cev thiab lwm yam khoom siv kub.

Chemical Identifiers

Linear Formula	Tau-W
MDL Number	N/A
EC No.	N/A
Pubchem CID	57464935
IUPAC npe	tantalum; tungsten
SMILES	[Ta] [W]
InchI ID nkag mus	InChI=1S/Ta.W
InchI Key	DZZDTRZOOBJSSG-UHFFFAOYSA-N

Tantalum Tungsten Alloy Properties (Theoretical)

Compound Formula	Tau-W
Qhov tshwm sim	Cov khoom siv hlau hauv ntau hom (phaj / ntawv, bar, pas nrig, sawb, ntawv ci, hlau, disc, sputtering phiaj)
Melting Point	3005-3030 degree
Boiling Point	N/A
Qhov ntom	16. 7-16.9 g/cm³
Solubility hauv H2O	N/A
Hluav taws xob Resistivity	0.0000176 ohm-cm
Tensile zog	550 MPa (7.5% W)
Vickers Hardness	245 (7.5% W)
