Tantalum Tungsten Alloy Tube thiab Yeeb Nkab

Linear Formula: Ta-W

Muaj nuj nqi

Linear Formula:	Tau-W
Txuj:	ASTM B 521-98
Purity:	Ntau dua lossis sib npaug li 99.9 feem pua lossis 99.95 feem pua
Loj:	Txoj kab uas hla: 1.0-150mm, Thickness: 0.
Khoom Qib:	R05255 (Ta-10W), tantalum alloy, 90% tantalum, 10% tungsten, electron-beam rauv ntawm lub tshuab nqus tsev-arc yaj, los yog ob qho tib si. R05252 (Ta-2.5W), tantalum alloy, 97.5 feem pua tantalum, 2.5 feem pua tungsten, electron-beam rauv los yog nqus-arc yaj, los yog ob qho tib si.

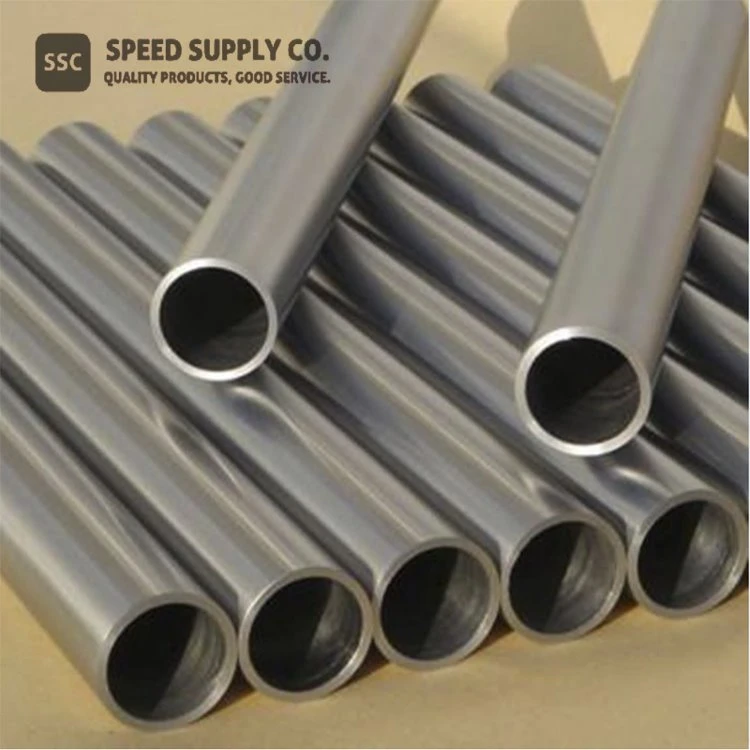

Tantalum Tungsten Alloy Tube thiab Pipe Description

Muaj ob txoj hauv kev los ua tantalum thiab tantalum alloy raj thiab yeeb nkab. Ib qho yog los tsim cov raj seamless los ntawm extruding raj dawb paug, thiab lwm yam yog los tsim welded raj los ntawm kev kos cov txheej txheem tom qab inert gas tungsten arc vuam.

SSC muab tantalum raj thiab yeeb nkab nrog rau seamless raj thiab welded raj & yeeb nkab. Welded tantalum raj thiab yeeb nkab yog tsim los ntawm tantalum sawb thiab tantalum ntawv ci, welded hlab tuaj yeem nrog cov phab ntsa tuab yog nyias thiab loj OD.

Tantalum tungsten alloy feem ntau yog tantalum 2.5 feem pua tungsten thiab tantalum 10 feem pua tungsten. Ta7.5W uas yog 92.5% tantalum thiab 7.5% tungsten kuj muaj.

Tantalum tubing nrog<5mm od="" can="" also="" be="" named="" as="" tantalum="" capillary,="" this="" is="" only="" available="" for="" pure="" tantalum.="" we="" can="" provide="" tantalum="" capillary="" with="" small="" heights,="" that="" will="" be="" tantalum="" marker="">

Chemical Composition ntawm Tantalum Tungsten Alloy Tube thiab Yeeb Nkab

Chemical Composition (%)
Qib	Cov ntsiab lus tseem ceeb		Impurities (tsawg dua lossis sib npaug rau feem pua)
Qib	Ta	Nb/W	Fe	Si	Ni	W	Mo	Ti	O
ua 2.5w	Bal	2.0~3.0	0.005	0.005	0.002	3.0	0.01	0.002	0.015
Ta 10 W	Bal	9~11	0.005	0.005	0.002	11	0.01	0.002	0.015
Lwm cov ntsiab lus raws li tus neeg siv khoom thov. (N,C Tsawg dua lossis sib npaug rau {{0}}.01 feem pua , H Tsawg dua lossis sib npaug rau 0.0015 feem pua )

Mechanical Properties ntawm Tantalum Tungsten Alloy Tube thiab Yeeb Nkab

Mechanical Properties	R05252	R05255
Qhov kawg tensile zog, min, psi (MPa)	40 000 (276)	70 000 (481)
Yield zog, 0.2 feem pua offset, min, psi (MPa)	28 000 (193)	60 000 (414)
Elongation, min feem pua, hauv 1 lossis 2 nti (25 lossis 51 hli)	20	15

Daim ntawv thov thiab lwm yam lag luam rau Tantalum Tungsten Alloy Tube thiab Yeeb Nkab

● Cov khoom siv hluav taws xob thiab cov khoom siv cua sov hauv kev ua tshuaj

● High-temperature technology, chemical thiab atomic zog kev lag luam

● Kev Tshawb Fawb & Kev Tshawb Fawb

Chemical Identifiers

Linear Formula	Tau-W
MDL Number	N/A
EC No.	N/A
Pubchem CID	57464935
IUPAC npe	tantalum; tungsten
SMILES	[Ta] [W]
InchI ID nkag mus	InChI=1S/Ta.W
InchI Key	DZZDTRZOOBJSSG-UHFFFAOYSA-N

Tantalum Tungsten Alloy Properties (Theoretical)

Compound Formula	Tau-W
Qhov tshwm sim	Cov khoom siv hlau hauv ntau hom (phaj / ntawv, bar, pas nrig, sawb, ntawv ci, hlau, disc, sputtering phiaj)
Melting Point	3005-3030 degree
Boiling Point	N/A
Qhov ntom	16 7-16.9 g/cm³
Solubility hauv H2O	N/A
Hluav taws xob Resistivity	0.0000176 ohm-cm
Tensile zog	550 MPa (7.5% W)
Vickers Hardness	245 (7.5% W)
