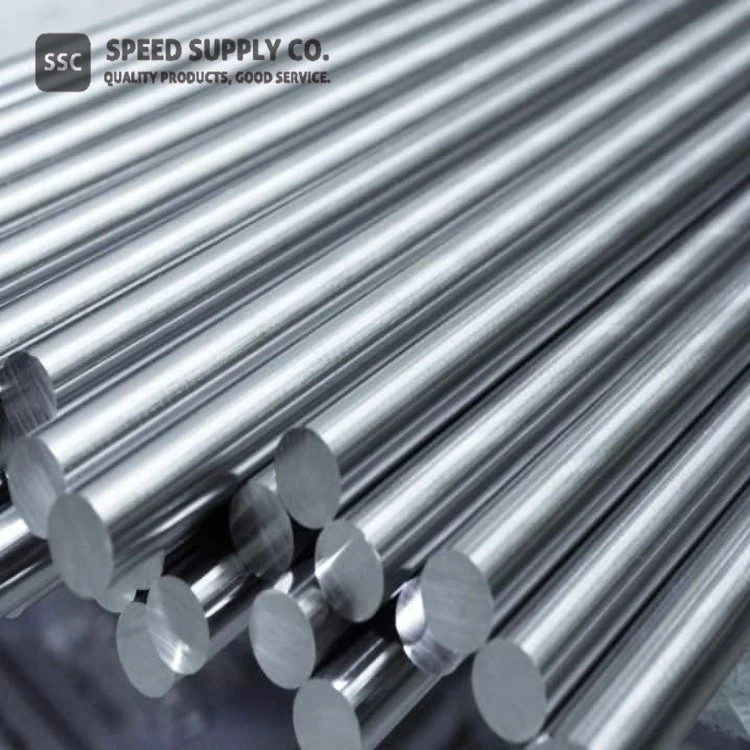

Tantalum Tungsten Alloy Qws thiab Bar

Linear Formula: Ta-W

Muaj nuj nqi

Linear Formula:	Tau-W
Txuj:	ASTM B365; ASTM F560 Cov Lus Qhia
Purity:	Ntau dua lossis sib npaug li 99.9 feem pua lossis 99.95 feem pua
Loj:	Txoj kab uas hla: 4 ~ 120mm Ntev: 2000mm Max
Khoom Qib:	R05255 (Ta-10W), tantalum alloy, 90% tantalum, 10% tungsten, electron-beam rauv ntawm lub tshuab nqus tsev-arc yaj, los yog ob qho tib si. R05252 (Ta-2.5W), tantalum alloy, 97.5 feem pua tantalum, 2.5 feem pua tungsten, electron-beam rauv los yog nqus-arc yaj, los yog ob qho tib si.

Tantalum Tungsten Alloy Qws thiab Bar Description

Tantalum tungsten yog lub zog siab hlau alloy. Nws muaj lub siab melting point, nro kuj thiab corrosion kuj. SSC's tantalum alloys yog tsim los ntawm kev siv hluav taws xob metallurgy cov tswv yim los ntawm kev sib xyaw tantalum hmoov nrog cov ntsiab lus alloy thiab sau rau hauv pwm, compressing lawv ntawm qhov kub txog li 2000 bars, thiab tom qab ntawd sintering lawv. Tantalum tungsten alloys muaj zog dua li ntshiab tantalum thiab muaj txiaj ntsig zoo rau kev siv corrosion thiab kub ntawm qhov kub txog li 1600 degree.

Ta7.5W uas yog 92.5% tantalum thiab 7.5% tungsten kuj muaj.

SSC muab tantalum tungsten alloy pas nrig, bar thiab lub tog raj kheej ntev txog li 2m thiab txoj kab uas hla mus txog 120 hli. Peb kuj muab cov ntshiab tantalum thiab tantalum niobium alloy pas nrig & bar.

Chemical Composition ntawm Tantalum Tungsten Alloy Qws thiab Bar

Chemical Composition (%)
Qib	Cov ntsiab lus tseem ceeb		Impurities (tsawg dua lossis sib npaug rau feem pua)
Qib	Ta	Nb/W	Fe	Si	Ni	W	Mo	Ti	O
ua 2.5w	Bal	2.0~3.0	0.005	0.005	0.002	3.0	0.01	0.002	0.015
Ta 10 W	Bal	9~11	0.005	0.005	0.002	11	0.01	0.002	0.015
Lwm cov ntsiab lus raws li tus neeg siv khoom thov. (N,C Tsawg dua lossis sib npaug rau {{0}}.01 feem pua , H Tsawg dua lossis sib npaug rau 0.0015 feem pua )

Mechanical Properties rau Tantalum thiab Tantalum Alloy Qws thiab Bar

Yam khoom	Tensile zog (MPa)	Elongation, feem pua
Annealed	300-600	10-30
Ib nrab annealed	>600-1000	<>
Un-annealed	>1000	<>

Daim ntawv thov thiab lwm yam lag luam rau Tantalum Tungsten Alloy Qws thiab Bar

● Kub kub qhov cub qhov chaw

● Cov khoom siv Prosthetic rau tib neeg

● Tantalum electrolyte capacitor

● Nqus electron cathode emission qhov chaw

● Kev Tshawb Fawb & Kev Tshawb Fawb

● Tshuaj

● Zog

● Kho mob

● Aerospace

● Metallurgy

Chemical Identifiers

Linear Formula	Tau-W
MDL Number	N/A
EC No.	N/A
Pubchem CID	57464935
IUPAC npe	tantalum; tungsten
SMILES	[Ta] [W]
InchI ID nkag mus	InChI=1S/Ta.W
InchI Key	DZZDTRZOOBJSSG-UHFFFAOYSA-N

Tantalum Tungsten Alloy Properties (Theoretical)

Compound Formula	Tau-W
Qhov tshwm sim	Cov khoom siv hlau hauv ntau hom (phaj / ntawv, bar, pas nrig, sawb, ntawv ci, hlau, disc, sputtering phiaj)
Melting Point	3005-3030 degree
Boiling Point	N/A
Qhov ntom	16 7-16.9 g/cm³
Solubility hauv H2O	N/A
Hluav taws xob Resistivity	0.0000176 ohm-cm
Tensile zog	550 MPa (7.5% W)
Vickers Hardness	245 (7.5% W)
