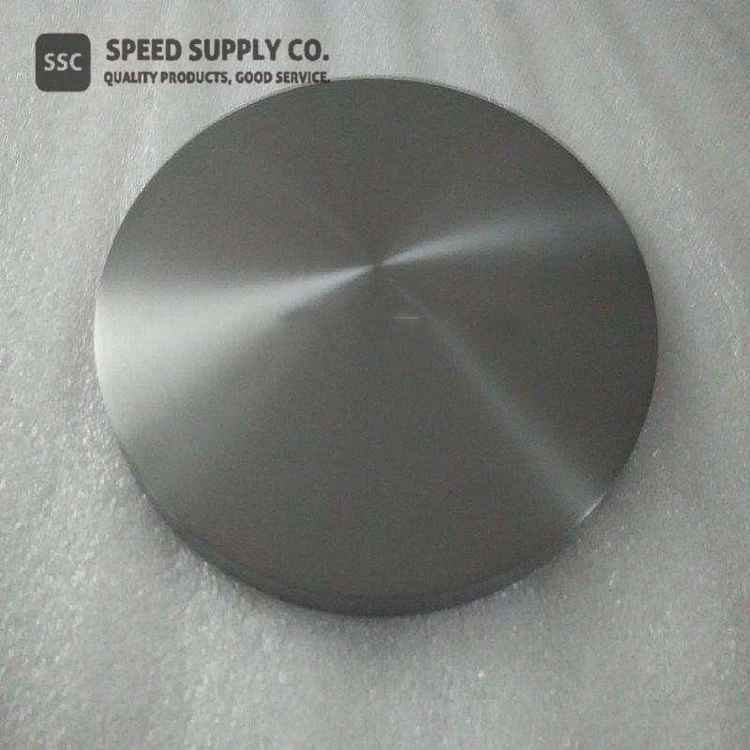

Tantalum Tungsten Alloy Disc

Linear Formula: Ta-W

Muaj nuj nqi

Linear Formula:	Tau-W
Txuj:	ASTM B708 Cov khoom lag luam
Purity:	Ntau dua lossis sib npaug li 99.9 feem pua lossis 99.95 feem pua
Loj & Tolerance:	Circular tantalum sputtering lub hom phiaj: Txoj kab uas hla 15mm-400mm x Thickness 1mm-28mm Rectangular tantalum sputtering lub hom phiaj: Thickness 1mm-40mm x Dav max 1000mm x Length max 3000mm
Khoom Qib:	R05255 (Ta-10W), tantalum alloy, 90% tantalum, 10% tungsten, electron-beam rauv ntawm lub tshuab nqus tsev-arc yaj, los yog ob qho tib si. R05252 (Ta-2.5W), tantalum alloy, 97.5 feem pua tantalum, 2.5 feem pua tungsten, electron-beam rauv los yog nqus-arc yaj, los yog ob qho tib si.

Tantalum Tungsten Alloy Disc Description

Peb muab cov ntshiab tantalum, tantalum tungsten alloy thiab tantalum niobium alloy discs & sputtering lub hom phiaj rau ib qho kev thov.

Tantalum tungsten alloy feem ntau yog tantalum 2.5 feem pua tungsten thiab tantalum 10 feem pua tungsten. Ta7.5W uas yog 92.5% tantalum thiab 7.5% tungsten kuj muaj.

SSC's tantalum tungsten alloys kuj muaj xws li bar, ingot, ribbon, hlau, txhaj tshuaj, ntawv, thiab ntawv ci. Customized qhov chaw kuj muaj nyob rau ntawm SSC.

Tshuaj muaj pes tsawg leeg ntawm Tantalum Tungsten Alloy Disc

Chemical Composition (%)
Qib	Cov ntsiab lus tseem ceeb		Impurities (tsawg dua lossis sib npaug rau feem pua)
Qib	Ta	Nb/W	Fe	Si	Ni	W	Mo	Ti	O
ua 2.5w	Bal	2.0~3.0	0.005	0.005	0.002	3.0	0.01	0.002	0.015
Ta 10 W	Bal	9~11	0.005	0.005	0.002	11	0.01	0.002	0.015
Lwm cov ntsiab lus raws li tus neeg siv khoom thov. (N,C Tsawg dua lossis sib npaug rau {{0}}.01 feem pua , H Tsawg dua lossis sib npaug rau 0.0015 feem pua )

Specification rau Tantalum Disc

Lub npe	Tantalum Sputtering Target
Khoom siv	R05200, R05400, R05252(Ta-2.5W), R05255(Ta-10W)
Re-crystalization	95% min
Cov qoob loo loj	40μm los yog zoo dua
Nto tiav	16 Rms max. los yog Ra 0.4 (RMS64 lossis zoo dua)
Flatness	{{0}}.1mm lossis 0.15 feem pua max
Ua siab ntev	ntxiv /-0.010″ ntawm txhua qhov loj me

Tantalum Tungsten Alloy Disc daim ntawv thov thiab lwm yam lag luam

● Sputtering Target

● Cov khoom siv hluav taws xob thiab cov khoom siv cua sov hauv kev ua tshuaj

● Kev Tshawb Fawb & Kev Tshawb Fawb

● Zog

● Aerospace

● Electron

● Tshuaj

Chemical Identifiers

Linear Formula	Tau-W
MDL Number	N/A
EC No.	N/A
Pubchem CID	57464935
IUPAC npe	tantalum; tungsten
SMILES	[Ta] [W]
InchI ID nkag mus	InChI=1S/Ta.W
InchI Key	DZZDTRZOOBJSSG-UHFFFAOYSA-N

Tantalum Tungsten Alloy Properties (Theoretical)

Compound Formula	Tau-W
Qhov tshwm sim	Cov khoom siv hlau hauv ntau hom (phaj / ntawv, bar, pas nrig, sawb, ntawv ci, hlau, disc, sputtering phiaj)
Melting Point	3005-3030 degree
Boiling Point	N/A
Qhov ntom	16 7-16.9 g/cm³
Solubility hauv H2O	N/A
Hluav taws xob Resistivity	0.0000176 ohm-cm
Tensile zog	550 MPa (7.5% W)
Vickers Hardness	245 (7.5% W)
