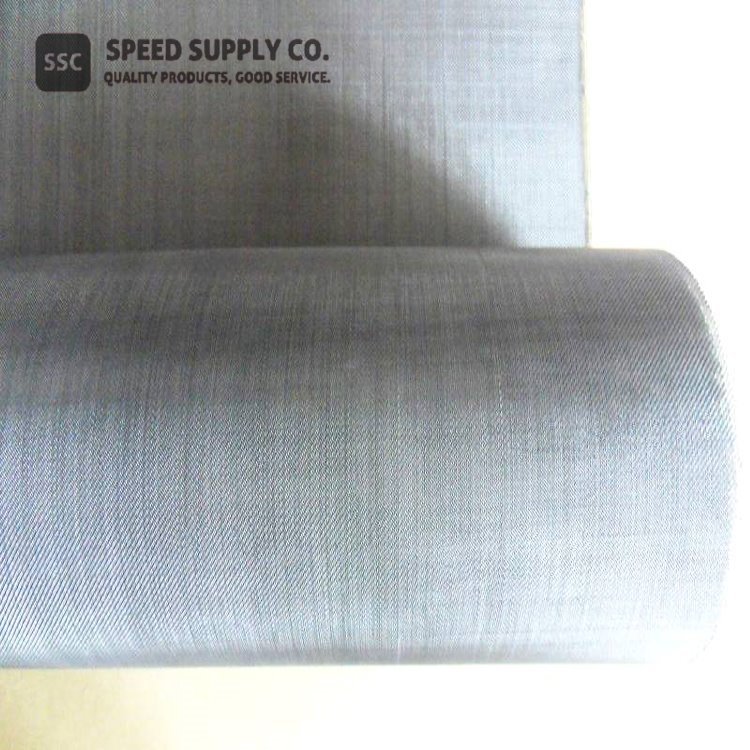

Tantalum Hlau Mesh

CAS Naj Npawb: 7440-25-7

Muaj nuj nqi

CAS Nr .:	7440-25-7
Khoom siv:	R05200, R05400
Txuj:	ASTM B 365 Cov Lus Qhia Tshwj Xeeb
Hom Mesh:	Plain Weave thiab Twill Weave
Hlau DIA:	{{0}}.05mm-10.0mm
Mesh:	0.5-150
Aperture Rate:	10 feem pua -90 feem pua
Loj:	10mm -2000mm Dav x Length

Tantalum Hlau Mesh Description

Tantalum hlau mesh, tseem hu ua tantalum screen lossis tantalum hlau daim ntaub, yog ib qho tsis tshua muaj hlau mesh ua los ntawm hlau tantalum. Tantalum hlau mesh muaj qhov siab melting point zoo corrosion kuj ua haujlwm.

SSC tshwj xeeb hauv kev tsim cov purity siab zoo zoo li tantalum hlau mesh nrog nruj tolerances thiab alpha qhov tseem ceeb (conductive resistance) rau kev siv xws li kev kuaj roj thiab ntsuas qhov ntsuas kub. Peb tseem tuaj yeem tsim kev cai hlau alloys thiab ntsuas qhov ntau thiab tsawg. Cov ntaub ntawv yog tsim los ntawm crystallization, khoom lub xeev thiab lwm yam ultra siab purification txheej txheem xws li sublimation. SSC tshwj xeeb hauv kev tsim cov kev cai sib xyaw rau kev lag luam thiab kev tshawb fawb daim ntawv thov thiab rau cov cuab yeej tshiab.

SSC tseem muab cov hlau tsis tshua muaj hauv ntiaj teb thiab feem ntau lwm cov ntaub ntawv siab heev rau hauv pas nrig, bar, lossis phaj daim ntawv, nrog rau lwm cov qauv siv thiab los ntawm lwm cov txheej txheem xws li nanoparticles thiab hauv daim ntawv ntawm kev daws teeb meem thiab organometallics. Peb kuj tsim tantalum li hmoov, ingot, pieces, pellets, disc, granules thiab nyob rau hauv cov ntaub ntawv compound, xws li oxide. Lwm cov duab muaj nyob ntawm kev thov.

Tshuaj muaj pes tsawg leeg

Lub ntsiab	C	O	N	H	Fe	Mo	Nb	Ni	Si	Ti	W
R05200 (feem pua, Max))	0.01	0.015	0.01	0.0015	0.01	0.02	0.1	0.01	0.005	0.01	0.05
R05400 (%), Max.	0.01	0.03	0.01	0.0015	0.01	0.02	0.1	0.01	0.005	0.01	0.05

Tantalum Hlau Mesh daim ntawv thov thiab lwm yam lag luam

● Tshuaj ua kua lim.

● Gas-kua lim.

● Cua sov txhawb mesh.

● Cov khoom siv hluav taws xob electrode.

● Cov khoom siv hluav taws xob lub tshuab nqus tsev.

● Tshem cov ntaub so ntswg raug mob.

● Sieving npo.

● Kev Tshawb Fawb & Kev Tshawb Fawb

● Electro-vacuum kev lag luam

● Kev kho cua sov

● Tshuaj

● Kev lag luam hluav taws xob

● Kho mob

● Kev kho dej

● Kub halogen

Chemical Identifiers

Linear Formula	Ta
MDL Number	TIAB SA 00011252
EC No.	231-135-5
Beilstein/Reaxys No.	N/A
Pubchem CID	23956
SMILES	[Ta]
InchI ID nkag mus	InChI=1S/Ta
InchI Key	GUVRBAGPIYLISA-UHFFFAOYSA-N

Tantalum Hlau Mesh Properties (Theoretical)

Molecular Luj	180.94
Qhov tshwm sim	Silvery-grey khoom
Melting Point	3017 degree
Boiling Point	5 458d
Qhov ntom	16.69 g / cm²³(20 degree)
Solubility hauv H2O	N/A
Crystal Phase / Qauv	: body-centered cubic (bcc) / : tetragonal
Hluav taws xob Resistivity	131 nΩ·m (20 degree)
Electronegativity	1.5 Pauling
Kub ntawm Fusion	36.57 kJ/mol
Kub ntawm Vaporization	753 kJ / mol
Poisson tus ratio	0.34
Tshwj xeeb kub	140 J/kg · K
Thermal conductivity	57.5 W/m·K
Thermal Expansion	6.3 µm/m·K
Vickers Hardness	870-1200 MPa
Young's Modulus	186 GPA
