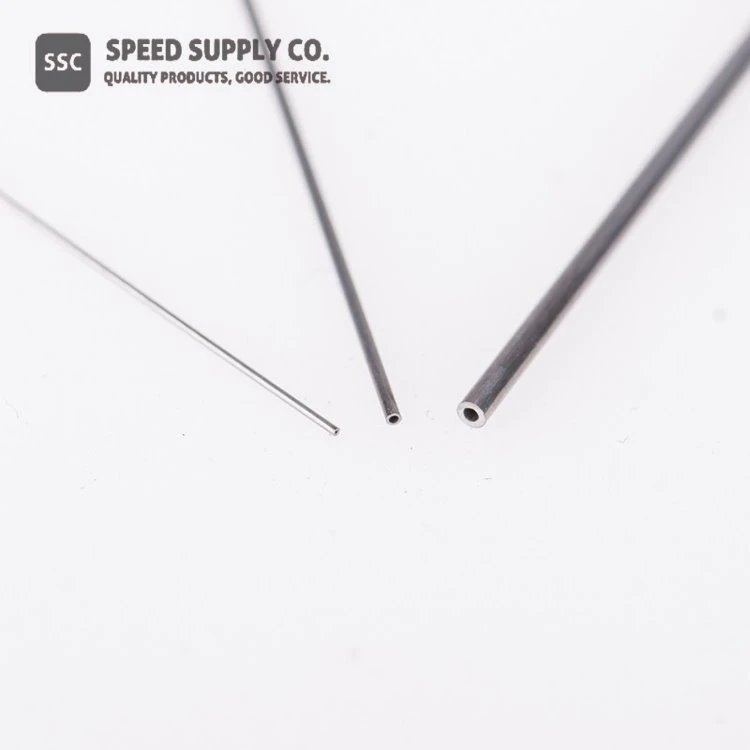

Tantalum Hlau Capillary

CAS Naj Npawb: 7440-25-7

Muaj nuj nqi

CAS Nr .:	7440-25-7
Txuj:	ASTM B 521 Cov Lus Qhia Tshwj Xeeb
Purity:	Ntau dua lossis sib npaug li 99.9 feem pua lossis 99.95 feem pua
Loj:	Outer Diameter (OD): 0 2-8 hli Phab ntsa Thickness (WT): 0 015-1mm Ntev (L): 1mm-1000mm
Kev kam rau siab:	OD plus /-0.003mm, WT plus /-0.005mm, L ntxiv /-0.05mm
Khoom Qib:	R05200, unalloyed tantalum, electron-beam rauv los yog nqus-arc yaj, los yog ob qho tib si R05400, unalloyed tantalum, hmoov-metallurgy consolidation.

Tantalum Capillary Description

Tantalum tubing nrog<8mm od="" can="" also="" be="" named="" as="" tantalum="" capillary="" and="" this="" is="" only="" available="" for="" pure="" tantalum.="" ssc="" also="" provide="" tantalum="" capillary="" with="" small="" heights,="" that="" will="" be="" tantalum="" marker="">

Tantalum capillary tseem hu ua tantalum micro tubing thiab tantalum zoo raj, yog tantalum raj nrog qhov me me heev. Nws tuaj yeem siv los ua cov raj xa dej ntawm cathode insulator hauv lub raj x-ray, ua cov cim cim hauv cov tshuaj, thiab tuaj yeem siv los ua lub raj thermocouple.

SSC tshwj xeeb hauv kev muab tantalum capillary nrog ntau qhov ntev. Kev cai configurations kuj muaj. Tantalum yog yooj yim oxidation, tab sis nws anti-corrosion yog ib qho ntawm cov khoom plig siab tshaj plaws, lub sijhawm no, nws muaj kev koom ua ke zoo nrog tib neeg cov ntaub so ntswg. Tantalum capillary feem ntau yog siv los ua cov twj nruab nrab, cov cuab yeej tshwj xeeb, thiab lwm yam. Raws li nws cov khoom tsim tshwj xeeb muaj qhov sib txawv loj ntawm lwm cov hlau capillary raj, Tantalum capillary raj tsis yooj yim los ua. SSC muab cov khoom zoo tantalum capillary ntawm tus nqi sib tw, uas tuaj yeem siv rau hauv kev tshawb fawb tshawb fawb lossis kev tsim khoom lag luam. Cov kev siv ntau tshaj plaws ntawm tantalum capillary raj yog tantalum marker bands thiab thermocouple tiv thaiv raj.

Tshuaj muaj pes tsawg leeg

Lub ntsiab	C	O	N	H	Fe	Mo	Nb	Ni	Si	Ti	W
R05200 (%), Max.	0.0006	0.012	0.001	0.0005	0.0022	0.002	0.01	0.0012	0.0029	0.0012	0.003
R05400 (%), Max.	0.01	0.03	0.01	0.0015	0.01	0.02	0.1	0.01	0.005	0.01	0.05

Tantalum Capillary Daim Ntawv Thov thiab Lwm Yam Kev Lag Luam

● Cov khoom siv hauv chav kuaj

● Hloov rau platinum

● Filament lead tube ntawm cathode insulator nyob rau hauv ib lub raj x-ray.

● Kua tantalum electrolytic capacitors

● Marker band

● Thermocouple raj

● Electronics

● Zog

● Hluav taws xob

Chemical Identifiers

Linear Formula	Ta
MDL Number	TIAB SA 00011252
EC No.	231-135-5
Beilstein/Reaxys No.	N/A
Pubchem CID	23956
SMILES	[Ta]
InchI ID nkag mus	InChI=1S/Ta
InchI Key	GUVRBAGPIYLISA-UHFFFAOYSA-N

Tantalum Capillary Properties (Theoretical)

Molecular Luj	180.94
Qhov tshwm sim	Silvery-grey khoom
Melting Point	3017 degree
Boiling Point	5 458d
Qhov ntom	16.69 g / cm²³(20 degree)
Solubility hauv H2O	N/A
Crystal Phase / Qauv	: body-centered cubic (bcc) / : tetragonal
Hluav taws xob Resistivity	131 nΩ·m (20 degree)
Electronegativity	1.5 Pauling
Kub ntawm Fusion	36.57 kJ/mol
Kub ntawm Vaporization	753 kJ / mol
Poisson tus ratio	0.34
Tshwj xeeb kub	140 J/kg · K
Thermal conductivity	57.5 W/m·K
Thermal Expansion	6.3 µm/m·K
Vickers Hardness	870-1200 MPa
Young's Modulus	186 GPA
