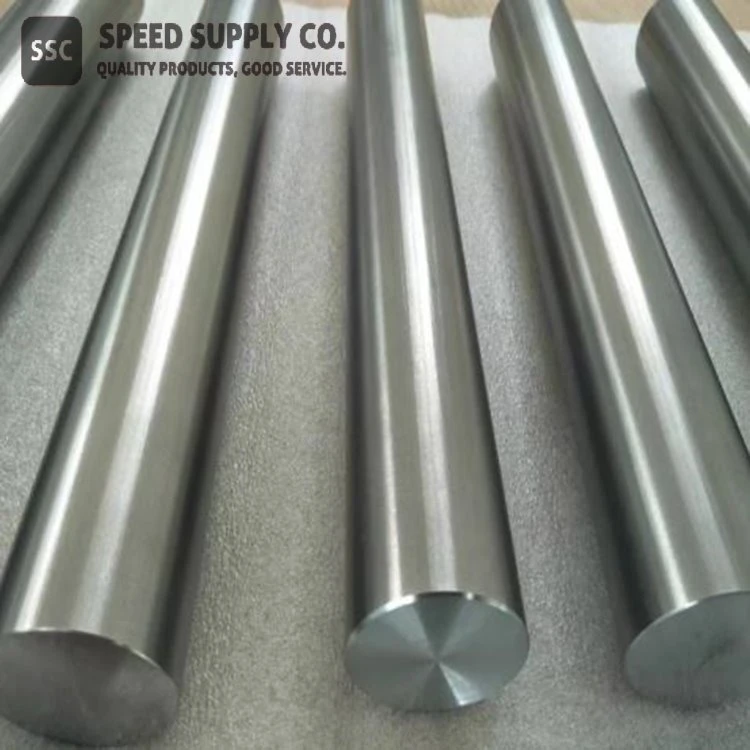

Superconducting Niobium Qws thiab Ntawv

CAS Naj Npawb: 7440-03-1

Muaj nuj nqi

CAS Nr .:	7440-03-1
Purity:	99.9% 99.95% 99.99% 99.995%
Txuj:	ASTM B 392 Cov Lus Qhia
Nto:	Polished
Loj:	Qws: 10mm -295mm Dia. × 1500 mm Length Daim ntawv: 1mm -5mm Thickness, 1000mm Max Dav
Residual Resistance Ration (RRR):	Ntau dua lossis sib npaug li 300
Khoom Qib:	R04200-Type 1 -Reactor qib unalloyed niobium

Superconducting Niobium Qws thiab Daim Ntawv Qhia

Lub superconducting Xov tooj cua zaus (RF) kab noj hniav siv nyob rau hauv cov dawb electron lasers yog tsim los ntawm siab purity niobium nrog siab Residual Resistivity Ratio (RRR). Niobium superconducting Residual Resistivity Ratio (RRR) txhais tau tias yog qhov piv ntawm niobium superconducting resistivity thiab kub kub superconducting niobium resistivity nyob rau hauv chav tsev kub. Nrog rau qhov nce ntawm cov khoom siv purity thiab txo cov kev ntxhov siab sab hauv, RRR tus nqi txo. RRR tus nqi tuaj yeem siv los ntsuas purity ntawm cov hlau. SSC tuaj yeem tsim cov khoom niobium raws li tus nqi RRR cov neeg siv khoom xav tau. RRR niobium feem ntau yog tsim los ntawm tus pas nrig thiab daim ntawv. Cov khoom hauv ingot thiab raj kuj muaj nyob ntawm kev thov.

Tsis tas li ntawd, niobium titanium alloys yog siv los ua hom II superconductor cov ntaub ntawv rau superconducting hlau nplaum. Daim ntawv thov ntawm cov hlau nplaum superconducting muaj xws li magnetic resonance imaging thiab nuclear magnetic resonance instruments, thiab hauv particle accelerators. Cov alloys feem ntau muaj nrog 47 feem pua, 50 feem pua, thiab 55 feem pua titanium. Thov hu rau peb kom paub meej ntxiv.

Tshuaj muaj pes tsawg leeg

RRR Superconducting Qib Ntshiab Niobium R04220	Chemical Compositions Max Qhov hnyav feem pua
	C	N	O	H	Zr	Ta	Fe	Si	W	Ni	Ti	Nb
	0.003	0.003	0.004	0.0005	0.01	0.1	0.005	0.005	0.007	0.003	0.005	Tshuav

Superconducting Niobium Qws thiab Sheet Specification

impurity (ppm)

Residual Resistivity Ratio (RRR)	Ta	W	Ti	Fe	Mo	Ni	H	N	O	C
> 300	Tsawg dua lossis sib npaug li 500, ppm	Tsawg dua los yog sib npaug li 70	Tsawg dua los yog sib npaug li 50	Tsawg dua los yog sib npaug li 30	Tsawg dua los yog sib npaug li 50	Tsawg dua los yog sib npaug li 30	Tsawg dua los yog sib npaug 2	Tsawg dua los yog sib npaug li 10	Tsawg dua los yog sib npaug li 10	Tsawg dua los yog sib npaug li 10

Daim ntawv thov thiab lwm yam lag luam rau Superconducting Niobium Qws thiab Ntawv

● RF superconducting kab noj hniav

Chemical Identifiers

Linear Formula	Nb
MDL Number	PAB 00011126
EC No.	231-113-5
Beilstein/Reaxys No.	N/A
Pubchem CID	23936
SMILES	[Nb]
InchI ID nkag mus	InChI=1S/Nb
InchI Key	GUCVJGMIXFAOAE-UHFFFAOYSA-N

Niobium Qws thiab Sheet Properties (Theoretical)

Molecular Luj	92.9
Qhov tshwm sim	Nyiaj
Melting Point	2468 degree
Boiling Point	4 742 ygo
Qhov ntom	8.57 g / cm²³
Solubility hauv H2O	N/A
Hluav taws xob Resistivity	12.5 microhm-cm @ 0 degree
Electronegativity	1.6 Pauling
Kub ntawm Vaporization	N/A
Poisson tus ratio	0.4
Tshwj xeeb kub	0.064 Cal/g/K @ 25 degree
Tensile zog	N/A
Thermal conductivity	0.537 W/cm/K @ 298.2 K
Thermal Expansion	7.3 µm/(m·K)
Vickers Hardness	1320 MPa rau
Young's Modulus	105 GPa
