Khoom siv: | C-103 Nb Alloy |
Linear Formula: | Nb-89 feem pua Hf-10 feem pua Ti-1 feem pua |
Purity: | 99.9 feem pua, 99.95 feem pua, 99.99 feem pua |
Nto: | Polished |

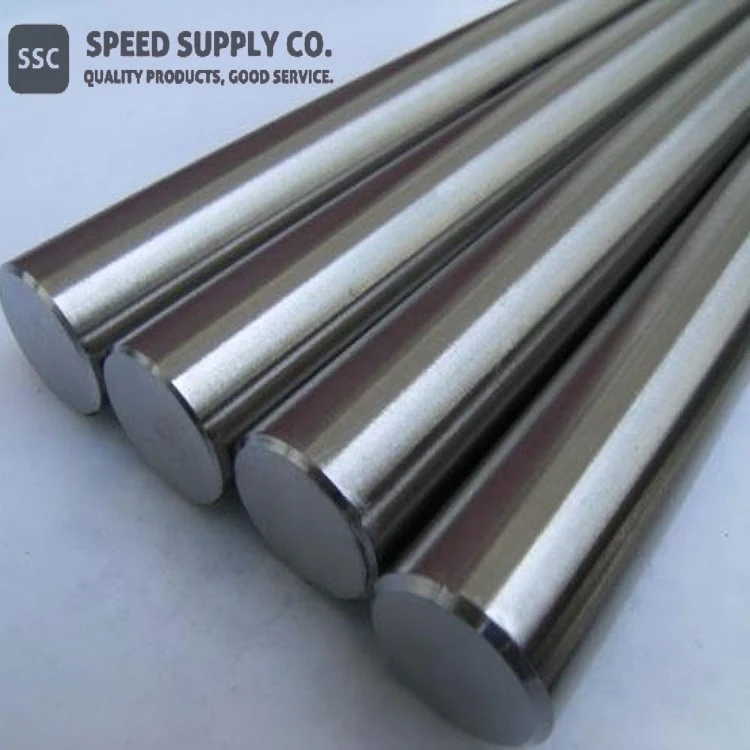

C-103 Niobium Alloy piav qhia
C103 alloy (niobium-hafnium-titanium) yog niobium raws li alloy uas tau siv dav hauv kev siv dav hlau vim tias nws cov cua sov tsis txaus ntseeg, nrog rau nws lub teeb yuag, tus nqi, kev ntseeg siab, thiab muaj peev xwm sawv ntsug ntawm kev vibrations thiab cryogenic. kub. Nws yog ib qho nyuaj refractory alloy muaj feem ntau ntawm niobium, nrog ntxiv ntawm 10wt feem pua hafnium, 1wt feem pua titanium, thiab cov lej ntawm lwm cov ntsiab lus.
Cov hlau muaj qhov melting point ntawm 4260± 90ºF, thiab qhov ceev ntawm 0.320 lbs./cubic inch, ua rau nws zoo tagnrho rau siv nyob rau hauv qhov chaw, nrog rau cov khoom siv nyob rau hauv super-heated thrusters, thiab foob pob ua ntxaij cav. . C103 niobium alloy yog dav siv nyob rau hauv kev tsim ntawm scramjet cav Cheebtsam.
C-103 niobium alloy muaj nyob rau hauv cov qauv thiab kev cai cov ntaub ntawv xws li hlau, ntawv, bar, tubing, pas nrig, thiab hmoov rau additive manufacturing. Lwm cov duab muaj nyob ntawm kev thov. Thov thov cov lus hais saum toj no kom tau txais cov ntaub ntawv nqi raws li koj qhov tshwj xeeb.
Qhov tseem ceeb rau txoj kev vam meej ntawm c {0}} yog nws qhov ntom ntom ntom thiab tshwj xeeb lub zog hla ntau qhov kub thiab txias ntau. Nws yog cov ntaub ntawv pov thawj thiab ntawm cov hlau refractory uas siv hauv propulsion thiab qhov chaw tshawb nrhiav technologies.
Qhov tseem ceeb, tsis zoo li lwm cov hlau refractory, refractory ceramics los yog composites tsim rau aerospace, C-103 yog ib qho yooj yim tsim. Txawm hais tias nws cov ntsiab lus melting siab, C-103 tuaj yeem ua haujlwm kub, sov, lossis txias ua haujlwm siv cov txheej txheem ib txwm ua los tsim cov khoom tiaj tus thiab puag ncig. C-103 kuj tuaj yeem ua tau yooj yim machined thiab TIG welded yam tsis muaj qhov tseem ceeb ntawm cov ductility ua rau cov khoom siv dav hlau dav dav kom yooj yim fabricated.
C-103 yog siv nyob rau hauv ntau yam ntawm aircraft Cheebtsam, los ntawm thrust augmenter flaps nyob rau hauv roj turbines mus rau high-kub li qub. Kev tshawb fawb tam sim no tab tom tsim los tsim cov niobium-raws li alloys rau tiam tom ntej aerospace technologies xws li cov kav dej kub kom dissipate tshav kub los ntawm hypersonic ua ntug thiab lub qhov ntswg cones.
Tshuaj muaj pes tsawg leeg ntawm C103 Niobium Alloy
Cov khoom | C | O | N | H | Hf | Ti | Zr | W | Ta |
C-103 | 0.015 | 0.025 | 0.01 | 0.0015 | 9 - 11 | 0.7 - 1.3 | 0.7 | 0.5 | 0.500 |
Specification rau Niobium Hafnium Alloy Khoom
Cov khoom npe | Khoom siv | Specification | Loj |
Nb-Hf Alloy Ingot | R04295 (Nb-10Hf), Nb-10W-10Hf C-129Y | ASTM B 652 Cov khoom lag luam | Txoj kab uas hla 20-295 mm, |
Nb-Hf Alloy Ntawv Nyiaj | Thickness 0 01-0.09 hli, | ||
Nb-Hf Alloy Sheet & Phaj | Thickness 0 1-10 hli, | ||
Nb-Hf Alloy Tube & Yeeb Nkab | ASTM B 394 Cov khoom siv | Sab nraud txoj kab uas hla 2.0-100 mm, | |
Nb-Hf Alloy Qws | ASTM B 655 Cov Lus Qhia Tshwj Xeeb | Txoj kab uas hla 3.0-120 mm, | |
Nb-Hf alloy hlau | Txoj kab uas hla {{0}} 1-3.0 mm | ||
Nb-Hf Alloy Disc & Lub Hom Phiaj | ASTM B 652 Cov khoom lag luam | Lub Hom Phiaj: | |
Nb-Hf Alloy Crucible | Puab: Lub tog raj kheej, Tub ntxhais, lub nkoj duab plaub | Customized | Customized |
Lub cev muaj zog ntawm C103 Niobium Alloy
| C-103 Lub cev muaj zog | |||||||
Cov khoom | Kev sib xyaw | Qhov ceev / g·cm-3 | Kub kub / ˚C | Coefficient of Line-expansion/10-6K-1 | Recrystallization Kub / ˚C | Anneal Temperature/˚C | Elongation Brittle Transition Temperature/˚C |
C-103 | Nb-10Hf-1Ti-0.7Zr-0.1W-0.1Mo-0.05Ta | 8.86 | 2349 | 4.5 (1203˚C) | 1038 - 1316 | 871 | - 196 |
Mechanical Properties ntawm C103 Niobium Alloy
Ntawv, Ntawv, Sawb thiab Phaj | |||
Qhov kawg Tensile Strength, Min, Psi (MPa) | Yield Strength (0.2 feem pua offset), Min, Psi (MPa) | Elongation hauv 1 Hauv. (25 hli) Gage Length, Min, feem pua | |
Khoom siv 0.05 nyob rau hauv. (1.3 mm) thiab nyias: | |||
Chav kub | 56 000 (385) | 40 000 (275) | 20 |
2000 ± 25 ° F | 21 000 (145) | 16 000 (110) | 20 |
Cov khoom loj dua 0.05 nyob rau hauv. (1.3 mm) thickness: | |||
Chav kub | 54 000 (370) | 38 000 (260) | 20 |
2000 ± 25 ° F | 21 000 (145) | 16 000 (110) | 20 |
Qws, Bar thiab Hlau | |||
Qhov kawg Tensile Strength, Min, Psi (MPa) | Yield zog (0.2 feem pua offset), Min, Psi (MPa) | Elongation Hauv 1 Hauv.(25 mm) Gage Length, Min, feem pua | |
Khoom siv 0.050 nyob rau hauv. (1.27 mm) thiab me me txoj kab uas hla: | |||
Chav kub | 56 000 (385) | 40 000 (275) | 20 |
2000 ± 25 ° F | 21 000 (145) | 16 000 (110) | 20 |
Khoom siv 0.051 nyob rau hauv. (1.30 mm) thiab loj nyob rau hauv txoj kab uas hla: | |||
Chav kub | 54 000 (370) | 38 000 (260) | 20 |
2000 ± 25 ° F | 21 000 (145) | 16 000 (110) | 20 |
Cov khoom kub kub ntawm C103 Niobium Alloy
C-103 Cov Khoom Kub Kub Kub | |||||||
Cov khoom | Kev sib xyaw | Cov duab | Kub kub / ˚C | Tensile zog / MPa | Kub kub / ˚C | Modulus ntawm Elasticity | Lub zog tawg / MPa |
C-103 | 10Hf, 1 Ti, 0.7Zr | Daim ntawv | 1093 | 189.8 | - | 112 490 | - |
C-103 Niobium Alloy Daim Ntawv Thov thiab Lwm Cov Kev Lag Luam
● Kev Tshawb Fawb & Kev Tshawb Fawb
● Metallurgy
● Aerospace
● Aviation
● Milltary
● Khoom siv science
Chemical Identifiers
Linear Formula | Nb-89 feem pua Hf-10 feem pua Ti-1 feem pua |
MDL Number | N/A |
EC No. | N/A |
Pubchem CID | 19751102 |
IUPAC npe | hafnium; niobium; titanium (2 ntxiv) |
SMILES | [Ti plus 2].[Nb plus 2].[Hf plus 4] |
InchI ID nkag mus | InChI=1S/Hf.Nb.Ti/q plus 4; 2* plus 2 |
InchI Key | YZMOKPJTVNUKTK-UHFFFAOYSA-N |
Niobium C-103 Alloy Properties (Theoretical)
Compound Formula | Nb/Hf/Ti |
Qhov tshwm sim | Cov khoom siv hlau hauv ntau hom |
Melting Point | 2350 ± 50 degree |
Boiling Point | N/A |
Qhov ntom | 8.85 g / cm²3 |
Solubility hauv H2O | N/A |
Hluav taws xob Resistivity | 0 0000313 - 0.0000352 ω-cm |
Tshwj xeeb kub | 0.082 BTU/degree F/lb |
Thermal conductivity | 22. 0 Btu/hr - ft2 - degree F/ft (1600 degree F) |
Thermal Expansion | 3.9 nyob rau hauv / hauv / degree F (400 degree F) |
Monoisotopic pawg | 320,801 g / mol |
Niobium C-103 Alloy Health & Safety Information
Lus Cim | Kev phom sij |
Cov Lus Qhia Txog Hazard | H228 |
Hazard Codes | F |
Cov Lus Qhia Ua Ntej | P210-P280-P240-P241-P370 plus P378 |
Flash Point | N/A |
Risk Codes | N/A |
Cov lus hais txog kev nyab xeeb | N/A |
Cov ntaub ntawv thauj mus los | UN3089 4.1/PG II |
GHS Daim duab |
|
