PRODUCTS
Muaj nuj nqi
CAS Nr .: | 7440-03-1 |
Txuj: | ASTM B 392-98 |
Purity: | 99.5 feem pua, 99.9 feem pua, 99.95 feem pua |
Nto: | Polished |
Loj: | Txoj kab uas hla: {{0}} 2-3.0mm |
Pob: | <1.5mm on="" spool,="">1.5mm nyob rau hauv coil, ncaj hlau |
Khoom Qib: | R04200-Type 1 -Reactor qib unalloyed niobium R04210-Type 2 -Cov qib lag luam tsis muaj niobium |

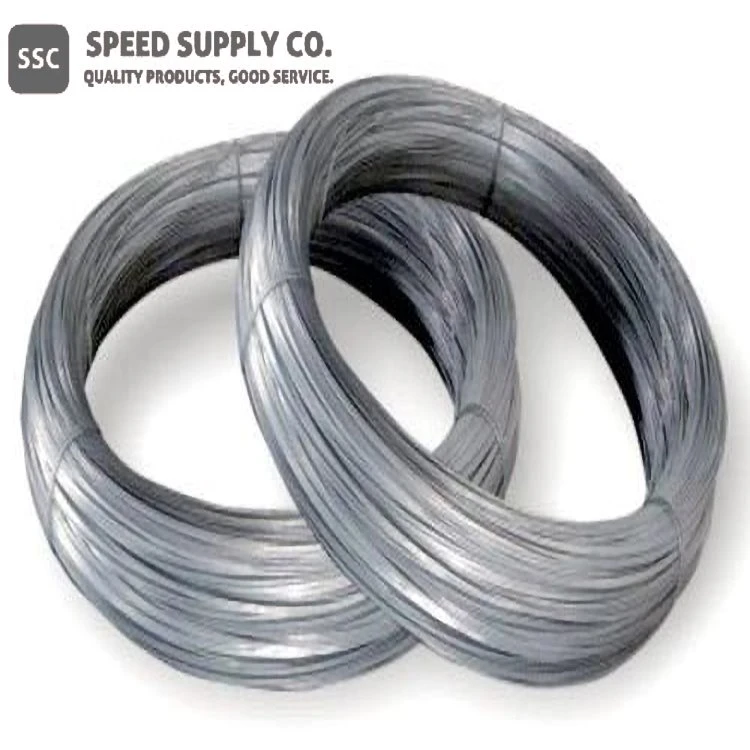

Niobium Hlau Description
Niobium yog ib qho lustrous, grey hlau nrog tsawg toxicity thiab zoo li tsis muaj kev cuam tshuam rau tarnish. Nws cov khoom tshwj xeeb raws li cov hlau reactive ua rau niobium coj tuaj yeem tswj tau, rov ua tau ntau yam xim thaum raug rau ntau qhov hluav taws xob hauv chav da dej hluav taws xob, txheej txheem hu ua anodization.
Niobium hlau yog dav siv rau steel, ceramics, electronics, nuclear zog industries, thiab superconductor technology.
SSC yog lub chaw muag khoom thoob ntiaj teb ntawm cov khoom zoo niobium hlau. Peb cov qauv hlau hlau qhov ntau thiab tsawg ntawm 0.2mm mus rau 3.0mm txoj kab uas hla nrog nruj tolerances thiab alpha qhov tseem ceeb (conductive resistance) rau kev siv xws li kev kuaj roj thiab ntsuas qhov ntsuas kub. Thov hu rau peb los tsim kev cai hlau alloys thiab ntsuas qhov ntau thiab tsawg. Peb kuj tuaj yeem muab Qws sab nraum qhov no.
Peb kuj tsim niobium ua hmoov, ingot, pieces, pellets, disc, granules thiab nyob rau hauv cov ntaub ntawv compound, xws li oxide. Lwm cov duab muaj nyob ntawm kev thov.
Tshuaj muaj pes tsawg leeg
Cov feem pua | ||||||||||||
Khoom siv | Cov ntsiab lus tseem ceeb | impurities (tsis ntau tshaj li ib feem pua) | ||||||||||
Nb | Fe | Si | Ni | W | Mo | Ti | Ta | O | C | H | N | |
R04200 | Tseem tshuav | 0.004 | 0.004 | 0.002 | 0.005 | 0.005 | 0.002 | 0.05 | 0.012 | 0.0035 | 0.0012 | 0.003 |
R04210 | Tseem tshuav | 0.01 | 0.01 | 0.005 | 0.02 | 0.01 | 0.004 | 0.07 | 0.015 | 0.0050 | 0.0015 | 0.005 |
Mechanical Specification (annealed condition) ntawm peb Niobium Hlau
Qib | Tensile zog, δb psi (MPa), Ntau dua lossis sib npaug | Yield zog, δ0.2, psi (MPa), Ntau dua lossis sib npaug | Elongation nyob rau hauv 1 "/ 2" gage ntev, feem pua, Ntau tshaj los yog sib npaug rau |
R04200, R04210 | 18000 (125) | 10500 (73) | 25 |
Cov cai tshwj xeeb ntawm Niobium Qws kom pom zoo rau kev sib tham | |||
Niobium Hlau Daim Ntawv Thov thiab Lwm Yam Kev Lag Luam
● Hlau
● Ceramics
● Electronics
● Nuclear zog
● Superconductors
● Melted cam khwb cia ingots
● Alloying agents
● Electronics
● Material Science
● Kho mob
● Aerospace
● Aviation
● Kev Tshawb Fawb & Kev Tshawb Fawb
Chemical Identifiers
Linear Formula | Nb |
MDL Number | PAB 00011126 |
EC No. | 231-113-5 |
Beilstein/Reaxys No. | N/A |
Pubchem CID | 23936 |
SMILES | [Nb] |
InchI ID nkag mus | InChI=1S/Nb |
InchI Key | GUCVJGMIXFAOAE-UHFFFAOYSA-N |
Niobium Hlau Khoom (Theoretical)
Molecular Luj | 92.9 |
Qhov tshwm sim | Nyiaj |
Melting Point | 2468 degree |
Boiling Point | 4 742 ygo |
Qhov ntom | 8.57 g / cm²3 |
Solubility hauv H2O | N/A |
Hluav taws xob Resistivity | 12.5 microhm-cm @ 0 degree |
Electronegativity | 1.6 Pauling |
Kub ntawm Vaporization | N/A |
Poisson tus ratio | 0.4 |
Tshwj xeeb kub | 0.064 Cal/g/K @ 25 degree |
Tensile zog | N/A |
Thermal conductivity | 0.537 W/cm/K @ 298.2 K |
Thermal Expansion | 7.3 µm/(m·K) |
Vickers Hardness | 1320 MPa rau |
Young's Modulus | 105 GPa |
