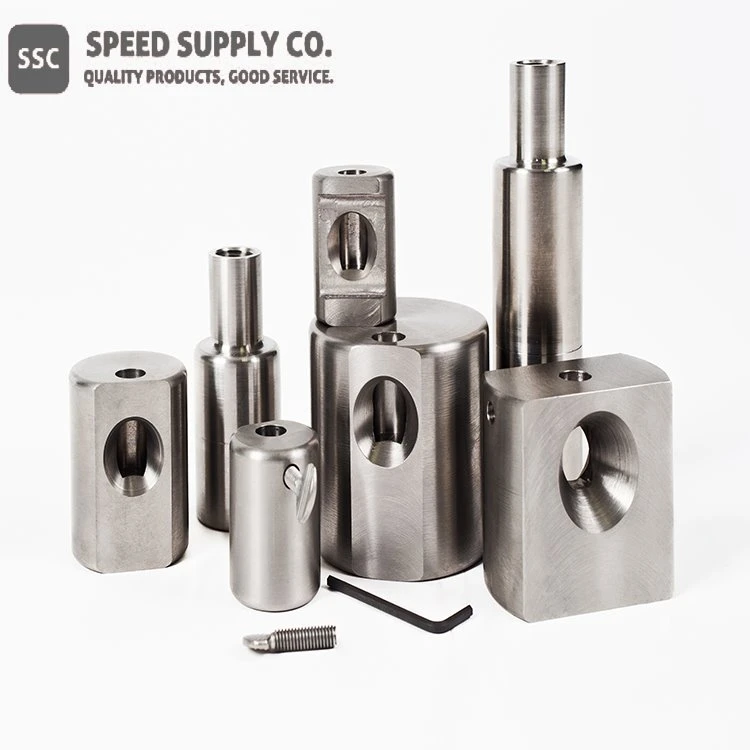

Tungsten Alloy Collimator

Linear Formula: W-Ni-Cu, W-Ni-Fe

Muaj nuj nqi

Linear Formula:	W-Ni-Cu, W-Ni-Fe
Khoom siv:	W-90 feem pua Ni-6 feem pua Cu-4 feem pua , W-92.5 feem pua Ni-4.5 feem pua Cu-3 feem pua , W{ {8}} feem pua Ni-3.5 feem pua Cu-1.5 feem pua W-90 feem pua Ni-7 feem pua Fe-3 feem pua , W-92.5 feem pua Ni-5.25 feem pua Fe-2.25 feem pua , W-95 feem pua Ni-3.5 feem pua Fe-1.5 feem pua , W-97 feem pua Ni-2.1 feem pua Fe-0.9 feem pua
Txuj:	ASTM B777, MIL-T -21014
Nto:	Xaus txoj siav, Milling, Sib Tsoo
Loj:	Raws li kos duab

Tungsten Alloy Collimator Description

Tungsten alloy collimator yog siv los kho cov kev taw qhia ntawm lub nqaj ntawm qhov hais los yog nthwv dej. Lub collimator zoo tuaj yeem pab txo cov hluav taws xob tawg uas nyob rau hauv lem ua rau radiographs nrog rhiab heev. SSC's tungsten alloy collimators yog tsim los ntawm peb cov khoom zoo tungsten hnyav alloys uas tsis muaj tshuaj lom thiab tsis muaj kuab lom. Qhov ceev yog nyob nruab nrab ntawm 17.0g/cm3 thiab 18.6g/cm3. Tungsten alloy collimators muaj peev xwm nqus tau hluav taws xob zoo heev.

Lub cev thiab cov cuab yeej cuab tam ntawm tungsten Alloy (W-Ni-Fe & W-Ni-Cu):

Lub npe	90 wb	92.5 wb	95 wb	97 wb	90 NWs	95 NWs
Khoom siv	90% wb 7% Nim 3% Fe	92.5% wb 5.25% Nws 2.25% Fe	95% wb 3.5% Nws 1.5% Fe	97% wb 2.1% Nws 0.9 feem pua Fe	90% wb 6% Nim 4% Cu	95% wb 3.5% Nws 1.5% Cu
Qhov ceev (g / cc)	17 gm/cc	17.5 g / c	18 gm/cc	18.5 g / c	17 gm/cc	18 gm/cc
Ceev (lbs/in3)	0.614	0.632	0.65	0.668	0.614	0.65
Mil. Spec. T-21014 D	Chav kawm 1	Chav kawm 2	Chav kawm 3	Chav Kawm 4	Chav kawm 1	Chav kawm 3
ASTM-B777 Cov khoom lag luam	Qib 1	Qib 2	Qib 3	Qib 4	Qib 1	Qib 3
Hom	Type II & III	Type II & III	Type II & III	Type II & III	Type II & III	Type II & III
Hardness; Rockwell C	25	26	27	28	24	27
Qhov kawg Tensile zog; PSI	110,000	110,000	105,000	100,000	94,000	94,000
Yield zog, 2 feem pua Offset; PSI	75,000	75,000	75,000	75,000	75,000	75,000
Elongation, feem pua hauv 1 "	5 plus ib	2 plus	3 plus ib	2 plus	2 plus	2 plus
Raws li Elastic Limit; PSI	52,000	46,000	44,000	45,000	45,000	45,000
Modulus ntawm Elasticity; PSI	45 x 10E6	47 x 10E6	50 x 10E6	53 x 10E6	40 x 10E6	45 x 10E6
Coefficient ntawm Thermal Expansion x 10E-6/degree (20 degree - 400} degree)	4.8	4.6	4.6	4.5	5.4	4.4
Thermal conductivity; CGS units	0.18	0.2	0.26	0.3	0.23	0.33
Hluav taws xob conductivity; feem pua IACS	10	13	13	17	14	16
Magnetic Properties	Magnetic me ntsis	Magnetic me ntsis	Magnetic me ntsis	Magnetic me ntsis	NIL	NIL
