Muaj nuj nqi
Khoom siv: | CP Titanium, Titanium Alloy |
Txuj: | AMS, ASTM, AWS |
Nto: | Black oxide, Pickled, Polished (Dia. >1. 0 hli) |

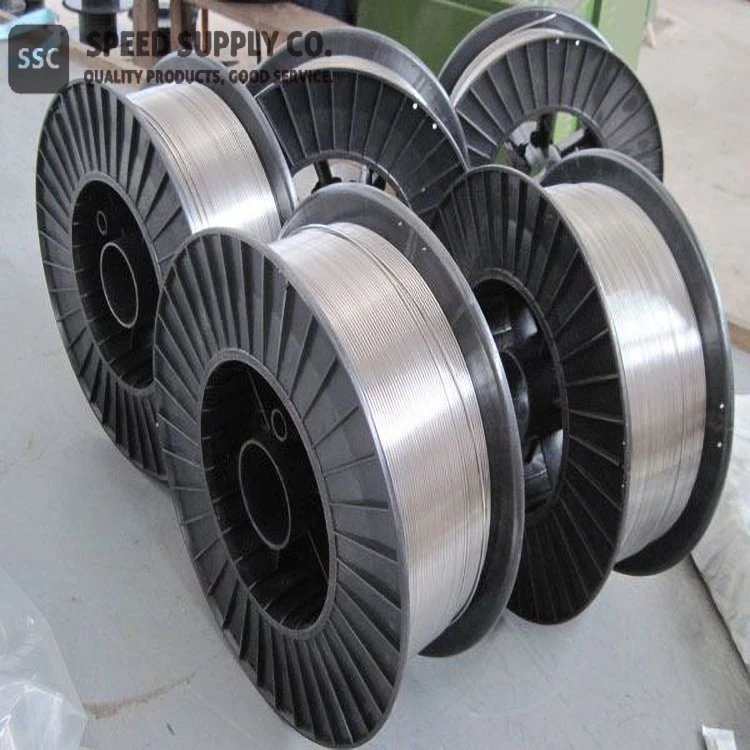

Cov duab: | Ncaj hlau, Coiled hlau (kaw-packed thiab tsis tu ncua pob), ntawm spool |
Loj: | Ncaj hlau: |
Titanium Hlau Description
Titanium yog ib qho kev hloov pauv hlau nrog cov xim nyiaj, tsis tshua muaj siab, thiab lub zog siab. Titanium tiv taus corrosion hauv dej hiav txwv, aqua regia, thiab chlorine. Hauv cov chaw tsim hluav taws xob, titanium tuaj yeem siv rau hauv qhov chaw condensers.
Ntshiab titanium muaj zog dua li cov hlau uas muaj cov pa roj carbon tsawg, tab sis 45 feem pua sib dua. Nws tseem yog ob zaug muaj zog li tsis muaj zog aluminium alloys tab sis tsuas yog 60 feem pua hnyav dua. Ob qho khoom siv zoo tshaj plaws ntawm cov hlau yog corrosion kuj thiab lub zog-rau-qhov sib piv, qhov siab tshaj plaws ntawm cov khoom siv hlau. Lub corrosion kuj ntawm titanium alloys ntawm ib txwm kub yog txawv txawv. Titanium qhov kev tiv thaiv corrosion yog tsim los ntawm kev ruaj khov, tiv thaiv oxide txheej. Txawm hais tias "kev lag luam ntshiab" titanium muaj cov khoom siv tau zoo thiab tau siv rau orthopedic thiab kho hniav cog, rau feem ntau cov ntawv thov titanium yog alloyed nrog me me ntawm txhuas thiab vanadium, feem ntau 6 feem pua thiab 4 feem pua, raws li qhov hnyav. Qhov sib tov no muaj cov khoom solubility uas sib txawv heev nrog rau qhov kub thiab txias, tso cai rau nws los nag lossis daus ntxiv.
Titanium alloys yog cov hlau uas muaj kev sib xyaw ntawm titanium thiab lwm yam tshuaj lom neeg. Xws li cov alloys muaj zog tensile siab heev thiab toughness (txawm thaum huab cua kub). Lawv yog lub teeb hauv qhov hnyav, muaj qhov txawv txav tsis zoo thiab muaj peev xwm tiv taus qhov kub thiab txias.
titanium hlau tuaj yeem siv los ua cov hlau lead rau cov pacemakers, ntaub plaub rau kev sib txuas prostheses rau cov pob txha, pins, fasteners, thiab cov ntxaij vab tshaus rau kev kho mob thiab kho hniav, aircraft thiab automotive springs, thiab on-board fuel filtration systems hauv satellites. Tsis tas li ntawd, titanium hlau kuj tseem siv tau los ua txhuam txhuam rau kev ntxuav cov khoom siv hluav taws xob, cov ntaub lim dej thiab cov pas nrig tiv thaiv corrosion.
Dhau li ntawm cov xaim tsis tu ncua, vuam hlau, cov xaim tiaj tus, cov xaim duab plaub thiab cov xaim square kuj muaj nyob ntawm SSC.
Qib thiab Standards
Khoom Qib | Standard specification |
Kev lag luam Pure | ASTM B 348 Qib 1,2,3,4 |
Ti Alloy 6Al 4V | ASTM B 348 Qib 5 |
Titanium Alloy 6Al 4V ELI | ASTM F 136 |
Titanium Alloy Ti 0.2Pd | ASTM B 348 Qib 7 & 11 |
Titanium Alloy Ti 0.3 Mo .8Ni | ASTM B 348 Qib 12 |
Titanium alloy 5Al 2.5Sn | TIAB SA 4953 |
Tom ntej: Titanium Alloy 3Al 2.5V | ASTM B 348 Qib 9 |
Titanium Alloy Ti 6Al 7Nb | ASTM F 1295 Cov Lus Qhia Tshwj Xeeb |
Titanium Hlau Daim Ntawv Thov thiab Lwm Yam Kev Lag Luam
● Titanium vuam hlau
● MMO Hlau Anodes
● Cov hlau lead rau cov pacemakers
● Wool rau kev sib txuas prostheses rau pob txha
● Pins
● Fasteners
● Cov tshuaj ntsuam rau cov khoom kho mob thiab kho hniav
● Aircraft thiab automotive springs
● On-board roj pom systems hauv satellites
● Txhuam spines los ntxuav cov cua kub exchangers
● Cov ntaub lim dej
● Corrosion resistant rods
● iav thav duab
● 3D Luam Ntawv
● Hluav taws xob
● Kev lag luam
Titanium Physical Properties
Qib | Qhov kawg Tensile Strength Min. | Yield zog | Elongation feem pua | Txo Cheeb Tsam feem pua | Qhov xwm txheej | ||
KSI | MPa | KSI | MPa | ||||
1 | 35 | 240 | 20 | 138 | 24 | 30 | Raws li teev (zoo) |
2 | 50 | 345 | 40 | 275 | 20 | 30 | Raws li teev (zoo) |
3 | 64 | 450 | 55 | 380 | 18 | 30 | Raws li teev (zoo) |
4 | 80 | 550 | 70 | 483 | 15 | 25 | Raws li teev (zoo) |
5 | 130 | 895 | 120 | 828 | 10 | 25 | Raws li teev (zoo) |
6 | 115 | 792 | 110 | 758 | 10 | 25 | Forged Bars |
7 | 50 | 345 | 40 | 275 | 20 | 30 | Raws li teev (zoo) |
9 | 90 | 620 | 70 | 483 | 15 | 25 | Raws li teev (zoo) |
11 | 35 | 240 | 20 | 138 | 24 | 30 | Raws li teev (zoo) |
12 | 70 | 483 | 50 | 345 | 18 | 25 | Raws li teev (zoo) |
16 | 50 | 345 | 40 | 275 | 20 | 30 | Raws li teev (zoo) |
17 | 35 | 240 | 25 | 170 | 24 | 30 | Raws li teev (zoo) |
23 | 120 | 828 | 110 | 759 | 10 | 25 | Beta-Annealed |
Titanium Khoom Qib
CP Titanium khoom
Qib 1
Qib 2
Qib 2H (Qib 2 nrog 58 ksi yam tsawg kawg nkaus UTS)
Qib 3
Qib 4
Titanium alloy
Qib 5 (6% Al, 4% V)
Qib 7 (0.12 txog 0.25 feem pua Pd)
Qib 7H (0.12 txog 0.25 feem pua Pd) (Qib 7 nrog 58 ksi yam tsawg kawg nkaus UTS)
Qib 9 (3 feem pua Al, 2.5 feem pua V)
Qib 11 (0.12 txog 0.25 feem pua Pd)
Qib 12 (0.3 feem pua Mo, 0.8 feem pua Ni)
Qib 13 (0.5 feem pua Ni, 0.05 feem pua Ru)
Qib 14 (0.5 feem pua Ni, 0.05 feem pua Ru)
Qib 15 (0.5 feem pua Ni, 0.05 feem pua Ru)
Qib 16 (0.04 txog 0.08 feem pua Pd)
Qib 16H (0.04 txog 0.08 feem pua Pd) (Qib 16 nrog 58 ksi yam tsawg kawg nkaus UTS)
Qib 17 (0.04 txog 0.08 feem pua Pd)
Qib 18 (3 feem pua Al, 2.5 feem pua V, 0.04 txog 0.08 feem pua Pd)
Qib 19 (3% Al, 8% V, 6% Cr, 4% Zr, 4% Mo)
Qib 20 (3 feem pua Al, 8 feem pua V, 6 feem pua Cr, 4 feem pua Zr, 4 feem pua Mo, 0.04 feem pua – 0.08 feem pua Pd)
Qib 21 (15 feem pua Mo, 3 feem pua Al, 2.7 feem pua Nb, 0.25 feem pua Si)
Qib 23 (6 feem pua Al, 4 feem pua V, nrog cov ntsiab lus qis qis, ELI)
Qib 24 (6 feem pua Al, 4 feem pua V, 0.04 feem pua rau 0.08 feem pua Pd)
Qib 25 (6 feem pua Al, 4 feem pua V, 0.3 feem pua rau 0.8 feem pua Ni thiab 0.04 feem pua rau 0.08 feem pua Pd)
Qib 26 (0 08 txog 0.14 feem pua Pd)
Qib 26H (0.08 txog 0.14 feem pua Pd) (Qib 26 nrog 58 ksi yam tsawg kawg nkaus UTS)
Qib 27 (0.08 txog 0.14 feem pua Pd)
Qib 28 (3 feem pua Al, 2.5 feem pua V, 0.08–0.14 feem pua Ru)
Qib 29 (6 feem pua Al, 4 feem pua V, ELI, ntxiv rau 0.08 rau 0.14 feem pua Ru)
Qib 30 (0.3 feem pua Co, 0.05 feem pua Pd)
Qib 31 (0.3 feem pua Co, 0.05 feem pua Pd)
Qib 32 (5 feem pua Al, 1 feem pua tin, 1 feem pua Zr, 1 feem pua V, 0.8 feem pua Mo)
Qib 33 (0.4 feem pua Ni, 0.015 feem pua Pd, 0.025 feem pua Ru, 0.15 feem pua Cr)
Qib 34 (0.4 feem pua Ni, 0.015 feem pua Pd, 0.025 feem pua Ru, 0.15 feem pua Cr)
Qib 35 (4.5 feem pua Al, 2 feem pua Mo, 1.6 feem pua V, 0.5 feem pua hlau, 0.3 feem pua Si)
Qib 36 (45 feem pua Nb)
Qib 37 (1.5 feem pua Al)
Qib 38 (4 feem pua Al, 2.5 feem pua V, 1.5 feem pua Fe)
