Muaj nuj nqi
Khoom siv: | Gr1, Gr2 (CP Ti) |
Txuj: | ASTM B265 |
Txheej txheem: | Expanded, Stamped |
Nto: | Pickled |
Loj: | 1000mm x 2000mm, 1000mm x 3000mm, Los yog Customized |

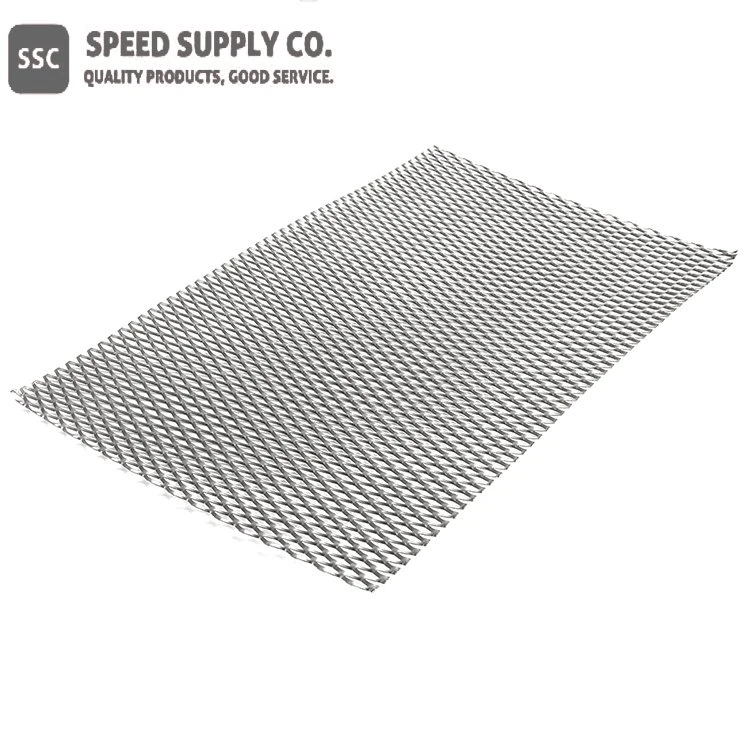

Titanium Mesh Description
Titanium muaj lub zog zoo khaws cia rau hauv qhov kub txog li 800 K, yog 30 feem pua ntawm cov hlau, thiab ob zaug muaj zog li txhuas. Nws kuj yog lub teeb yuag (50 feem pua sib dua li cov hlau) thiab ua kom pom kev zoo corrosion kuj.
Titanium thiab nws cov alloy machining Cheebtsam yog dav siv nyob rau hauv txhua yam ntawm cov tshuab xws li cov cuab yeej kho mob thiab petrochemical khoom.
Titanium mesh (expanded mesh & stamped mesh) yog tsim los ntawm expanding los yog stamping ntawm titanium ntawv, uas yog ASTM B265 tau teev tseg coj mus muag ntshiab titanium ntawv. Lub zog rau alloyed titanium yog siab dhau los ua stamped lossis nthuav dav. Qhov dav ntawm lub mesh peb tuaj yeem muab tau yuav zoo ib yam nrog cov ntawv, qhov ntev ntawm stamped mesh yog tib yam li daim ntawv thaum qhov ntev ntawm qhov nthuav mesh nyob ntawm qhov qhib & daim ntawv loj.
Titanium muaj ob qho khoom siv tau zoo tshaj plaws, tshwj xeeb corrosion tsis kam thiab siab tshaj lub zog-rau-hnyav piv ntawm cov hlau. Cov ntaub ntawv titanium tuaj yeem siv tau rau ntau qhov chaw, xws li kev lag luam tshuaj lom neeg thiab hluav taws xob. Titanium mesh feem ntau yog siv los ua titanium anode thiab lim ntsiab hauv kev lag luam chlor-alkali thiab lwm yam kev lag luam chemical.
Specification rau Titanium Mesh
Yam khoom npe | Titanium Expanded Mesh | Titanium Stamped Mesh |
Khoom siv | Gr1, Gr2 (CP Ti) | Gr1, Gr2 (CP Ti) |
Kev ua haujlwm | Nthuav | stamped |
Qhib | Pob zeb diamond Openings, raws li nram no specifications | Circular Holes los yog lwm yam kev cai zoo. Qhib qhov loj dua titanium ntawv tuab. |
Zuag qhia tag nrho | Raws li cov specifications hauv qab no | Max: 1m dav x 2m Length Max |
Qhib Loj thiab Mesh Tag Nrho Loj rau Titanium Expanded Mesh
Daim ntawv Thickness | Dav x Ntev | Mesh Qhib Loj | Mesh Stem |
{0}.3mm ~ 0.8mm | 1000mm x 2000mm | 50 mm x 25 mm | 2. 0 hli |
20 mm x 10 mm | 2. 0 hli | ||
20 mm x 7 mm | 2. 0 hli | ||
16 mm x 8 mm | 1.5 hli -2 0mm | ||
15mm x 5.5 hli | 1.5 hli -2 0mm | ||
13 x 7 mm | 1.5 hli -2 0mm | ||
12.5mm x 4.5 hli | 1.5 hli -2 0mm | ||
12,5 x 6 mm | 1.5 hli -2 0mm | ||
10 mm x 5 mm | <> | ||
8 x5mm | <> | ||
6mm x 3 | <> | ||
4.6mm x 2.5 hli | <> | ||
4mm x 3 mm | <> | ||
3mm x 2 mm | <> |
Lub npe qhib loj yuav raug txwv los ntawm daim ntawv thickness thiab zaum kawg mesh thickness. Titanium nthuav dav mesh tuaj yeem muab tau raws li flattened thiab unflattened, nws yuav muab tau raws li un-flattened yog tsis muaj tshwj xeeb yuav tsum tau.
EXPANDED MESH - HOM A: STANDARD EXPANDED MESH
Nws yog thawj thiab nrov tshaj plaws ntawm nthuav mesh nrog cov paub pob zeb diamond zoo li qhib. Cov strands tau tig ntawm lub kaum ntse ntse rau lub dav hlau ntawm daim ntawv muab qhov pom qhov pom zoo rau cov khoom tiav. Qhov kawg mesh thickness yuav loj dua cov ntaub ntawv tuab.
EXPANDED MESH - HOM B: FLATTENED EXPANDED MESH
Nws yog tsim los ntawm kev dhau cov txheej txheem mesh los ntawm cov yob hnyav uas flatten lub strands thiab txuas hniav kom muab tag nrho cov theem saum npoo. Cov txheej txheem no, uas txo qhov qub thickness los ntawm kwv yees li ib lub ntsuas, xa ib yam khoom tshwj xeeb tshaj yog haum rau cov ntawv thov uas yuav tsum tau muaj qhov slidable nto. Qhov kawg mesh thickness yuav zoo ib yam li raw titanium ntawv thickness.
Dhau li ntawm cov lus qhia tshwj xeeb, lwm qhov qhib qhov loj thiab qhov ntev tuaj yeem kho tau. Peb kuj muab titanium mesh nrog square thiab duab plaub qhib dua li pob zeb diamond qhib mesh. Nyias titanium mesh li 0.1mm yog muaj tam sim no.
Titanium Mesh daim ntaub ntawv thiab lwm yam lag luam
● Kub exchangers
● Condensers txhua yam corrosive fluid transmission pipeline systems
● Titanium tsheb kauj vab raj
● Cov kav dej hauv tsheb
● Offshore aquaculture, thiab lwm yam.
● Machinery
● Aerospace
● Lub dav hlau
● Automotive
● Kho mob
● Lub Hwj Chim Loj
● Electronics
● Tshuaj
Chemical Identifiers
Linear Formula | Ti |
MDL Number | PAB 00011264 |
EC No. | 231-142-3 |
Beilstein/Reaxys No. | N/A |
Pubchem CID | 23963 |
SMILES | [Ti] |
InchI ID nkag mus | InChI=1S/Ti |
InchI Key | RTAQQCXQSZGOHL-UHFFFAOYSA-N |
Titanium Mesh Properties (Theoretical)
Molecular Luj | 47. |
Qhov tshwm sim | Nyiaj |
Melting Point | 1668 degree |
Boiling Point | 3560 degree |
Qhov ntom | 4.54 g / cm²3 |
Solubility hauv H2O | N/A |
Crystal Phase / Qauv | Hexagonal |
Hluav taws xob Resistivity | 42 0 microhm-cm @ 20 degree |
Electronegativity | 1.45 Nws |
Kub ntawm Fusion | 14.15 kJ/mol |
Kub ntawm Vaporization | 425 kJ / mol |
Poisson tus ratio | 0.32 |
Tshwj xeeb kub | 0.125 Cal/g/K @ 25 degree |
Tensile zog | 140 MPa |
Thermal conductivity | 21.9 W/(m·K) @ 298.2 K |
Thermal Expansion | 8.6 µm·m-1·K-1(25 degree) |
Vickers Hardness | 830-3420 MPa |
Young's Modulus | 116 GPa |
Cim npe nrov: titanium mesh, Tuam Tshoj, lwm tus neeg, yuav, muag, ua nyob rau hauv Suav teb
