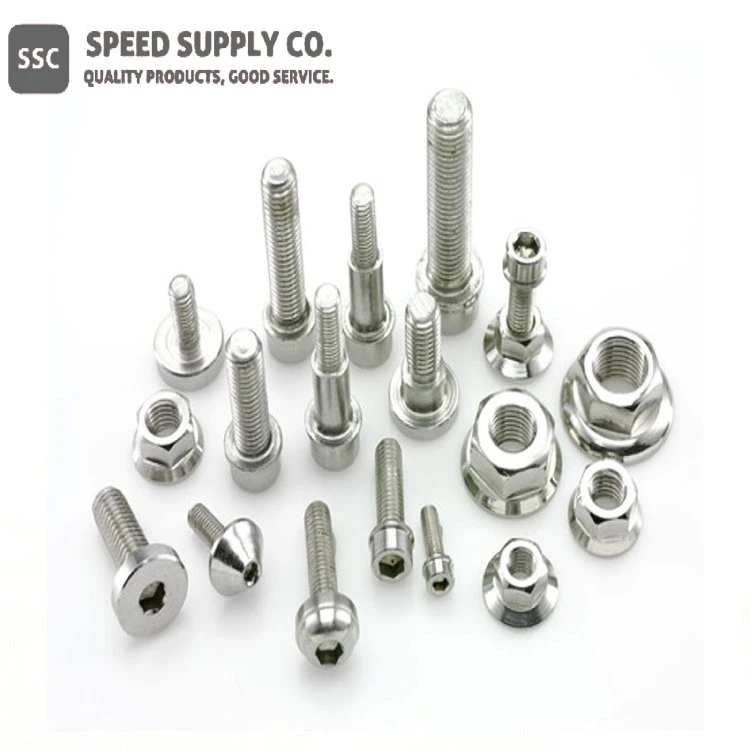

Titanium Fasteners

Khoom siv: CP Titanium & Titanium Alloy: Qib 1, Qib 2, Qib 5, Qib 7, Qib 9, thiab lwm yam.

Muaj nuj nqi

Khoom siv:	CP Titanium & Titanium Alloy: Qib 1, Qib 2, Qib 5, Qib 7, Qib 9, thiab lwm yam.
Txuj:	DIN, ISO, JIS, BS
Loj:	M1.0 - M24 lossis Customized

Titanium Fastener Description

Titanium fasteners yog qhov tseem ceeb hauv kev txo qhov hnyav ntawm kev sib dhos. Feem ntau, qhov hnyav ntawm kev siv titanium fasteners yog yuav luag ib nrab thiab lawv tsuas yog muaj zog npaum li cov hlau, nyob ntawm qib. Peb cov titanium fasteners tuaj yeem pom nyob rau hauv qhov ntau thiab tsawg, nrog rau ntau qhov ntau thiab tsawg kom haum rau txhua daim ntawv thov.

Vim lawv lub zog-rau-qhov hnyav piv thiab muaj peev xwm tiv taus corrosion zoo heev, titanium fasteners tau dav siv nyob rau hauv ntau qhov chaw xws li kev sib tw kev lag luam xws li kev sib tw maus taus / tsheb thiab caij nkoj nkoj, khoom siv kho mob, kev lag luam thiab lwm yam. Titanium fasteners muaj xws li: screws, ceev, ntxhua khaub ncaws, bolts. Tag nrho qhov hnyav ntawm ib lub dav hlau yuav raug txo los ntawm ntau pua mus rau txhiab phaus yog tias sib sau ua ke nrog titanium fasteners. Peb muab titanium ceev, titanium washer, titanium screws, titanium bolts thiab lwm yam titanium fasteners. Micro titanium fasteners kuj muaj.

Titanium fasteners yog qhov zoo tshaj plaws paub txog kev muaj zog, hnav, thiab corrosion resistant. Lawv yog cov tseem ceeb rau ntau yam lag luam xws li chlor alkali, marine, off-shore roj & roj, desalination, kho mob, thiab pulp & ntawv. Qib 2 thiab 5 yog cov qib siv ntau tshaj plaws ntawm titanium screws. Titanium screws muaj lub peev xwm tshwj xeeb kom rov kho lawv cov txheej txheem tiv thaiv kev tiv thaiv sai sai thaum muaj cov pa oxygen, ua rau lawv tsis muaj kev sib piv rau cov dej ntsev ib puag ncig.

Zoo ib yam li dej ntsev, titanium muaj zog, tiv thaiv oxide zaj duab xis uas rov tsim dua tshiab hauv cov pa oxygen ua rau nws tiv taus oxidizing ib puag ncig, thiab cov tshuaj chlorides, suav nrog hypochlorites, chlorates, perchlorates, sodium chlorite, thiab chlorine dioxide. Qhov kev tiv thaiv no muaj tseeb ntev npaum li cov dej noo tam sim no - uas tuaj yeem ua kom tsawg li 50ppm ntawm cov dej noo. Oxidizing ib puag ncig thaum tsis muaj dej tuaj yeem ua rau titanium sai corrode los yog txawm tawg. Titanium screws tsis tiv taus kom txo cov xov xwm thiab cov kua qaub.

Tsis tsuas yog titanium qib 5 fasteners muaj zog heev, muab 148 ksi UTS thiab 138ksi tawm los lawv kuj yog lub teeb tsis txaus ntseeg. Nrog ib tug ceev ntawm 4.51 g / cm3, titanium muaj nyob rau ntawm lub siab tshaj plaws lub zog-rau-qhov hnyav piv muaj rau kev lag luam. Titanium Qib 5 screws yog 4 npaug zog dua 316 stainless hlau ntawm ze li ntawm ib nrab ntawm qhov hnyav. Qhov no ua rau titanium fasteners zoo tagnrho rau cov ntawv thov uas xav tau ob qho tib si ntawm qhov hnyav thiab lub zog zoo xws li kev kho mob, tub rog thiab cov khoom ua si.

Cov qib feem ntau ntawm cov titanium fasteners yog Qib 2 (ua lag luam ntshiab Ti) thiab Qib 5 (Ti 6Al-4V - siab zog). Nrog rau ntau xyoo ntawm cov ntaub ntawv kev txawj ntse thiab kev lag luam, SSC tuaj yeem pab koj xaiv qhov zoo tshaj plaws titanium fastener rau koj daim ntawv thov.

Titanium Fastener Txheem

Txuj	Kev piav qhia	Txuj	Kev piav qhia
TSI 84	slotted cheese taub hau screws	TIAB SA 439	jam nuts
TSI 125	flat ntxhua khaub ncaws	TIAB SA 963	slotted countersunk tiaj taub hau screws
SIB 127	lub caij nplooj ntoos hlav xauv washers	TIAB SA 965	Phillips tiaj taub hau tshuab screws
TIAB SA 912	hex qhov (socket head cap) screws	TIAB SA 985	xauv txiv ntseej (nrog non-metallic insert)
DIN 913 / DIN 914 / DIN 915 / DIN 916	teem screws	DIN 1665 / DIN 6921	hex bolts nrog flange
TIAB SA 931	hex taub hau hau screws (ib feem xov)	DIN 6912 / DIN 7984 Cov	hexagon socket nyias lub taub hau hau screws
TIAB SA 933	hex taub hau hau screws (tag nrho xov)	TIAB SA 7991	flat head countersunk socket cap screws
TIAB SA 934	hex noob	TIAB SA 9021	lub tshuab ntxhua khaub ncaws

Khoom siv & Specification ntawm Titanium Fasteners

Khoom	Titanium Fasteners
Khoom siv	Qib 1, Qib 2, Qib 5, Qib 7, Qib 9, thiab lwm yam.
Specification	DIN933 DIN931 DIN6921 DIN934 DIN985 DIN6923 DIN125 DIN127 DIN9021 DIN975 DIN912 DIN7991 DIN963 DIN84 ISO7380
Loj	Titanium Bolt, Titanium Screws	Titanium txiv ntoo	Titanium Washer
	M3 rau M30 Ntev: 10mm -300mm	M3-M22	OD: 5mm -200mm ID: 1mm-100mm Thickness: 0.1mm-30mm

Qib thiab Cov Khoom

Qib Titanium	Tshuaj muaj pes tsawg leeg	Cov khoom
Qib 1 R50250 Kev lag luam ntshiab	C 0.10 max Fe 0.20 max H 0.015 max N 0.03 max O 0.18 max Tseem tshuav	MIN. TENSILE 35 KSI MIN. YIELD 25 KSI HARDNESS 14.9 TENSILE MODULUS 103 GPA POISSON'S RATION 0 34-0.40
Qib 2 R50400 Kev lag luam ntshiab	C 0.10 max Fe 0.30 max H 0.015 max N 0.03 max O 0.25 max Tseem tshuav	MIN. TENSILE 50 KSI MIN. YIELD 40 KSI HARDNESS 14.9 TENSILE MODULUS 103 GPA POISSON'S RATION 0 34-0.10
Qib 5 R56400 Ti-6Al-4V	AI 5.5-6.75 max C 0.10 max Fe 0.40 max H 0.015 max N 0.05 max O 0.20 max V 3.5-4.5 Tseem tshuav	MIN. TSI 130 KSI MIN. YIELD 120 KSI HARDNESS 16.4 TENSILE MODULUS 114 GPA POISSON'S RATION 0 30-0.33
Qib 7 R52400 Ti-0.15Pd	Pd 0 12-0.25 max C 0.10 max Fe 0.30 max H 0.015 max N 0.03 max O 0.25 max Tseem tshuav	MIN. TENSILE 50 KSI MIN. YIELD 40 KSI HARDNESS 14.9 TENSILE MODULUS 103 GPA POISSON'S RATION 0.37
Qib 9 R56320 Ti-3Al-2.5V	AI 2.5-3.5 C 0.05 max Fe 0.25 max H 0.013 max N 0.02 max O 0.12 max V 2.0-3.0 Tseem tshuav	MIN. TENSILE 90 KSI MIN. YIELD 70 KSI HARDNESS 13.0 TENSILE MODULUS 107 GPA POISSON'S RATION 0.34
Qib 12 R53400 Ti-0.3Mo-0.8Ni	C 0.08 max Fe 0.30 max H 0.0135 max Mo 02-0.4 N 0.03 max O 0.25 max Tseem tshuav	MIN. TENSILE 70 KSI MIN. YIELD 50 KSI HARDNESS 14.9 TENSILE MODULUS 103 GPA POISSON'S RATION 0.28
