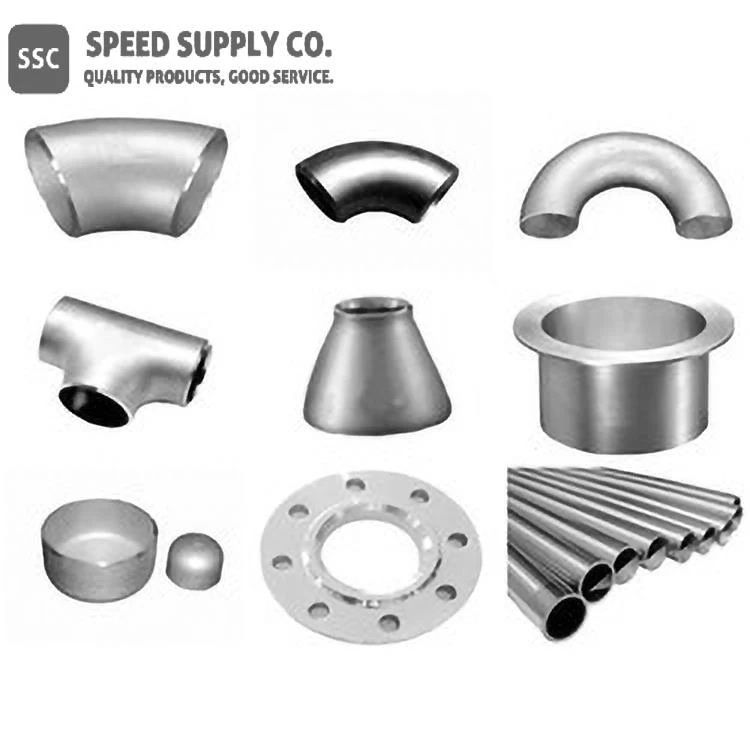

Titanium yeeb nkab fittings

Khoom siv: CP Titanium & Titanium Alloy: Gr1, Gr2, Gr7, Gr9, thiab Gr12

Muaj nuj nqi

Khoom siv:	CP Titanium & Titanium Alloy: Gr1, Gr2, Gr7, Gr9, thiab Gr12
Txuj:	AMSE B16.9, AMSE SB -363 / ASTM B363, DIN
Loj:	1/2 "mus rau 24" NPS

Kev piav qhia ntawm Titanium Yeeb Fittings

SSC muab titanium reducer, titanium stub kawg, titanium yeeb nkab plugs, titanium yeeb nkab txiv mis, titanium caps, titanium couplings, titanium bushings.) rau ASME B16.9 specification, cov ntaub ntawv nclude Gr1, Gr2, Gr7, Gr9, thiab Gr12.

Peb tsim ntau yam ntawm titanium yeeb nkab fittings thiab flanges. Lub luj tshib, tees, kaus mom, reducers thiab ntau yam ntawm flanges muaj. Cov khoom lag luam loj ntawm fittings thiab flanges tsim raws li B16.9 thiab B16.5 specification muab cov khoom lag luam loj rau kev xa khoom sai thoob ntiaj teb.

Sab nraud ntawm cov khoom lag luam peb tsim thiab muab tag nrho cov kev xaiv ntawm titanium fittings rau EU thiab US specifications thiab qauv.

Titanium flanges thiab fittings tuaj yeem pom nyob rau hauv ntau yam kev siv thiab kev teeb tsa. Lawv durability thiab lub zog ua rau lawv invaluable rau siv nyob rau hauv roj thiab roj pipelines, raws li zoo raws li nyob rau hauv marine daim ntaub ntawv. Lawv kuj tau nquag siv hauv kev sib dhos ntawm lub tsheb, qhov chaw uas lawv tuaj yeem tuav cov kav dej kom ruaj ntseg hauv qhov chaw. Peb nqa ntau cov khoom xaiv thiab feem ntau tuaj yeem xa tuaj hauv ib hnub lossis ob hnub. Rau cov khoom siv ib txwm, thov koj xav nug tus nqi thiab lub sijhawm ua haujlwm.

Specification rau Titanium Yeeb Fittings

Titanium Tee

Khoom	Titanium Butt Vuam Short Ceg Ncaj Tee	Titanium Butt Vuam Ntev ceg Ncaj Tee	Titanium Butt Vuam txo qhov hluav taws xob Tee	Xov Tee
Loj	1/2 "mus rau 24" NPS (MSS) Sch 10S thiab 40S	1/2 "mus rau 48" NPS (ASME) Sch 10S thiab Sch 40S 1/2 "mus txog 24" NPS (MSS) Sch 10S thiab Sch 40S	1/2 "x 1/2" x 1/4" txog 48" x 48" x 46" NPS Sch 10S thiab Sch 40S (ASME) 3/4 "x 3/4" x 1/2" rau 24" x 24" x 20" NPS Sch 10S thiab Sch 40S (MSS)	1/4"-4" NPS
Cov duab

Titanium Stub End

Khoom	Titanium Lap Joint Stub End - luv qauv	Titanium Lap Joint Stub End
Loj	1/2 "mus txog 24" NPS (ANSI & MSS) Sch 10S thiab Sch 40S	l/2" txog 24" NPS ANSI Sch1OS thiab Sch 40S
Cov duab

Titanium Reducer

Khoom	Titanium Concentric Reducer	Titanium Eccentric Reducer
Loj	3/4 "x 1/2" txog 36" x 34" NPS Sch 10S thiab Sch 40S	3/4" x 1-1/2" txog 36" x 34" NPS (ANSI) Sch 10S thiab Sch 40S 3/4" x 1/2" txog 24" x 20" NPS (MSS) Sch 10S thiab Sch 40S
Cov duab

Titanium luj tshib

Khoom	Titanium Luj Tshib, Ntev Radius Butt-Vuam 90 degree	Titanium luj tshib, luv Radius Butt-Vuam 90 degree	Titanium Luj Tshib, Ntev Radius Butt-Vuam 45 degree	Titanium luj tshib, xov 90 degree	Titanium Luj Tshib, Threaded 45 degree
Loj	1/2 "mus rau 48" NPS Sch 10S thiab 40S	1 "to 24" NPS Sch 10S thiab 40S	1/2 "mus rau 48" NPS Sch 10S thiab 40S	1/4 "mus rau 4" NPS	1/4 "mus rau 4" NPS
Cov duab

Qib thiab Cov Khoom

Qib Titanium	Tshuaj muaj pes tsawg leeg	Cov khoom
Qib 1 R50250 Kev lag luam ntshiab	C 0.10 max Fe 0.20 max H 0.015 max N 0.03 max O 0.18 max Tseem tshuav	MIN. TENSILE 35 KSI MIN. YIELD 25 KSI HARDNESS 14.9 TENSILE MODULUS 103 GPA POISSON'S RATION 0 34-0.40
Qib 2 R50400 Kev lag luam ntshiab	C 0.10 max Fe 0.30 max H 0.015 max N 0.03 max O 0.25 max Tseem tshuav	MIN. TENSILE 50 KSI MIN. YIELD 40 KSI HARDNESS 14.9 TENSILE MODULUS 103 GPA POISSON'S RATION 0 34-0.10
Qib 5 R56400 Ti-6Al-4V	AI 5.5-6.75 max C 0.10 max Fe 0.40 max H 0.015 max N 0.05 max O 0.20 max V 3.5-4.5 Tseem tshuav	MIN. TSI 130 KSI MIN. YIELD 120 KSI HARDNESS 16.4 TENSILE MODULUS 114 GPA POISSON'S RATION 0 30-0.33
Qib 7 R52400 Ti-0.15Pd	Pd 0 12-0.25 max C 0.10 max Fe 0.30 max H 0.015 max N 0.03 max O 0.25 max Tseem tshuav	MIN. TENSILE 50 KSI MIN. YIELD 40 KSI HARDNESS 14.9 TENSILE MODULUS 103 GPA POISSON'S RATION 0.37
Qib 9 R56320 Ti-3Al-2.5V	AI 2.5-3.5 C 0.05 max Fe 0.25 max H 0.013 max N 0.02 max O 0.12 max V 2.0-3.0 Tseem tshuav	MIN. TENSILE 90 KSI MIN. YIELD 70 KSI HARDNESS 13.0 TENSILE MODULUS 107 GPA POISSON'S RATION 0.34
Qib 12 R53400 Ti-0.3Mo-0.8Ni	C 0.08 max Fe 0.30 max H 0.0135 max Mo 02-0.4 N 0.03 max O 0.25 max Tseem tshuav	MIN. TENSILE 70 KSI MIN. YIELD 50 KSI HARDNESS 14.9 TENSILE MODULUS 103 GPA POISSON'S RATION 0.28
