Muaj nuj nqi
Khoom siv: | CP Titanium, Titanium Alloy |
Txuj: | ASTM B337, ASTM SB338, ASTM B861, thiab lwm yam. |
Txheej txheem: | Titanium Seamless Tube: Extruded yeeb nkab blanks yog txias dov thiab annealed. |
Nto: | Pickled, Polished |
Loj: | Titanium Seamless Tube: OD: 3.18mm txog 38.1mm Titanium Welded Tube: OD: 12.7mm txog 50.8mm |

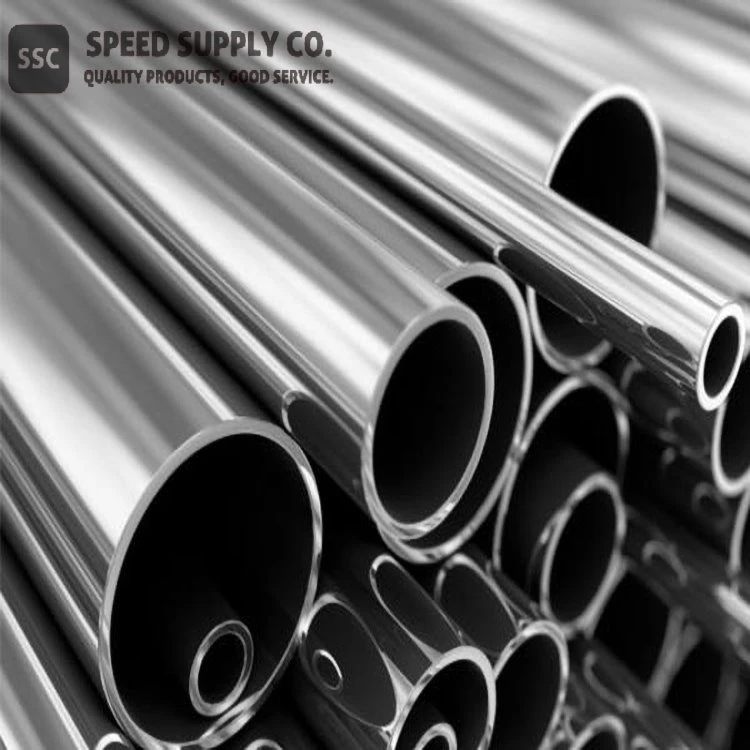

Titanium Tube Description
Titanium hlau yog nyiaj-grey xim thiab siab gloss, cuaj lub caij ntawm kev nplua nuj nyob rau hauv lub ntiaj teb crust, thiab tuaj yeem pom hauv meteorites. Nws muaj qhov tsis tshua muaj hluav taws xob conductivity thiab qis coefficient ntawm thermal expansion. Txij li thaum titanium muaj qhov ua tau zoo, nws lub cev muaj zog yog qib siab ntawm corrosion tsis kam rau feem ntau cov ntxhia hauv acids thiab chlorides. Nws muaj txhua yam khoom xws li hlau, muaj qhov kub thiab txias thiab yog lub teeb. Txij li thaum nws muaj kev tiv thaiv corrosion heev nws yog siv rau hauv kev tsim cov kiv cua shafts thiab lwm yam nkoj qhov chaw uas raug dej hiav txwv. Nws yog non-toxic, nonmagnetic thiab antiallergenic, biologically sib xws nrog tib neeg cov ntaub so ntswg thiab pob txha, uas ua rau nws yog ib qho zoo tagnrho cov khoom rau kev kho mob cog cov khoom. Titanium, ua ke nrog cov hlau xws li txhuas, chromium, hlau, molybdenum, tin, vanadium, zinc thiab lwm yam, tsim ntau yam alloys ntawm lub cev, tshuaj, qauv thiab cov khoom tshwj xeeb ntawm qhov sib txawv hardness, lub zog, toughness, corrosion resistance, oxidation thiab lwm yam tsim nyog. kev xav tau.
Titanium tube yog ib qho ntawm cov khoom siv titanium thiab muaj lub zog-rau-hnyav piv thiab corrosion kuj. Peb feem ntau faib titanium raj rau ob hom, ib qho yog hu ua seamless titanium raj, thiab lwm yam yog welded titanium raj.
Titanium raj yog lub teeb hauv qhov hnyav, siab zog, thiab zoo dua hauv cov khoom siv kho tshuab. Lawv tau siv dav hauv cov khoom siv hluav taws xob sib pauv, xws li lub raj thiab lub raj cua kub exchangers, coil heat exchangers, serpentine tube heat exchangers, condensers, evaporators, thiab conveying pipelines, thiab lwm yam.
Peb tseem tuaj yeem muab cov titanium raj coils rau kev siv cua sov thiab cua txias.
Qib thiab Standards
Khoom Qib | Standard specification |
Kev lag luam Pure | ASTM B 348 Qib 1,2,3,4 |
Ti Alloy 6Al 4V | ASTM B 348 Qib 5 |
Titanium Alloy 6Al 4V ELI | ASTM F 136 |
Titanium Alloy Ti 0.2Pd | ASTM B 348 Qib 7 & 11 |
Titanium Alloy Ti 0.3 Mo .8Ni | ASTM B 348 Qib 12 |
Titanium alloy 5Al 2.5Sn | TIAB SA 4953 |
Tom ntej: Titanium Alloy 3Al 2.5V | ASTM B 348 Qib 9 |
Titanium Alloy Ti 6Al 7Nb | ASTM F 1295 Cov Lus Qhia Tshwj Xeeb |
Titanium Tube Daim Ntawv Thov thiab Lwm Yam Kev Lag Luam
● Tube thiab raj kub exchangers
● Coil heat exchangers
● Serpentine raj kub exchangers
● Condenser
● Evaporators,
● Kev xa cov kav dej
● Titanium tsheb kauj vab raj
● Offshore aquaculture
● Machinery
● Aerospace
● Lub dav hlau
● Automotive
● Kho mob
● Lub Hwj Chim Loj
● Electronics
● Tshuaj
Titanium Physical Properties
Qib | Qhov kawg Tensile Strength Min. | Yield zog | Elongation feem pua | Txo Cheeb Tsam feem pua | Qhov xwm txheej | ||
KSI | MPa | KSI | MPa | ||||
1 | 35 | 240 | 20 | 138 | 24 | 30 | Raws li teev (zoo) |
2 | 50 | 345 | 40 | 275 | 20 | 30 | Raws li teev (zoo) |
3 | 64 | 450 | 55 | 380 | 18 | 30 | Raws li teev (zoo) |
4 | 80 | 550 | 70 | 483 | 15 | 25 | Raws li teev (zoo) |
5 | 130 | 895 | 120 | 828 | 10 | 25 | Raws li teev (zoo) |
6 | 115 | 792 | 110 | 758 | 10 | 25 | Forged Bars |
7 | 50 | 345 | 40 | 275 | 20 | 30 | Raws li teev (zoo) |
9 | 90 | 620 | 70 | 483 | 15 | 25 | Raws li teev (zoo) |
11 | 35 | 240 | 20 | 138 | 24 | 30 | Raws li teev (zoo) |
12 | 70 | 483 | 50 | 345 | 18 | 25 | Raws li teev (zoo) |
16 | 50 | 345 | 40 | 275 | 20 | 30 | Raws li teev (zoo) |
17 | 35 | 240 | 25 | 170 | 24 | 30 | Raws li teev (zoo) |
23 | 120 | 828 | 110 | 759 | 10 | 25 | Beta-Annealed |
Titanium Khoom Qib
CP Titanium khoom
Qib 1
Qib 2
Qib 2H (Qib 2 nrog 58 ksi yam tsawg kawg nkaus UTS)
Qib 3
Qib 4
Titanium alloy
Qib 5 (6% Al, 4% V)
Qib 7 (0.12 txog 0.25 feem pua Pd)
Qib 7H (0.12 txog 0.25 feem pua Pd) (Qib 7 nrog 58 ksi yam tsawg kawg nkaus UTS)
Qib 9 (3 feem pua Al, 2.5 feem pua V)
Qib 11 (0.12 txog 0.25 feem pua Pd)
Qib 12 (0.3 feem pua Mo, 0.8 feem pua Ni)
Qib 13 (0.5 feem pua Ni, 0.05 feem pua Ru)
Qib 14 (0.5 feem pua Ni, 0.05 feem pua Ru)
Qib 15 (0.5 feem pua Ni, 0.05 feem pua Ru)
Qib 16 (0.04 txog 0.08 feem pua Pd)
Qib 16H (0.04 txog 0.08 feem pua Pd) (Qib 16 nrog 58 ksi yam tsawg kawg nkaus UTS)
Qib 17 (0.04 txog 0.08 feem pua Pd)
Qib 18 (3 feem pua Al, 2.5 feem pua V, 0.04 txog 0.08 feem pua Pd)
Qib 19 (3% Al, 8% V, 6% Cr, 4% Zr, 4% Mo)
Qib 20 (3 feem pua Al, 8 feem pua V, 6 feem pua Cr, 4 feem pua Zr, 4 feem pua Mo, 0.04 feem pua – 0.08 feem pua Pd)
Qib 21 (15 feem pua Mo, 3 feem pua Al, 2.7 feem pua Nb, 0.25 feem pua Si)
Qib 23 (6 feem pua Al, 4 feem pua V, nrog cov ntsiab lus qis qis, ELI)
Qib 24 (6 feem pua Al, 4 feem pua V, 0.04 feem pua rau 0.08 feem pua Pd)
Qib 25 (6 feem pua Al, 4 feem pua V, 0.3 feem pua rau 0.8 feem pua Ni thiab 0.04 feem pua rau 0.08 feem pua Pd)
Qib 26 (0 08 txog 0.14 feem pua Pd)
Qib 26H (0.08 txog 0.14 feem pua Pd) (Qib 26 nrog 58 ksi yam tsawg kawg nkaus UTS)
Qib 27 (0.08 txog 0.14 feem pua Pd)
Qib 28 (3 feem pua Al, 2.5 feem pua V, 0.08–0.14 feem pua Ru)
Qib 29 (6 feem pua Al, 4 feem pua V, ELI, ntxiv rau 0.08 rau 0.14 feem pua Ru)
Qib 30 (0.3 feem pua Co, 0.05 feem pua Pd)
Qib 31 (0.3 feem pua Co, 0.05 feem pua Pd)
Qib 32 (5 feem pua Al, 1 feem pua tin, 1 feem pua Zr, 1 feem pua V, 0.8 feem pua Mo)
Qib 33 (0.4 feem pua Ni, 0.015 feem pua Pd, 0.025 feem pua Ru, 0.15 feem pua Cr)
Qib 34 (0.4 feem pua Ni, 0.015 feem pua Pd, 0.025 feem pua Ru, 0.15 feem pua Cr)
Qib 35 (4.5 feem pua Al, 2 feem pua Mo, 1.6 feem pua V, 0.5 feem pua hlau, 0.3 feem pua Si)
Qib 36 (45 feem pua Nb)
Qib 37 (1.5 feem pua Al)
Qib 38 (4 feem pua Al, 2.5 feem pua V, 1.5 feem pua Fe)
