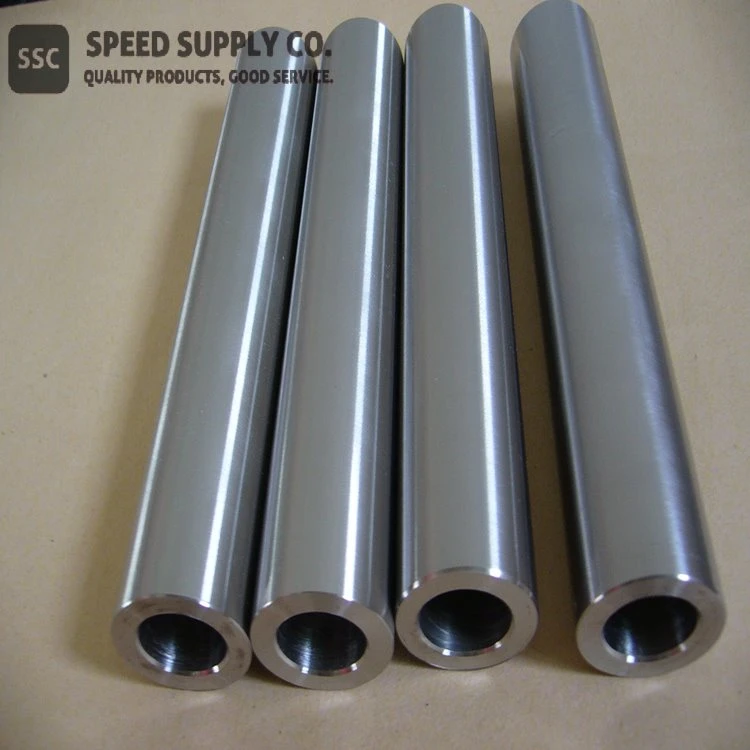

Titanium yeeb nkab

Titanium yeeb nkab

Khoom siv: CP Titanium, Titanium Alloy

Xa kev nug

Muaj nuj nqi

Khoom siv:

CP Titanium, Titanium Alloy

Txuj:

ASTM B337, ASTM B338, ASME SB338, ASTM B 861

Txheej txheem:

Titanium seamless kav yog txias dov los ntawm extruded yeeb nkab blanks.
Titanium welded kav yog tsim los ntawm titanium yeeb nkab coil.

Cov duab:

Yeeb

Loj:

NPS lossis customized

Titanium Pipe Description

Titanium thiab nws cov alloys yog cov ntaub ntawv txaus nyiam vim lawv qhov tshwj xeeb siab zog-qhov hnyav piv uas tau khaws cia ntawm qhov kub thiab txias thiab lawv qhov tshwj xeeb corrosion kuj. Daim ntawv thov loj ntawm titanium tau nyob hauv kev lag luam aerospace. Txawm li cas los xij, kev tsom mus rau kev lag luam kev lag luam los ntawm tub rog mus rau kev lag luam thiab aerospace mus rau kev lag luam kuj tau tshaj tawm.

Dimensions ntawm NPS Titanium Yeeb Nkab



Sch. 10S Lub Teeb IPS

Sch. 40S Std IPS

Sch. 80S Std IPS

npe. Yeeb Nkab Loj

Sab nraum Dia.

Phab ntsa tuab

Hauv Dia.

lbs / ft

Phab ntsa tuab

Hauv Dia.

lbs / ft.

Phab ntsa tuab

Hauv Dia.

lbs / ft

1/8"

.405

.049

.307

.1072

.068

.269

.1408

.095

.215

.1810

1/4"

.540

.065

.410

.1897

.088

.364

.2442

.119

.302

.3079

3/8"

.675

.065

.545

.2437

.091

.493

.3266

.126

.423

.4251

1/2"

.840

.083

.674

.3861

.109

.622

.4896

.147

.546

.6260

3/4"

1.050

.083

.884

.4932

.113

.824

.6506

.154

.742

.8479

1"

1.315

.109

1.097

.8078

.133

1.049

.9660

.179

.957

1.2495

1-1/4"

1.660

.109

1.442

1.0389

.140

1.380

1.3077

.191

1.278

1.7242

1-1/2"

1.900

.109

1.681

1.1996

.145

1.610

1.5637

.200

1.500

2.0893

2"

2.375

.109

2.157

1.5178

.154

2.067

2.1018

.218

1.939

2.8895

2-1/2"

2.875

.120

2.635

2.0315

.203

2.469

3.3331

.276

2.323

4.4080

3"

3.500

.120

3.260

2.4924

.216

3.068

4.3589

.300

2.900

5.8992

3-1/2"

4.000

.120

3.760

2.8611

.226

3.548

5.2412

.318

3.364

7.1950

4"

4.500

.120

4.260

3.2298

.237

4.026

6.2085

.337

3.826

8.6210

Specifications rau titanium welded yeeb nkab

Khoom

Titanium welded yeeb nkab

Loj

OD: 19.05mm txog 609mm
Ntev: 1000mm-15000mm (39.4"-590.6"),
Thickness: {{{0}}.5mm-5mm (0.02"-0.028")
Los yog Customized

Khoom siv

Gr.1, Gr.2, Gr.9

Txuj

ASTM B337, ASTM SB338, ASTM B861, thiab lwm yam.

Titanium welded kav yuav siv tau nyob rau hauv lub tshav kub exchangers thiab condensers, tag nrho cov hom ntawm corrosive kua kis tau tus mob pipeline system, titanium tsheb kauj vab raj, tsheb tso pa yeeb nkab thiab offshore aquaculture, thiab lwm yam.

Peb tseem tuaj yeem muab cov titanium yeeb nkab coils rau kev siv cua sov thiab cua txias.

Qib thiab Standards

Khoom Qib

Standard specification

Kev lag luam Pure

ASTM B 348 Qib 1, 2, 3, 4
AWS A5.16 ERTi 1, 2, 3, 4
TIAB SA 4951
TIAB SA 4921
ASTM F 67 Qib 1, 2, 3, 4

Ti Alloy 6Al 4V

ASTM B 348 Qib 5
AWS A5.16 ERTi 5
TIAB SA 4954

Titanium Alloy 6Al 4V ELI

ASTM F 136
TIAB SA 4956
AWS A5.16 ERTi 5 ELI

Titanium Alloy Ti 0.2Pd

ASTM B 348 Qib 7 & 11
AWS A5.16 ERTi 7

Titanium Alloy Ti 0.3 Mo .8Ni

ASTM B 348 Qib 12
AWS A5.16 ERTi 12

Titanium alloy 5Al 2.5Sn

TIAB SA 4953
AWS A5.16 ERTi 6
ASTM B 348 Qib 6

Tom ntej: Titanium Alloy 3Al 2.5V

ASTM B 348 Qib 9
AWS A5.16 ERTi 9

Titanium Alloy Ti 6Al 7Nb

ASTM F 1295 Cov Lus Qhia Tshwj Xeeb

Titanium Pipe Applications

● Kub exchangers

● Condenser

● Corrosive fluid transmission pipeline systems

● Tsheb kauj vab

● Cov kav dej hauv tsheb

● Offshore aquaculture

Related Industries rau titanium yeeb nkab

● Machinery

● Aerospace

● Lub dav hlau

● Automotive

● Kho mob

● Lub Hwj Chim Loj

● Electronics

● Tshuaj

Titanium Physical Properties

Qib

Qhov kawg Tensile Strength Min.

Yield zog

Elongation feem pua

Txo Cheeb Tsam feem pua

Qhov xwm txheej

KSI

MPa

KSI

MPa

1

35

240

20

138

24

30

Raws li teev (zoo)

2

50

345

40

275

20

30

Raws li teev (zoo)

3

64

450

55

380

18

30

Raws li teev (zoo)

4

80

550

70

483

15

25

Raws li teev (zoo)

5

130

895

120

828

10

25

Raws li teev (zoo)

6

115

792

110

758

10

25

Forged Bars

7

50

345

40

275

20

30

Raws li teev (zoo)

9

90

620

70

483

15

25

Raws li teev (zoo)

11

35

240

20

138

24

30

Raws li teev (zoo)

12

70

483

50

345

18

25

Raws li teev (zoo)

16

50

345

40

275

20

30

Raws li teev (zoo)

17

35

240

25

170

24

30

Raws li teev (zoo)

23

120

828

110

759

10

25

Beta-Annealed

Titanium Khoom Qib

CP Titanium khoom

Qib 1

Qib 2

Qib 2H (Qib 2 nrog 58 ksi yam tsawg kawg nkaus UTS)

Qib 3

Qib 4

Titanium alloy

Qib 5 (6% Al, 4% V)

Qib 7 (0.12 txog 0.25 feem pua ​​Pd)

Qib 7H (0.12 txog 0.25 feem pua ​​Pd) (Qib 7 nrog 58 ksi yam tsawg kawg nkaus UTS)

Qib 9 (3 feem pua ​​Al, 2.5 feem pua ​​V)

Qib 11 (0.12 txog 0.25 feem pua ​​Pd)

Qib 12 (0.3 feem pua ​​Mo, 0.8 feem pua ​​Ni)

Qib 13 (0.5 feem pua ​​Ni, 0.05 feem pua ​​Ru)

Qib 14 (0.5 feem pua ​​Ni, 0.05 feem pua ​​Ru)

Qib 15 (0.5 feem pua ​​Ni, 0.05 feem pua ​​Ru)

Qib 16 (0.04 txog 0.08 feem pua ​​Pd)

Qib 16H (0.04 txog 0.08 feem pua ​​Pd) (Qib 16 nrog 58 ksi yam tsawg kawg nkaus UTS)

Qib 17 (0.04 txog 0.08 feem pua ​​Pd)

Qib 18 (3 feem pua ​​Al, 2.5 feem pua ​​V, 0.04 txog 0.08 feem pua ​​Pd)

Qib 19 (3% Al, 8% V, 6% Cr, 4% Zr, 4% Mo)

Qib 20 (3 feem pua ​​Al, 8 feem pua ​​V, 6 feem pua ​​Cr, 4 feem pua ​​Zr, 4 feem pua ​​Mo, 0.04 feem pua ​​– 0.08 feem pua ​​Pd)

Qib 21 (15 feem pua ​​Mo, 3 feem pua ​​Al, 2.7 feem pua ​​Nb, 0.25 feem pua ​​Si)

Qib 23 (6 feem pua ​​​​Al, 4 feem pua ​​V, nrog cov ntsiab lus qis qis, ELI)

Qib 24 (6 feem pua ​​Al, 4 feem pua ​​V, 0.04 feem pua ​​​​rau 0.08 feem pua ​​Pd)

Qib 25 (6 feem pua ​​Al, 4 feem pua ​​V, 0.3 feem pua ​​rau 0.8 feem pua ​​Ni thiab 0.04 feem pua ​​rau 0.08 feem pua ​​Pd)

Qib 26 (0 08 txog 0.14 feem pua ​​Pd)

Qib 26H (0.08 txog 0.14 feem pua ​​Pd) (Qib 26 nrog 58 ksi yam tsawg kawg nkaus UTS)

Qib 27 (0.08 txog 0.14 feem pua ​​Pd)

Qib 28 (3 feem pua ​​Al, 2.5 feem pua ​​V, 0.08–0.14 feem pua ​​Ru)

Qib 29 (6 feem pua ​​Al, 4 feem pua ​​V, ELI, ntxiv rau 0.08 rau 0.14 feem pua ​​Ru)

Qib 30 (0.3 feem pua ​​Co, 0.05 feem pua ​​Pd)

Qib 31 (0.3 feem pua ​​Co, 0.05 feem pua ​​Pd)

Qib 32 (5 feem pua ​​Al, 1 feem pua ​​tin, 1 feem pua ​​Zr, 1 feem pua ​​V, 0.8 feem pua ​​Mo)

Qib 33 (0.4 feem pua ​​Ni, 0.015 feem pua ​​Pd, 0.025 feem pua ​​Ru, 0.15 feem pua ​​Cr)

Qib 34 (0.4 feem pua ​​Ni, 0.015 feem pua ​​Pd, 0.025 feem pua ​​Ru, 0.15 feem pua ​​Cr)

Qib 35 (4.5 feem pua ​​Al, 2 feem pua ​​Mo, 1.6 feem pua ​​V, 0.5 feem pua ​​hlau, 0.3 feem pua ​​Si)

Qib 36 (45 feem pua ​​Nb)

Qib 37 (1.5 feem pua ​​Al)

Qib 38 (4 feem pua ​​Al, 2.5 feem pua ​​V, 1.5 feem pua ​​Fe)
