Muaj nuj nqi
CAS Nr .: | 7440-25-7 |
Qhov tsos: | Silvery-grey khoom |
Purity: | 99.9 feem pua - 99.99 feem pua |
Khoom Qib: | R05200, unalloyed tantalum, electron-beam rauv los yog nqus-arc yaj, los yog ob qho tib si R05400, unalloyed tantalum, hmoov-metallurgy consolidation. |

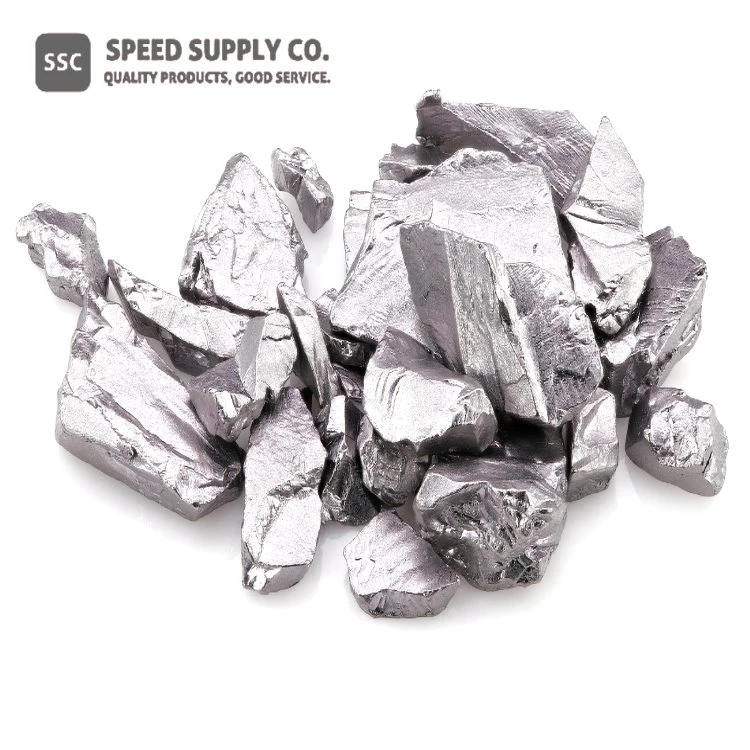

Tantalum Lump Description
Tantalum yog cov hlau refractory uas yog ductile, yooj yim fabricated thiab heev tiv taus corrosion los ntawm acids. Nws kuj yog ib tug zoo conductor ntawm tshav kub, hluav taws xob thiab muaj ib tug siab melting point. Nws yog tshwj xeeb tshaj yog tiv taus cov tshuaj ntawm qhov kub thiab txias hauv qab 150 degree / 302℉ thiab tsuas yog yaj nrog hydrofluoric acid. Nyob rau hauv ntau yam alloys, tantalum yog siv los ntxiv zog, ductility, thiab siab melting point. Txog ib nrab ntawm kev siv tantalum yog rau electrolytic capacitors thiab cov khoom ntawm lub tshuab nqus tsev vacuum.
SSC tshwj xeeb hauv kev tsim cov purity siab tantalum pob nrog qhov siab tshaj plaws thiab qhov tsawg tshaj plaws qhov nruab nrab ntawm cov qoob loo siv rau hauv Chemical Vapor Deposition (CVD) thiab Physical Vapor Deposition (PVD) cov txheej txheem suav nrog Thermal thiab Electron Beam (E-Beam) Evaporation, Kub Kub. Organic Evaporation, Atomic Layer Deposition (ALD), Metallic-Organic thiab Chemical Vapor Deposition (MOCVD). Peb cov pob khoom txheem yog amorphous cov khoom sib xws hauv qhov ntau thiab tsawg ntawm 5-15 hli. Cov khoom siv pob zeb yog tsim los siv crystallization, khoom hauv lub xeev thiab lwm yam kev ua kom huv siab ultra siab xws li sublimation.
Peb kuj tsim tantalum li qws, pellets, hmoov, pieces, disc, ingot, hlau, thiab nyob rau hauv cov ntaub ntawv compound, xws li oxide. Lwm cov duab muaj nyob ntawm kev thov.
Tshuaj muaj pes tsawg leeg
Lub ntsiab | C | O | N | H | Fe | Mo | Nb | Ni | Si | Ti | W |
R05200 (%), Max. | 0.01 | 0.015 | 0.01 | 0.0015 | 0.01 | 0.02 | 0.1 | 0.01 | 0.005 | 0.01 | 0.05 |
R05400 (%), Max. | 0.01 | 0.03 | 0.01 | 0.0015 | 0.01 | 0.02 | 0.1 | 0.01 | 0.005 | 0.01 | 0.05 |
Tantalum Lump Applications thiabRelated Industries
● Kev Tshawb Fawb & Kev Tshawb Fawb
● Hloov rau platinum
● Kev tsim cov superalloys thiab electron-beam melting
● Metallurgy
● Machinery ua
● iav
● Ceramic
● Superalloy additive nyob rau hauv nickel-raws li alloys
● Sputtering lub hom phiaj
● Material Science
Chemical Identifiers
Linear Formula | Ta |
MDL Number | TIAB SA 00011252 |
EC No. | 231-135-5 |
Beilstein/Reaxys No. | N/A |
Pubchem CID | 23956 |
SMILES | [Ta] |
InchI ID nkag mus | InChI=1S/Ta |
InchI Key | GUVRBAGPIYLISA-UHFFFAOYSA-N |
Tantalum Lump Properties (Theoretical)
Molecular Luj | 180.94 |
Qhov tshwm sim | Silvery-grey khoom |
Melting Point | 3017 degree |
Boiling Point | 5 458d |
Qhov ntom | 16.69 g / cm²3(20 degree) |
Solubility hauv H2O | N/A |
Crystal Phase / Qauv | : body-centered cubic (bcc) / : tetragonal |
Hluav taws xob Resistivity | 131 nΩ·m (20 degree) |
Electronegativity | 1.5 Paulings |
Kub ntawm Fusion | 36.57 kJ/mol |
Kub ntawm Vaporization | 753 kJ / mol |
Poisson tus ratio | 0.34 |
Tshwj xeeb kub | 140 J/kg · K |
Thermal conductivity | 57.5 W/m·K |
Thermal Expansion | 6.3 µm/m·K |
Vickers Hardness | 870-1200 MPa |
Young's Modulus | 186 GPA |
Cim npe nrov: tantalum pob, Tuam Tshoj, lwm tus neeg, yuav, muag, ua nyob rau hauv Suav teb
