Muaj nuj nqi
CAS Nr .: | 7440-25-7 |
Purity: | Ntau dua lossis sib npaug li 99.9 feem pua lossis 99.95 feem pua |
Loj: | 2. 0-12. |
Kev kam rau siab: | Dav: ntxiv /-0.02mm, Thickness: ntxiv /-0.002mm |
Khoom Qib: | R05200, unalloyed tantalum, electron-beam rauv los yog nqus-arc yaj, los yog ob qho tib si R05400, unalloyed tantalum, hmoov-metallurgy consolidation. |

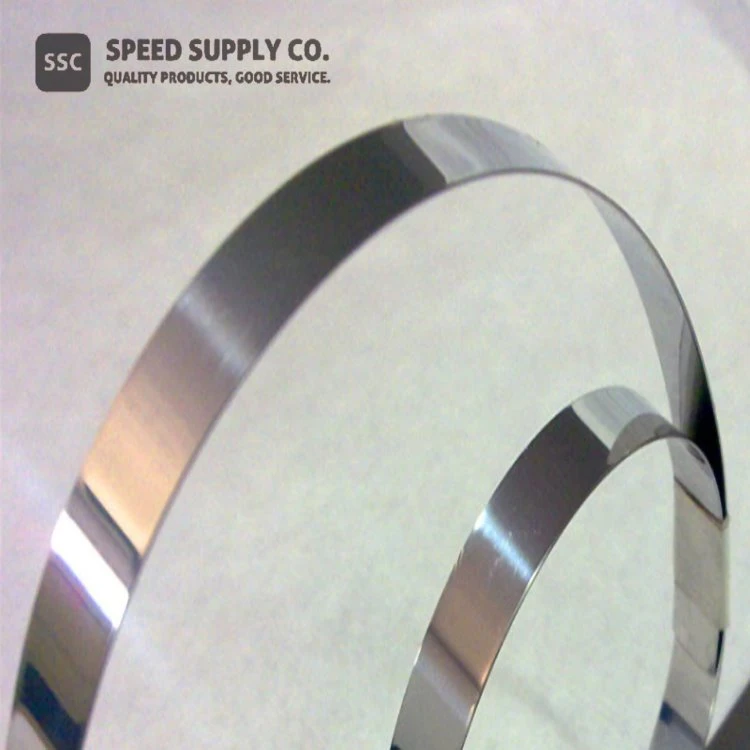

Tantalum Ribbon Description
Tantalum yog ib qho xim xiav-grey tantalum hlau uas hnyav heev, ductile, thiab tawv, thiab muaj zog corrosion kuj. SSC tshwj xeeb hauv kev tsim cov tantalum siab purity ribbon hauv ntau qhov tuab thiab ntau thiab tsawg rau kev siv ntau yam. Tantalum tshwj xeeb tshaj yog tiv taus cov tshuaj ntawm qhov kub siab tshaj 150 degree thiab tsuas yog yaj nrog hydrofluoric acid. Nws muaj qhov thib plaub-siab tshaj plaws melting point ntawm tag nrho cov hlau thiab muaj peev xwm tsim tsis tshua muaj nyias thiab tiv thaiv oxide txheej rau capacitors.
SSC tshwj xeeb hauv kev tsim cov tantalum ribbons nyob rau hauv ntau yam thicknesses thiab ntau thiab tsawg. Cov ntaub ntawv raug tsim tawm ntawm no ntawm SSC siv crystallization, lub xeev ruaj khov thiab lwm cov txheej txheem purification ultra siab xws li sublimation. Peb kuj tsim tantalum li hmoov, ingot, pieces, pellets, disc, granules thiab nyob rau hauv cov ntaub ntawv compound, xws li oxide. Lwm cov duab muaj nyob ntawm kev thov.
Tantalum Ribbon Chemical Composition
Lub ntsiab | C | O | N | H | Fe | Mo | Nb | Ni | Si | Ti | W |
R05200 (%), Max. | 0.01 | 0.015 | 0.01 | 0.0015 | 0.01 | 0.02 | 0.1 | 0.01 | 0.005 | 0.01 | 0.05 |
R05400 (%), Max. | 0.01 | 0.03 | 0.01 | 0.0015 | 0.01 | 0.02 | 0.1 | 0.01 | 0.005 | 0.01 | 0.05 |
Tantalum Ribbon Daim Ntawv Thov thiab Lwm Yam Kev Lag Luam
● Hloov rau platinum.
● Kev tsim cov superalloys thiab electron-beam melting
● Metallurgy
● Machinery ua
● iav
● Ceramic
● Superalloy additive nyob rau hauv nickel-raws li alloys
● Sputtering lub hom phiaj
● Lub teeb khoom siv rau halogen teeb, sodium teeb, nws pib teeb, quartz iav teeb, thiab lwm yam.
● Electronics
● Kev Tshawb Fawb & Kev Tshawb Fawb
● Material Science
Chemical Identifiers
Linear Formula | Ta |
MDL Number | TIAB SA 00011252 |
EC No. | 231-135-5 |
Beilstein/Reaxys No. | N/A |
Pubchem CID | 23956 |
SMILES | [Ta] |
InchI ID nkag mus | InChI=1S/Ta |
InchI Key | GUVRBAGPIYLISA-UHFFFAOYSA-N |
Tantalum Ribbon Properties (Theoretical)
Molecular Luj | 180.94 |
Qhov tshwm sim | Silvery-grey khoom |
Melting Point | 3017 degree |
Boiling Point | 5 458d |
Qhov ntom | 16.69 g / cm²3(20 degree) |
Solubility hauv H2O | N/A |
Crystal Phase / Qauv | : body-centered cubic (bcc) / : tetragonal |
Hluav taws xob Resistivity | 131 nΩ·m (20 degree) |
Electronegativity | 1.5 Pauling |
Kub ntawm Fusion | 36.57 kJ/mol |
Kub ntawm Vaporization | 753 kJ / mol |
Poisson tus ratio | 0.34 |
Tshwj xeeb kub | 140 J/kg · K |
Thermal conductivity | 57.5 W/m·K |
Thermal Expansion | 6.3 µm/m·K |
Vickers Hardness | 870-1200 MPa |
Young's Modulus | 186 GPA |
