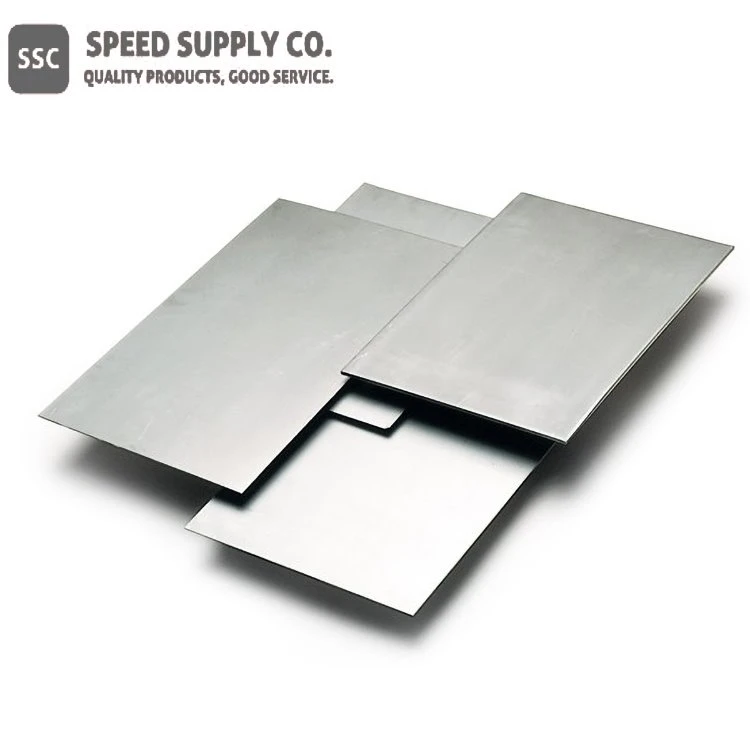

Niobium Board thiab Sheet

CAS Naj Npawb: 7440-03-1

Muaj nuj nqi

CAS Nr .:	7440-03-1
Txuj:	ASTM B 393-05
Purity:	99.9 feem pua, 99.95 feem pua, 99.99 feem pua
Nto:	Polished
Loj:	Thickness: 0 5-10mm, Dav: 50-1000mm, Ntev: 50-3000mm, Board Thickness: 0 1-0.5mm, Dav: 30-800mm, Ntev: 30-2000mm, Ntawv
Khoom Qib:	R04200-Type 1 -Reactor qib unalloyed niobium R04210-Type 2 -Cov qib lag luam tsis muaj niobium

Niobium Board thiab Daim Ntawv Qhia

Niobium (Nb) yog ib lub ci grey hlau nrog lub melting point ntawm 2468 degree, boiling point ntawm 4742 degree, thiab ib tug ceev ntawm 8.57g / cm³. High-purity niobium hlau muaj ntau dua ductility, tab sis yuav harden li impurity cov ntsiab lus nce. Niobium muaj qhov tsawg heev ntes ntu rau thermal neutrons, yog li nws muaj txiaj ntsig zoo hauv kev lag luam nuclear.

SSC muab niobium dov khoom nrog tuab 0.01mm txog 10mm, suav nrog niobium phaj (board), ntawv, ntawv ci, sawb & thiab ribbon. Peb kuj tsim niobium ua rods, hmoov thiab daim hlau. Lwm cov duab muaj nyob ntawm kev thov.

Tshuaj muaj pes tsawg leeg

Cov feem pua
Khoom siv	Cov ntsiab lus tseem ceeb	impurities (tsis ntau tshaj li ib feem pua)
Khoom siv	Nb	Fe	Si	Ni	W	Mo	Ti	Ta	O	C	H	N
R04200	Tseem tshuav	0.004	0.004	0.002	0.005	0.005	0.002	0.05	0.012	0.0035	0.0012	0.003
R04210	Tseem tshuav	0.01	0.01	0.005	0.02	0.01	0.004	0.07	0.015	0.0050	0.0015	0.005

Lub cev khoom

Qib	Tensile zog, psi (MPa), Ntau dua los yog sib npaug	Yield zog (0.2 feem pua offset), psi (MPa), Ntau dua los yog sib npaug	Elongation nyob rau hauv 1 "gage ntev, feem pua, Ntau tshaj los yog sib npaug rau
			>=0.010"	<>
R04200, R04210	18000 (125)	10500 (73)	20	15

Daim ntawv thov thiab lwm yam lag luam rau Niobium Board thiab Sheet

● Kev lag luam tshuaj

● Electroplate

● Kev kho mob

● Electronics

● Kev Tshawb Fawb & Kev Tshawb Fawb

● Nyias zaj duab xis tso tawm

● Material Science

● Aerospace & Aviation

● Nuclear Zog

Chemical Identifiers

Linear Formula	Nb
MDL Number	PAB 00011126
EC No.	231-113-5
Beilstein/Reaxys No.	N/A
Pubchem CID	23936
SMILES	[Nb]
InchI ID nkag mus	InChI=1S/Nb
InchI Key	GUCVJGMIXFAOAE-UHFFFAOYSA-N

Niobium Board thiab Sheet Properties (Theoretical)

Molecular Luj	92.9
Qhov tshwm sim	Nyiaj
Melting Point	2468 degree
Boiling Point	4 742 ygo
Qhov ntom	8.57 g / cm²³
Solubility hauv H2O	N/A
Hluav taws xob Resistivity	12.5 microhm-cm @ 0 degree
Electronegativity	1.6 Pauling
Kub ntawm Vaporization	N/A
Poisson tus ratio	0.4
Tshwj xeeb kub	0.064 Cal/g/K @ 25 degree
Tensile zog	N/A
Thermal conductivity	0.537 W/cm/K @ 298.2 K
Thermal Expansion	7.3 µm/(m·K)
Vickers Hardness	1320 MPa rau
Young's Modulus	105 GPa
