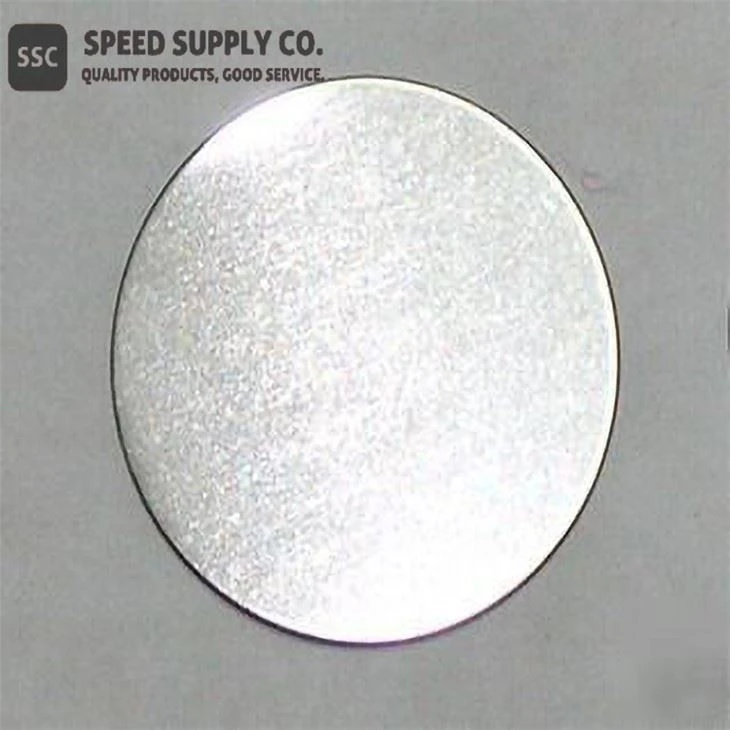

Niobium Zirconium Alloy Disc

Linear Formula: NbZr

Muaj nuj nqi

Linear Formula:	NbZr
Txuj:	ASTM B 393 Cov Lus Qhia Tshwj Xeeb
Purity:	99.9 feem pua, 99.95 feem pua, 99.99 feem pua
Nto:	Polished
Loj:	Lub hom phiaj: Txoj kab uas hla 10-400mm, Thickness 2-28mm Lub Hom Phiaj: Thickness 1-20mm, Dav<800mm, length=""><>
Khoom Qib:	R4251 (Nb-1Zr) Reactor Qib R4261 (Nb-1Zr) Kev Lag Luam Qib

Niobium Zirconium Alloy Disc Description

Peb cov zoo niobium zirconium alloy discs yog dav siv nyob rau hauv tshuaj, ships, kua siv lead ua zaub (LCD) thiab conductive txheej kev lag luam, thiab lwm yam.

Nws yog ib qho ntawm niobium alloys los tso saib "stringers" hauv cov khoom ua haujlwm hnyav. Cov stringers no tshwm sim los ntawm interstitial impurities uas tshwm sim feem ntau nyob rau hauv lub grain ciam teb thaum lub sij hawm casting. Hauv kev tsim khoom tom ntej, cov impurities no tau ncav cuag kev ua haujlwm thiab nws thiaj li tsim cov khoom sib txuas zoo heev uas tshwm sim tom qab recrystallization annealing li thaj chaw peppery.

Tshuaj muaj pes tsawg leeg ntawm Niobium Zirconium Alloy Disc

Cov ntsiab lus feem pua	R04251	R04261
Nb	98.6 - 99.2	98.1 - 99.2
Zr	0.8 - 1.2	0.8 - 1.2
Ta	0 - 0.1	0 - 0.5
W	0 - 0.030	0 - 0.050
Ti	0 - 0.020	0 - 0.050
Hf	0 - 0.020	0 - 0.025
O	0 - 0.015	0 - 0.020
C	0 - 0.010	0 - 0.020
Mo	0 - 0.010	0 - 0.010
N	0 - 0.010	0 - 0.010
Si	0 - 0.0050	0 - 0.010
Ni	0 - 0.0050	0 - 0.0050
Fe	0 - 0.0050	0 - 0.0050
H	0 - 0.0015	0 - 0.0015

Niobium Zirconium Alloy Disc Daim Ntawv Thov thiab Lwm Yam Kev Lag Luam

● Kev Tshawb Fawb & Kev Tshawb Fawb

● Siv hauv electron-beam melting.

● Siv hauv kev lag luam chemical thiab roj kev lag luam (cov khoom siv tiv thaiv corrosion)

Chemical Identifiers

Linear Formula	NbZr
MDL Number	N/A
EC No.	N/A
Pubchem CID	71355178
IUPAC npe	niobium; zirconium
SMILES	[Zr][Nb]
InchI ID nkag mus	InChI=1S/Nb.Zr
InchI Key	GFUGMBIZUXZOAF-UHFFFAOYSA-N

Niobium Zirconium Alloy Properties (Theoretical)

Compound Formula	NbZr
Qhov tshwm sim	Cov khoom siv hlau hauv ntau hom raj, ntawv / phaj, bar, ntawv ci, hlau, pas nrig, sputtering phiaj
Melting Point	2399 degree
Boiling Point	N/A
Qhov ntom	8.59 g / cm²³
Solubility hauv H2O	N/A
Tensile zog	330-620 MPa
Vickers Hardness	65-140
Monoisotopic pawg	182,811 g / mol
