Muaj nuj nqi
CAS Nr .: | 7440-03-1 |
Txuj: | ASTM B 393-05 |
Purity: | 99.9 feem pua, 99.95 feem pua, 99.99 feem pua |
Loj: | Thickness 0.03-0.09mm, Width 30-300mm, Length>50 hli |
Nto: | Polished |
Khoom Qib: | R04200-Type 1 -Reactor qib unalloyed niobium R04210-Type 2 -Cov qib lag luam tsis muaj niobium |

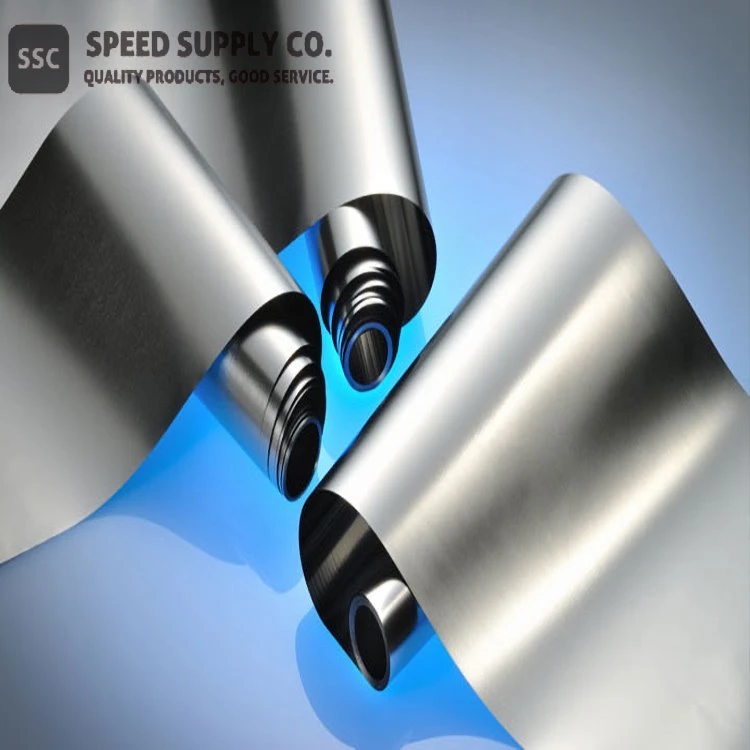

Niobium Foil thiab Sawb Description
Niobium yog ib qho ci ntsa iab hlau uas siv lub ntsej muag xiav thaum raug huab cua ntawm chav tsev kub. Kwv yees li cuaj caum feem pua ntawm Niobium yog siv nyob rau hauv kev tsim cov qib high-qib qauv steel, ib tug zoo deal nyob rau hauv daim ntawv ntawm niobium ntawv, ua raws li nws siv nyob rau hauv superalloys rau xws li cov ntaub ntawv xws li dav hlau cav Cheebtsam, roj turbines, foob pob ua ntxaij subassemblies, turbocharger systems. , thiab cov khoom siv hluav taws xob tiv thaiv tshav kub thiab combustion.
Niobium ntawv ci thiab sawb yog qhov ruaj khov heev kom nws tuaj yeem hloov cov hlau tsis huv hauv inorganic acid ntau lawm, tshuab lub neej tuaj yeem txhim kho ntau ntau zaus nrog nws. Lwm daim ntawv thov suav nrog nws siv hauv tshuaj, vuam, nuclear industries, electronics, optics, numismatics thiab hniav nyiaj hniav kub. Niobium qhov tsis muaj tshuaj lom thiab muaj peev xwm ua kom muaj xim los ntawm anodization yog qhov zoo. Peb cov ntawv zoo niobium tau dav siv los tiv thaiv corrosion, capacitors, optical target material, superconductors, kho mob, tub yees, thiab lwm yam.
SSC yog lub chaw muag khoom thoob ntiaj teb ntawm cov khoom zoo niobium thiab sawb uas muaj ntau tshaj li ob xyoo lawm ntawm kev paub hauv kev tsim thiab muag cov khoom niobium.
Peb muab niobium dov khoom nrog thickness 0.01mm mus rau 10mm, nrog rau niobium ntawv ci, sawb, ntawv, phaj, board thiab ribbon.
Tshuaj muaj pes tsawg leeg
Cov feem pua | ||||||||||||
Khoom siv | Cov ntsiab lus tseem ceeb | impurities (tsis ntau tshaj li ib feem pua) | ||||||||||
Nb | Fe | Si | Ni | W | Mo | Ti | Ta | O | C | H | N | |
R04200 | Tseem tshuav | 0.004 | 0.004 | 0.002 | 0.005 | 0.005 | 0.002 | 0.05 | 0.012 | 0.0035 | 0.0012 | 0.003 |
R04210 | Tseem tshuav | 0.01 | 0.01 | 0.005 | 0.02 | 0.01 | 0.004 | 0.07 | 0.015 | 0.0050 | 0.0015 | 0.005 |
Lub cev khoom
Qib | Tensile zog, psi (MPa), Ntau dua los yog sib npaug | Yield zog (0.2 feem pua offset), psi (MPa), Ntau dua los yog sib npaug | Elongation nyob rau hauv 1 "gage ntev, feem pua, Ntau tshaj los yog sib npaug rau | |
>=0.010" | <> | |||
R04200, R04210 | 18000 (125) | 10500 (73) | 20 | 15 |
Daim ntawv thov thiab lwm yam lag luam rau Niobium Ntawv Nyiaj thiab Sawb
● Hloov cov hlau tsis muaj hlau nyob hauv cov tshuaj inorganic acid ntau lawm
● Tshuaj
● Vuam
● Optics
● Numismatics
● Cov hniav nyiaj hniav kub
● Anti-corrosion
● Capacitor
● Optical hom khoom siv
● Superconductors
● Kev kho mob
● Lub tub yees
● Synthetic pob zeb diamond
● Kev kub siab sodium teeb
● Electronics
● Kev Tshawb Fawb & Kev Tshawb Fawb
● Nyias zaj duab xis tso tawm
● Material Science
● Aerospace
● Aviation
● Nuclear
● Zog
Chemical Identifiers
Linear Formula | Nb |
MDL Number | PAB 00011126 |
EC No. | 231-113-5 |
Beilstein/Reaxys No. | N/A |
Pubchem CID | 23936 |
SMILES | [Nb] |
InchI ID nkag mus | InChI=1S/Nb |
InchI Key | GUCVJGMIXFAOAE-UHFFFAOYSA-N |
Niobium Foil thiab Sawb Properties (Theoretical)
Molecular Luj | 92.9 |
Qhov tshwm sim | khov kho |
Melting Point | 2468 degree |
Boiling Point | 4 742 ygo |
Qhov ntom | 8.57 g / cm²3 |
Solubility hauv H2O | N/A |
Hluav taws xob Resistivity | 12.5 microhm-cm @ 0 degree |
Electronegativity | 1.6 Pauling |
Kub ntawm Vaporization | N/A |
Poisson tus ratio | 0.4 |
Tshwj xeeb kub | 0.064 Cal/g/K @ 25 degree |
Tensile zog | N/A |
Thermal conductivity | 0.537 W/cm/K @ 298.2 K |
Thermal Expansion | 7.3 µm/(m·K) |
Vickers Hardness | 1320 MPa rau |
Young's Modulus | 105 GPa |
Cim npe nrov: niobium ntawv ci thiab sawb, Tuam Tshoj, lwm tus neeg, yuav, muag, ua nyob rau hauv Suav teb
