Muaj nuj nqi
Khoom siv: | R60702, R60704, R60705 |
Purity: | 95% ~ 99.5 feem pua |
Txuj: | ASTM B523 / 523M (2) |
Qhov tsos: | Silvery Khoom |
Loj: | {{0}}mm OD x 0.9-15mm WT x L |

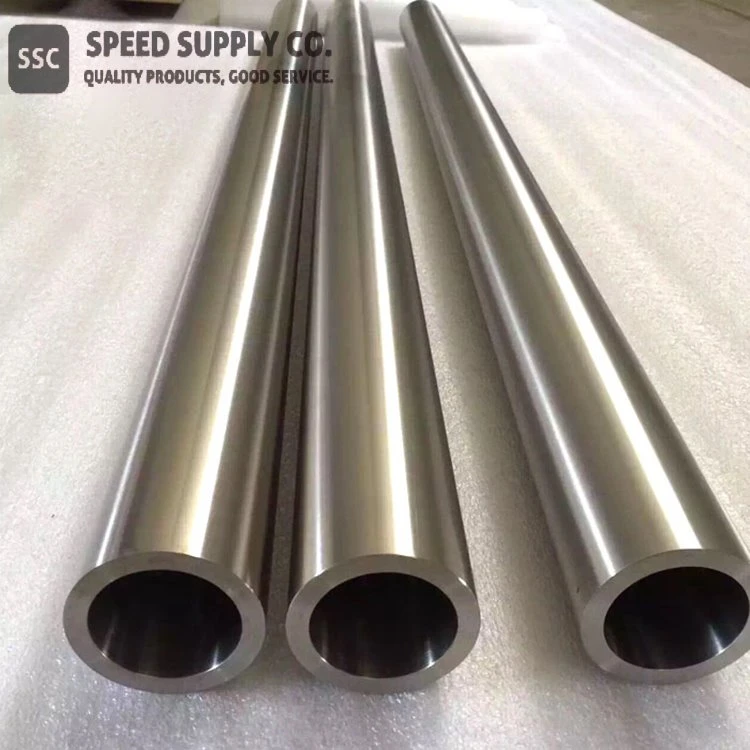

Zirconium Tube thiab Pipe Description
SSC tshwj xeeb hauv kev muab seamless zirconium raj thiab yeeb nkab nrog ntau qhov ntev ntawm OD 6 txog 135mm. Tubing tuaj yeem ua tiav ntxiv los tsim cov nplhaib, ntxhua khaub ncaws, lub tes tsho thiab sheaths. Kev cai configurations kuj muaj. Tubes tseem tuaj yeem tsim los ntawm kev cai alloys rau kev lag luam thiab kev tshawb fawb daim ntawv thov thiab rau cov cuab yeej tshiab.
Vim tias qhov kev ua tau zoo ntawm nuclear thiab corrosion tsis kam ntawm zirconium, zirconium alloy raj thiab kav dej feem ntau yog siv rau hauv cov khoom siv hluav taws xob nuclear thiab cov qauv sab hauv ntawm cov dej-txias reactors thiab yog cov khoom siv nuclear tseem ceeb. Ntshiab zirconium raj thiab kav dej yog siv los ua cov khoom siv tshuaj.
Nta ntawm Zirconium Tube thiab Yeeb Nkab
● High heat transfer efficiency
● Tsawg thermal expansion heev
● Kev ua haujlwm siab rau kev yaig hauv qab nro
● Kev ua haujlwm siab rau hauv cheeb tsam corrosion (pitting thiab crevice)
● Zoo heev kuj nyob rau hauv feem ntau cov organic acids
● Exceptional corrosion kuj nyob rau hauv mineral acids
● Zoo corrosion kuj nyob rau hauv muaj zog alkaline nruab nrab
● Tsawg thermal neutron absorption
Zirconium Tube thiab yeeb nkab Specification
NOMINAL SIZE (INCHES) | TUB NTXHAIS | LENGTHS (FEET) |
1/2" | Sch. 10, 40 ib | Customized (std 20') |
3/4" | Sch. 10, 40 ib | Customized (std 20') |
1" | Sch. 10, 40, 80 ib | Customized (std 20') |
1.5" | Sch. 10, 40, 80 ib | Customized (std 20') |
2" | Sch. 10, 40, 80 ib | Customized (std 20') |
3" | Sch. 10, 40, 80 ib | Customized (std 20') |
4" | Sch. 10, 40, 80 ib | Customized (std 20') |
6" | Sch. 10, 40, 80 ib | Customized (std 20') |
8" | Sch. 10, 40, 80 ib | Customized (std 20') |
10" | Sch. 10, 40, 80 ib | Customized (std 20') |
12" | Sch. 10, 40, 80 ib | Customized (std 20') |
14" thiab nce | Sch. 10, 40, 80 ib | Customized (std 20') |
Tshuaj muaj pes tsawg leeg
Sn | Fe | Cr | Ni | Hf | Nb | Zn plus Hf | |
wb 702 | / | <> | <> | / | 1 ~ 2.5 feem pua | / | ~ 99.5 feem pua |
wb 704 | 1 ~ 2 feem pua | {{0}}.1 ~ 0.2 feem pua | {{0}}.1 ~ 0.2 feem pua | / | <> | / | ~ 97.5 feem pua |
wb 705 | 1 ~ 2 feem pua | <> | <> | / | <> | 2 ~ 3 feem pua | ~ 95.5 feem pua |
Lub cev muaj zog
Khoom siv | Xeev | Rm( Ntau dua lossis sib npaug ) / MPa | Rp0.2(Pa | A50mm (Ntau dua lossis sib npaug) / feem pua |
Zirconium 702 (UNS R60702) | Annealed | 379 | 207 | 16 |
Zirconium 704 (UNS R60704) | Annealed | 413 | 241 | 14 |
Zirconium 705 (UNS R60705) | Annealed | 552 | 379 | 16 |
Zirconium Tube thiab Yeeb Nkab Daim Ntawv Thov thiab Lwm Yam Kev Lag Luam
● Offshore aquaculture
● Cov khoom siv hluav taws xob rau cov hluav taws xob hluav taws xob vim yog qhov tsis tshua muaj thermal neutron absorption
● Cov khoom siv hauv kev lag luam tshuaj lom neeg suav nrog kev txhim kho corrosion zoo hauv feem ntau cov organic thiab inorganic acids, tshuaj chloride thiab alkaline nruab nrab.
● Kev tsim cov tshuab rau urea, acetic acid, formic, nitric, thiab methyl methacrylate
● Kub exchangers
● Cov evaporators
● Tank
● Ntim
● Reactors
● Cov twj tso kua mis
● Valves thiab cov kav dej
● Cov cua txias
● Condenser
● Kub exchangers
Cim npe nrov: zirconium raj thiab yeeb nkab, Tuam Tshoj, lwm tus neeg, yuav, muag, ua nyob rau hauv Suav teb
