Nkoj Tungsten

CAS Nr.: 7440-33-7

Muaj nuj nqi

CAS Nr:.	7440-33-7
Linear Formula:	W
Khoom siv:	Ntshiab tungsten
Purity:	99.95 feem pua, 99.99 feem pua, 99.999 feem pua
Txheej txheem:	Extruding, Forging, Rolling, Machining thiab Sintering
Loj:	2.5mm -100mm Qhov siab 15mm -900mm Dav 15mm -900mm Ntev 0.25mm -8mm Thickness

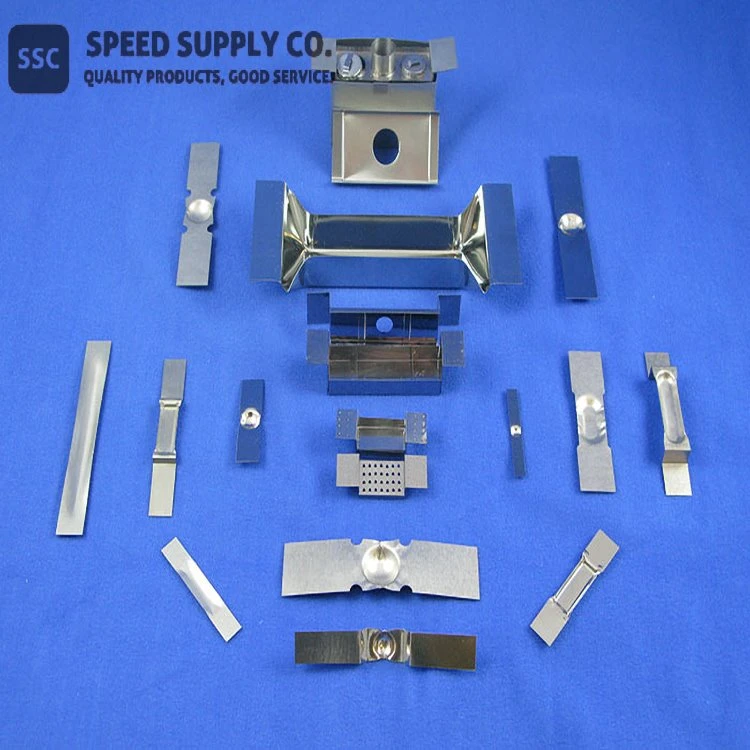

Tungsten Boat Description

Tungsten nkoj yog tsim los ntawm kev txiav, khoov, vuam, thiab riveting tungsten nplooj ntawv. Tungsten nkoj tuaj yeem siv rau hauv kev lag luam teeb, hluav taws xob thiab tub rog. Nws kuj tseem siv tau los ua lub thawv rau lub ntiaj teb tsis tshua muaj smelting.

SSC tshwj xeeb hauv kev muab cov nkoj siab purity hlau nrog ntau qhov ntev. Kev cai configurations muaj.

tungsten nkoj, pob tawb thiab filaments yog ua los ntawm qib siab tungsten. Ntawm tag nrho cov hlau nyob rau hauv daim ntawv ntshiab, tungsten muaj qhov siab tshaj plaws melting point, qhov qis tshaj vapor siab ntawm qhov kub siab tshaj 1650 degree (3000 degree F), lub zog tensile siab tshaj plaws, thiab qis tshaj coefficient ntawm thermal expansion ntawm cov hlau ntshiab. Qhov kev sib xyaw ua ke ntawm cov khoom no ua rau tungsten yog cov khoom siv zoo tshaj plaws rau evaporation qhov chaw.

Tshuaj muaj pes tsawg leeg ntawm tungsten nkoj

W (>feem pua)	Cov ntsiab lus tshuaj (<%)
99.999 PT74-TSWB1	Fe	Ca	Ua	Sn	Al	Ni	Zn	Sb	Pt	K	Ta	Na
	0.0001	0.00005	0.000005	0.000005	0.00005	0.00001	0.00005	0.00005	0.00003	0.000005	0.0001	0.00005
	Cr	Pb	Raws li	Mg	Ti	Bi	Mo	Cd	Cu	Ba	Co	Mn
	0.000005	0.00001	0.00005	0.00005	0.000005	0.00001	0.00001	0.000005	0.000007	0.00001	0.000005	0.000005
99.99 PT74-TWB 2	Fe	Ca	Ua	Sn	Al	Ni	Zn	Sb	Pt	K	O	Na
	0.0001	0.00045	0.0001	0.0001	0.0001	0.0001	0.0001	0.0001	0.0001	0.0005	0.0040	0.0009
	Cr	Pb	Raws li	Mg	Ti	Bi	Mo	Cd	Cu	Ba	Co	Mn
	0.0001	0.0001	0.0001	0.0001	0.0001	0.0001	0.0002	0.0001	0.0001	0.0001	0.0001	0.0001
99.95 PT74-TWB 3	Fe	Ca	P	Sn	Al	Ni	N	Sb	Si	O	Pb	Raws li
	0.005	0.003	0.001	0.0001	0.002	0.003	0.003	0.001	0.003	0.003	0.0001	0.002
	Mg	C	Bi	Mo
	0.002	0.005	0.0001	0.001

Tungsten Nkoj Daim Ntawv Thov thiab Lwm Yam Kev Lag Luam

● Kev Tshawb Fawb & Kev Tshawb Fawb

● Material Science

● Electronics

● Tub rog

● Teeb pom kev zoo

Chemical Identifiers

Linear Formula	W
MDL Number	TIAB SA 00011461
EC No.	231-143-9
Beilstein/Reaxys No.	N/A
Pubchem CID	23964
SMILES	[W]
InchI ID nkag mus	InChI=1S/W
InchI Key	WFKWXMTUELFFGS-UHFFFAOYSA-N

Tungsten Boats Properties (Theoretical)

Molecular Luj	183.85
Qhov tshwm sim	Nyiaj
Melting Point	3410 degree
Boiling Point	5900 degree
Qhov ntom	19.3g / cm3³
Solubility hauv H2O	N/A
Hluav taws xob Resistivity	5.65 μΩ ·m (27 degree)
Electronegativity	1.7 Pauling
Kub ntawm Fusion	35.3 kJ/mol
Kub ntawm Vaporization	806.7 kJ/mol
Poisson tus ratio	0.28
Tshwj xeeb kub	0.133 J/g mol (20 degree)
Tensile zog	750 MPa rau
Thermal conductivity	1.73 W/m K
Thermal Expansion	(25 degree) 4.5 µm·m^-1·K^-1
Vickers Hardness	3430 MPa rau
Young's Modulus	411 gps ua

Tungsten Boats Health & Safety Information

Lus Cim	Kev phom sij
Cov Lus Qhia Txog Hazard	H228-H315-H319
Hazard Codes	N/A
Cov Lus Qhia Ua Ntej	P210-P305 ntxiv rau P351 ntxiv rau P338
Flash Point	Tsis siv tau
Risk Codes	N/A
Cov lus hais txog kev nyab xeeb	N/A
RTECS Number	YOG 7175000
Cov ntaub ntawv thauj mus los	NEEJ
WGK Germany	Nwg
GHS Daim duab	GHS07 Exclamation Point GHS02 Nplaim

Cim npe nrov: tungsten nkoj, Tuam Tshoj, lwm tus neeg, yuav, muag, ua nyob rau hauv Suav teb
