Muaj nuj nqi
CAS Nr:. | 7440-33-7 |
Linear Formula: | W |
Khoom siv: | Ntshiab tungsten |
Purity: | 99.95 feem pua, 99.99 feem pua, 99.999 feem pua |
Ceev: | Sintered tungsten pas nrig: Ntau dua lossis sib npaug rau 18.3g / cc Forged tungsten pas nrig: Ntau dua lossis sib npaug li 18.5g / cc |
Txheej txheem: | Nias-sintering-forging-nto kho |
Nto: | Hlau txiav & tshuaj ntxuav Turning & grinding surface for width >1" |
Loj: | 5 mm x 10 mm x L<> 0.2"-4" x 0.4"-4" x L<> |

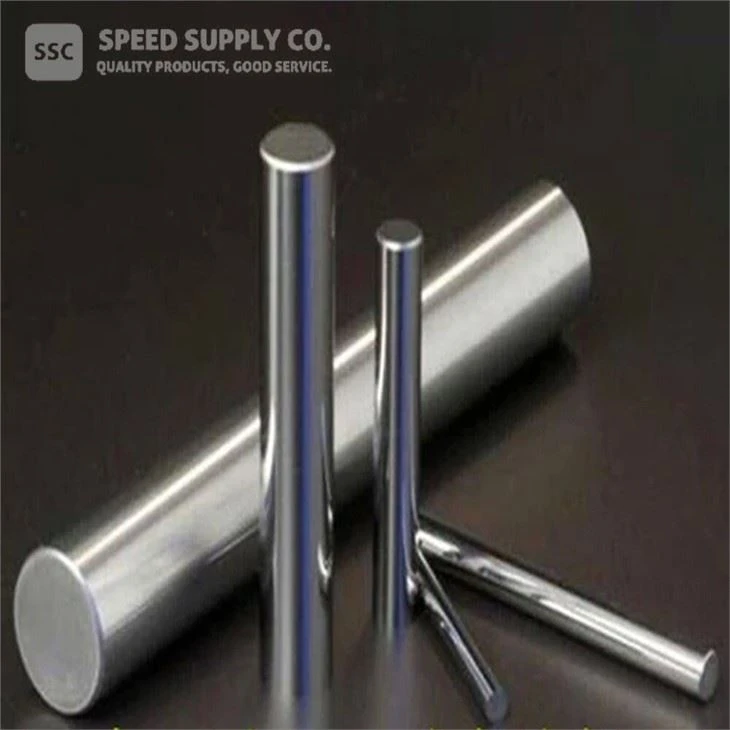

Tungsten Bar Description
Ntshiab tungsten blanks, uas yog tsim los ntawm tungsten hmoov los ntawm hmoov metallurgy, yog cov khoom nyoos los ua cov tungsten tuav. Qhov purity feem ntau yog ntau dua lossis sib npaug rau 99.95 feem pua.
Raws li qhov sib txawv ntawm cov duab sib txawv, tungsten tuav tuaj yeem muab faib ua puag ncig tungsten tuav, duab plaub tungsten tuav, square tungsten tuav, hexagonal tungsten tuav thiab lwm yam. Ntshiab tungsten tuaj yeem ua haujlwm los ntawm forging, kos duab, extruding thiab dov. Tungsten bar yog ruaj khov heev. Nws tsis hnov mob nrog huab cua, dej, HCl los yog sulfuric acid nyob rau hauv ib txwm atmospheric kub. Thaum nws yog rhuab mus rau 80 ~ 100 degree, nws yuav tsis muaj zog tiv thaiv acid. Tungsten bar yog yooj yim oxidized nyob rau hauv cov pa oxygen.
Tungsten bar tuaj yeem yuav los ntawm SSC hauv ntau lossis tsawg.
Cov tungsten tuav nrog purity ntawm 99.999 feem pua yog siv los ua cov khoom siv rau cov txheej txheem siab bearing steels, tsheb, high-speed railways, high precision khoom, thiab high-tech riam phom. Cov tungsten tuav nrog purity ntawm 99.99 feem pua yog siv los ntawm cov cuab yeej hlau hlau, cov hlau huv huv, thiab cov hlau tshwj xeeb, thiab lwm yam. Cov tungsten tuav nrog purity ntawm 99.95 feem pua yog siv los ua raw khoom rau cov hlau tshwj xeeb thiab steel hlau. Thiab nws kuj tau siv dav hauv qhov cub kub kub, lub tshuab nqus tsev vacuum, thiab sapphire siv lead ua rauv. Tungsten bar kuj tseem siv los ua phom, phom foob pob ua ntxaij, satellite dav hlau, thiab nkoj.
Tshuaj muaj pes tsawg leeg ntawm Tungsten Bar
W (>feem pua) | Cov ntsiab lus tshuaj (<%) | |||||||||||
99.999 | Fe | Ca | Ua | Sn | Al | Ni | Zn | Sb | Pt | K | Ta | Na |
0.0001 | 0.00005 | 0.000005 | 0.000005 | 0.00005 | 0.00001 | 0.00005 | 0.00005 | 0.00003 | 0.000005 | 0.0001 | 0.00005 | |
Cr | Pb | Raws li | Mg | Ti | Bi | Mo | Cd | Cu | Ba | Co | Mn | |
0.000005 | 0.00001 | 0.00005 | 0.00005 | 0.000005 | 0.00001 | 0.00001 | 0.000005 | 0.000007 | 0.00001 | 0.000005 | 0.000005 | |
99.99 | Fe | Ca | Ua | Sn | Al | Ni | Zn | Sb | Pt | K | O | Na |
0.0001 | 0.00045 | 0.0001 | 0.0001 | 0.0001 | 0.0001 | 0.0001 | 0.0001 | 0.0001 | 0.0005 | 0.0040 | 0.0009 | |
Cr | Pb | Raws li | Mg | Ti | Bi | Mo | Cd | Cu | Ba | Co | Mn | |
0.0001 | 0.0001 | 0.0001 | 0.0001 | 0.0001 | 0.0001 | 0.0002 | 0.0001 | 0.0001 | 0.0001 | 0.0001 | 0.0001 | |
99.95 | Fe | Ca | P | Sn | Al | Ni | N | Sb | Si | O | Pb | Raws li |
0.005 | 0.003 | 0.001 | 0.0001 | 0.002 | 0.003 | 0.003 | 0.001 | 0.003 | 0.003 | 0.0001 | 0.002 | |
Mg | C | Bi | Mo | |||||||||
0.002 | 0.005 | 0.0001 | 0.001 | |||||||||
Tungsten Bar Daim Ntawv Thov thiab Lwm Yam Kev Lag Luam
● Thaum tshav kub kub conductor
● Additive
● Crankshaft thiab lub tog raj kheej chim ntawm lub tsheb
● Electrode
● Cov kabmob steel
● Tsheb
● High-speed railway
● Cov khoom siv siab precision
● Cov cuab yeej siv siab heev
● Alloy cuab yeej steel
● Cov hlau zoo huv si
● Cov hlau tshwj xeeb
● Hlau hlau
● Lub qhov cub kub kub
● Lub tshuab nqus tsev vacuum
● Sapphire siv lead ua rauv
● Phom
● Artilleries
● Lub foob pob hluav taws
● Satellites
● Lub dav hlau
● Nkoj
● Kev Tshawb Fawb & Kev Tshawb Fawb
● Tub rog
● Aerospace
● Aviation
● Electronics
Chemical Identifiers
Linear Formula | W |
MDL Number | TIAB SA 00011461 |
EC No. | 231-143-9 |
Beilstein/Reaxys No. | N/A |
Pubchem CID | 23964 |
SMILES | [W] |
InchI ID nkag mus | InChI=1S/W |
InchI Key | WFKWXMTUELFFGS-UHFFFAOYSA-N |
Tungsten Bars Properties (Theoretical)
Molecular Luj | 183.85 |
Qhov tshwm sim | Nyiaj |
Melting Point | 3410 degree |
Boiling Point | 5900 degree |
Qhov ntom | 19.3 g / cm²3 |
Solubility hauv H2O | N/A |
Hluav taws xob Resistivity | 5.65 μΩ ·m (27 degree) |
Electronegativity | 1.7 Paulings |
Kub ntawm Fusion | 35.3 kJ / mol |
Kub ntawm Vaporization | 806.7 kJ/mol |
Poisson tus ratio | 0.28 |
Tshwj xeeb kub | 133 J/kg · degree |
Tensile zog | 750 MPa rau |
Thermal conductivity | 1.73 W/m ·K |
Thermal Expansion | (25 degree) 4.5 µm·m-1·K-1 |
Vickers Hardness | 3430 MPa rau |
Young's Modulus | 411 gps ua |
Tungsten Bars Health & Safety Information
Lus Cim | Kev phom sij |
Cov Lus Qhia Txog Hazard | H228-H315-H319 |
Hazard Codes | N/A |
Cov Lus Qhia Ua Ntej | P210-P305 ntxiv rau P351 ntxiv rau P338 |
Flash Point | Tsis siv tau |
Risk Codes | N/A |
Cov lus hais txog kev nyab xeeb | N/A |
RTECS Number | YOG 7175000 |
Cov ntaub ntawv thauj mus los | NEEJ |
WGK Germany | Nwg |
GHS Daim duab | GHS07 Exclamation Point
GHS02 Nplaim
|
