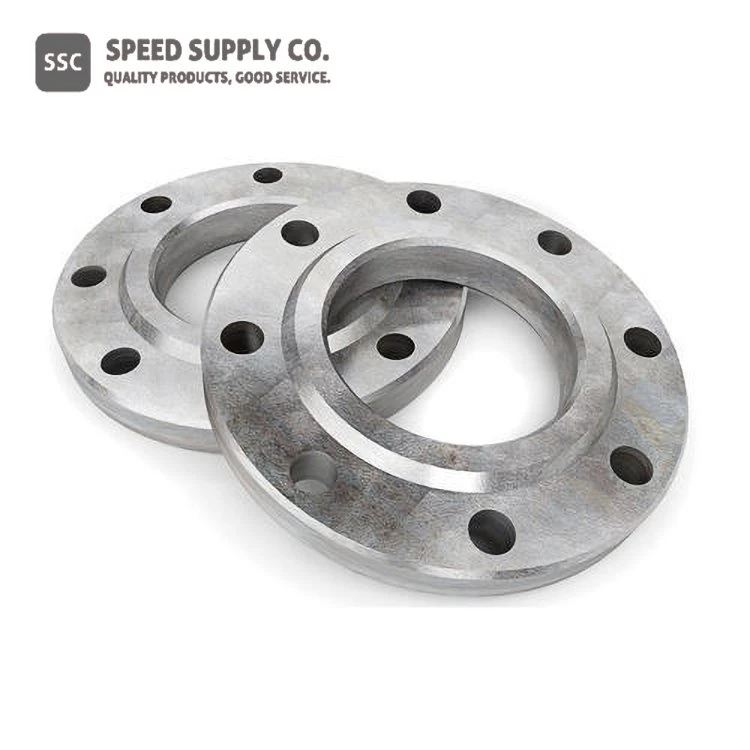

Tantalum Flange

Khoom siv: Ta-W, Ta-Nb

Muaj nuj nqi

Khoom siv:	Ta-W, Ta-Nb
Txuj:	ASTM B 521-98
Purity:	Ntau dua lossis sib npaug li 99.99 feem pua lossis 99.95 feem pua
Qhov Loj:	Customized
Khoom Qib:	R05200, unalloyed tantalum, electron-beam rauv los yog nqus-arc yaj, los yog ob qho tib si R05400, unalloyed tantalum, hmoov-metallurgy consolidation. R05255, tantalum alloy, 90% tantalum, 10% tungsten, electron-beam rauv ntawm lub tshuab nqus tsev-arc yaj, los yog ob qho tib si. R05252, tantalum alloy, 97.5% tantalum, 2.5% tungsten, electron-beam rauv los yog nqus-arc yaj, los yog ob qho tib si. R05240, tantalum alloy, 60% tantalum, 40% niobium, electron-beam rauv lossis lub tshuab nqus tsev-arc yaj.

Tantalum Flange piav qhia

Tantalum flanges yog qhov paub zoo tshaj plaws rau nws qhov tsis sib haum xeeb corrosion thiab tshuaj inertness. Tantalum flanges muaj qhov zoo sib xws corrosion tsis kam rau cov iav, tab sis tag nrho cov khoom siv hluav taws xob thiab hluav taws xob ntawm cov hlau.

Tantalum flanges kuj tseem ruaj khov ntawm qhov kub thiab txias, txij li thaum tantalum muaj qhov melting point nyob ib ncig ntawm 3000 degree. Cov ntawv thov kub siab xav tau lub tshuab nqus tsev lossis cov pa roj tsis zoo vim tias tantalum tuaj yeem embrittle thaum siv cov pa nplua nuj nyob rau saum toj 250 degree / 482℉. Tantalum flanges kuj yog ib qho ntawm cov khoom siv bio-tshaj tshaj plaws muaj thiab tseem muaj xov tooj cua-opaque vim nws qhov ntom ntom (16.69 g / cm3).

SSC tshwj xeeb hauv kev tsim cov purity siab zoo li tantalum flanges. SSC muaj kev cai flanges nrog annealed los yog tawv tempers thiab yuav ua tau raws li feem ntau ntawm Mil spec lossis ASTM tus qauv. Lwm cov qauv muaj xws li ASA/ANSI/ASME (USA), PN/DIN (European), BS10 (British/Australian), thiab JIS/KS (Japanese/Korean). Flange kub thiab siab kam rau ua yog nyob ntawm qhov ntsuas.

Flanges feem ntau yog siv los txuas cov kav dej lossis lub tog raj kheej. Lawv yog ncig nrog sab nraud ridges thiab sib txawv threaded qhov. Ntxiv nrog rau cov ntaub ntawv txheem, SSC kuj tseem tshwj xeeb hauv cov khoom siv corrosion-resistant alloys, siab kub daim ntaub ntawv, thiab kev cai cov duab thiab cov ntaub ntawv, nrog rau kev cai qhov chaw xyaum thiab threading.

SSC kuj tsim tantalum li qws, ingot, hmoov, pieces, disc, granules, hlau, thiab nyob rau hauv cov ntaub ntawv compound, xws li oxide.

Hom ntawm Tantalum Flanges

● Tantalum Vuam Neck Flanges (WNRF)

● Tantalum Spectacle Dig Muag Flanges

● Tantalum Txo Flanges

● Tantalum Dig Muag Flanges (BLRF)

● Tantalum Spades thiab Nplhaib Spacers

● Tantalum ANSI / ASME B16.5 Flanges

● Tantalum Slip On Flanges (SORF)

● Tantalum Square Flanges

● Tantalum BS 10 Flanges

● Tantalum Socket Weld Flanges (SWRF)

● Tantalum Orifice Flanges

● Tantalum DIN Flanges

● Tantalum Lap Joint Flanges

● Tantalum Ring Type Joint Flanges (RTJ)

● Tantalum EN 1092-1 Flanges

● Tantalum Screwed / Threaded Flanges

● Tantalum Phaj Flanges

● Tantalum JIS Flanges

Tshuaj muaj pes tsawg leeg

Lub ntsiab	C	O	N	H	Fe	Mo	Nb	Ni	Si	Ti	W
R05200	0.01	0.015	0.01	0.0015	0.01	0.02	0.1	0.01	0.005	0.01	0.05
R05400	0.01	0.03	0.01	0.0015	0.01	0.02	0.1	0.01	0.005	0.01	0.05
R05255	0.01	0.015	0.01	0.0015	0.01	0.02	0.1	0.01	0.005	0.01	9.0–11.0
R05252	0.01	0.015	0.01	0.0015	0.01	0.02	0.5	0.01	0.005	0.01	2.0–3.5
R05240	0.01	0.02	0.01	0.0015	0.01	0.02	35.0–42.0	0.01	0.005	0.01	0.05

Tantalum Flanges Lub Cev thiab Mechanical Properties

Qib	Tensile zog δ bpsi (MPa), Ntau dua lossis sib npaug	Yield zog δ 0.2, psi (MPa), Ntau dua lossis sib npaug	Elongation hauv 1 "/2" ntsuas qhov ntev, ％, Ntau dua lossis sib npaug
TSI 5200	30000 (207)	20000 (138)	25
TSI 5400	30000 (207)	20000 (138)	25
TIAB SA 5252	40000 (276)	28000　(193)	20
TIAB SA 5255	70000 (481)	60000 (414)	15
TIAB SA 5240	40000　(276)	28000 (193)	20
