Muaj nuj nqi
CAS Nr .: | 7440-03-1 |
Txuj: | ASTM B{0}}, ASTM B708 |
Purity: | 99.5 feem pua, 99.9 feem pua, 99.95 feem pua, 99.99 feem pua |
Nto: | Polished |
Loj: | 5mm -600mm txoj kab uas hla x 0.5mm-30mm tuab, Hloov Thickness: 1mm - 20mm, Dav: mus txog 800mm, Ntev: mus txog 3000mm, Rectangular |
Khoom Qib: | R04200-Type 1 -Reactor qib unalloyed niobium R04210-Type 2 -Cov qib lag luam tsis muaj niobium |

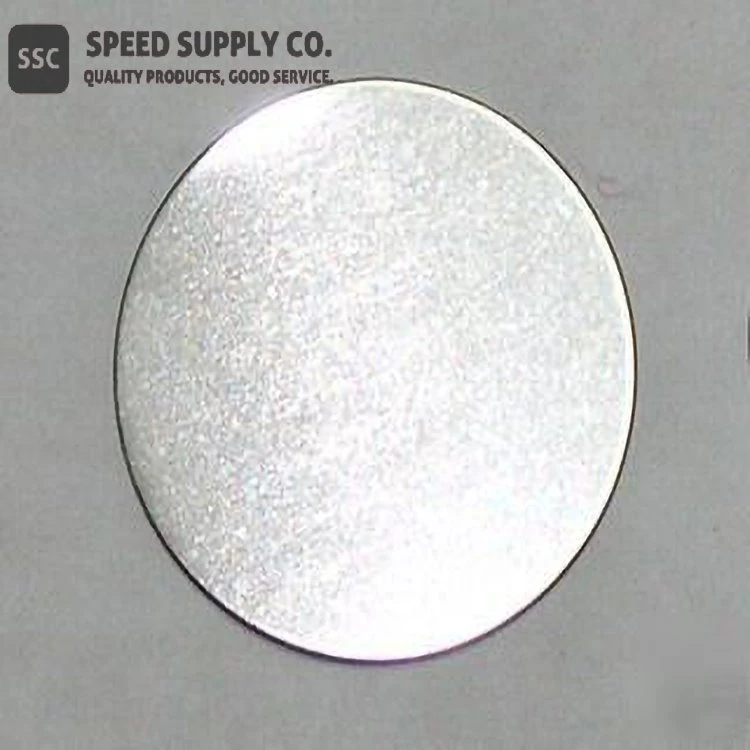

Niobium Disc Description
Niobium discs thiab niobium lub hom phiaj yog dav siv nyob rau hauv cov tshuaj, ships, kua siv lead ua zaub (LCD) thiab conductive txheej kev lag luam, thiab lwm yam. Peb muab niobium disc & lub hom phiaj ib qhov kev thov, machining txheej txheem kuj yuav nqa tawm ib tug kos duab. Niobium hlau disc yog txiav los ntawm daim ntawv lossis phaj, nws tuaj yeem ua los ntawm niobium thaiv lossis ingot yog tias cov tuab loj. Thicker disc yuav raug hu ua lub tog raj kheej, thaiv, thiab lwm yam.
Tshuaj muaj pes tsawg leeg
Cov feem pua | ||||||||||||
Khoom siv | Cov ntsiab lus tseem ceeb | impurities (tsis ntau tshaj li ib feem pua) | ||||||||||
Nb | Fe | Si | Ni | W | Mo | Ti | Ta | O | C | H | N | |
R04200 | Tseem tshuav | 0.004 | 0.004 | 0.002 | 0.005 | 0.005 | 0.002 | 0.05 | 0.012 | 0.0035 | 0.0012 | 0.003 |
R04210 | Tseem tshuav | 0.01 | 0.01 | 0.005 | 0.02 | 0.01 | 0.004 | 0.07 | 0.015 | 0.0050 | 0.0015 | 0.005 |
Technical Specifications:
Recrystalization | 95% min |
Cov qoob loo loj | ASTM 4 los yog zoo dua |
Nto tiav | 16 Rms max. los yog Ra 0.4 (RMS64 lossis zoo dua) |
Flatness | {{0}}.1mm lossis 0.15 feem pua max |
Ua siab ntev | ntxiv /-0.010" ntawm txhua qhov loj me |
Niobium Disc Applications Related Industries
● Kev lag luam tshuaj
● Hlau
● Ceramics
● Nuclear zog
● Superconductor technology
● Melted cam khwb cia ingots thiab alloying agents
● Electronics
● Kev Tshawb Fawb & Kev Tshawb Fawb
● Material Science
● Tub rog
● Aerospace
● Aviation
Chemical Identifiers
Linear Formula | Nb |
MDL Number | PAB 00011126 |
EC No. | 231-113-5 |
Beilstein/Reaxys No. | N/A |
Pubchem CID | 23936 |
SMILES | [Nb] |
InchI ID nkag mus | InChI=1S/Nb |
InchI Key | GUCVJGMIXFAOAE-UHFFFAOYSA-N |
Niobium Disc Properties (Theoretical)
Molecular Luj | 92.9 |
Qhov tshwm sim | Nyiaj |
Melting Point | 2477 degree |
Boiling Point | 4 744de |
Qhov ntom | 8.57 g / cm33 |
Solubility hauv H2O | N/A |
Hluav taws xob Resistivity | 152 Ω ·m ({1}} degree) |
Electronegativity | 1.6 Paulings |
Kub ntawm Vaporization | 689.9 kJ/mol |
Poisson tus ratio | 0.4 |
Tshwj xeeb kub | 0.27 kJ/kg·K |
Tensile zog | N/A |
Thermal conductivity | 5.37 W/m ·K |
Thermal Expansion | 7.3 µm/(m·K) |
Vickers Hardness | 1320 MPa rau |
Young's Modulus | 105 GPa |
