CAS Nr.: | 1304-56-9 |
Linear Formula: | BeO |
Khoom siv: | Beryllium Oxide |
Purity: | 97% , 99%. |
Qhov tsos: | Dawb Khoom |
Loj: | Customized |

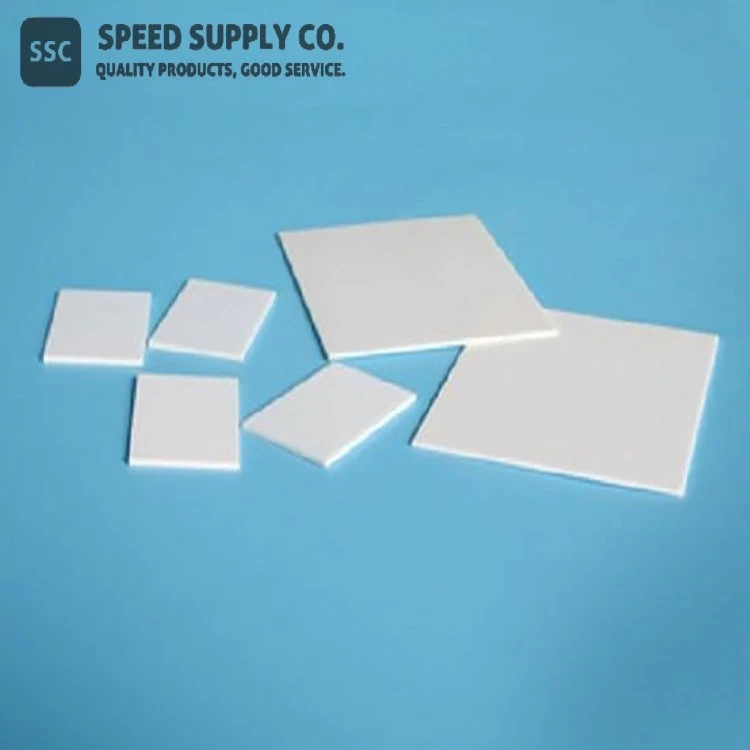

Beryllia Ceramic SubstrateKev piav qhia
Beryllium oxide (BeO), feem ntau hu ua beryllia, muaj kev sib xyaw ua ke ntawm thermal, dielectric, thiab cov khoom siv tshuab uas xav tau hauv kev siv hluav taws xob. Tsis muaj lwm yam khoom uas qhia txog cov yam ntxwv no. BeO ceramic ua cua sov zoo dua li cov hlau feem ntau, nthuav tawm cov yam ntxwv tsis tshua muaj hluav taws xob tsis zoo, muaj hluav taws xob tiv taus siab, thiab muaj zog zoo heev. Nws muab tag nrho cov txiaj ntsig ntawm lub cev thiab dielectric yam ntxwv uas pom los ntawm txhuas oxide thiab, ntxiv rau, muaj cov thermal conductivity ntau dua thiab qis dua dielectric tas li.
Beryllium oxide ceramic substrates muaj cov yam ntxwv ntawm cov thermal conductivity, siab melting, lub zog, siab rwb thaiv tsev, tsis tshua muaj dielectric tsis tu ncua, tsis tshua muaj dielectric poob thiab zoo ntim txheej txheem adaptability. Lawv tau siv dav hauv kev lag luam microwave, hluav taws xob nqus tsev, nuclear, micro electronics thiab optoelectronics.
Beryllia Ceramic Substrate Physical Properties
Khoom | Qhov xwm txheej | Chav tsev | Tus nqi |
Qhov ntom | g/cm 3 | Ntau dua lossis sib npaug rau 2.85 | |
BeO purity | feem pua | Ntau dua lossis sib npaug li 99 | |
Tensile zog | MPa | Ntau dua lossis sib npaug li 140 | |
linear expansion coeff. | 20 degree -500 degree | × 10 -4 / degree | 7-8.5 |
Thermal conductivity | 40 degree | W/m·k | Ntau dua lossis sib npaug li 250 |
Tshwj xeeb kub | 25 degree | cal / degree gm | 0.25 |
Hardness | 60 | Rockwell | |
Dialectic Constant | 1 MHz 20 degree | 6.5-7.5 | |
10GHz 20 degree | 6.5-7.5 | ||
1 MHz 20 degree | ×10 -4 | Tsawg dua los yog sib npaug li 4 | |
10GHz 20 degree | ×10 -4 | Tsawg dua los yog sib npaug li 8 | |
Kev tiv thaiv | 100 degree | Ω cm | Ntau dua lossis sib npaug rau 1013 |
300 degree | Ω cm | Ntau dua lossis sib npaug rau 1010 | |
Dialectic Strength | DC | KV/mm | Ntau dua lossis sib npaug li 15 |
Tshuaj stability | 1: 9 hlb | ug/cm 2 | Tsawg dua lossis sib npaug rau 0.3 |
10% NaOH | ug/cm 2 | Tsawg dua lossis sib npaug rau 0.2 | |
Max. Ua haujlwm kub | degree | 1800 |
Beryllia Ceramic Substrate Thermal Properties
Beryllia Ceramic Substrate Daim Ntawv Thov thiab Lwm Cov Kev Lag Luam
● Semiconductors
● Nuclear reactors
● Cov khoom siv hluav taws xob muaj zog
● Avionics conversion circuits
● Microwave kev sib txuas lus
● Xov tooj cua zaus transmitter
● Cov cuab yeej tshawb nrhiav roj thiab roj
● Ntev-ntau fiber ntau kis tau tus mob
● Cov ntawv thov kho mob
● Cov khoom siv magnetic resonance imaging
● Missile kev taw qhia hauv kev lag luam tub rog
● Kev lag luam laser txiav thiab kos cov cuab yeej
● Aerospace kev sib txuas lus system
