Muaj nuj nqi
CAS Nr:. | 12774-15-1 |
Linear Formula: | WCCo |
Khoom siv: | Tungsten Carbide / Cobalt Alloy (WC 92 feem pua, Cobalt 8 feem pua) |
Qhov tsos: | Greyish metallic lub tog raj kheej thiab cov khoom |
Cov duab: | Ib daim duab |
Loj: | Customize |

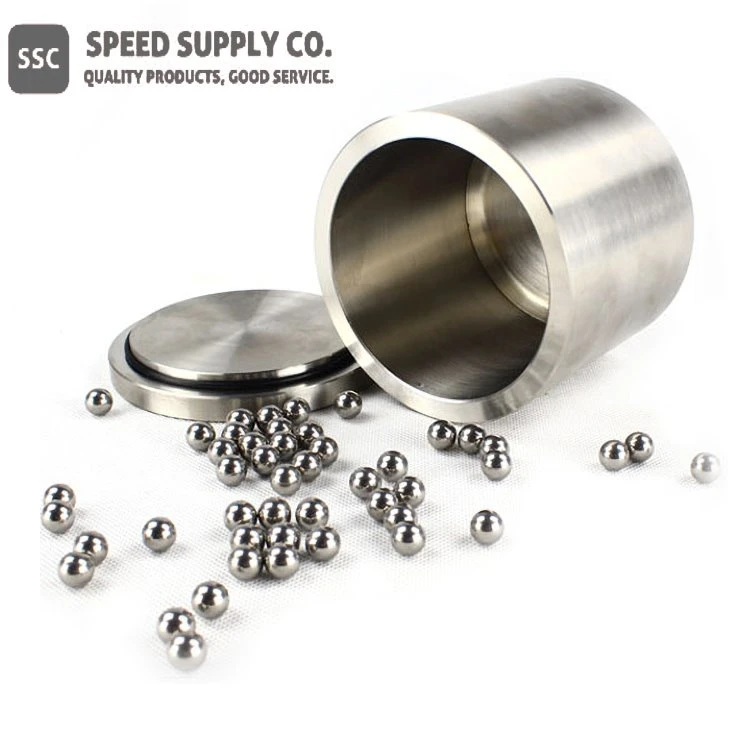

Tungsten Carbide Sib Tsoo Rag thiab Pob Cov lus piav qhia
Tungsten carbide sib tsoo hub, tseem hu ua cemented carbide sib tsoo hub, muaj tungsten carbide thiab cobalt, uas yog nto moo rau nws super hardness. Nrog zoo abrasion tsis kam, tungsten carbide sib tsoo hub thiab pob combo yog zoo tsim rau kev sib tsoo nyob rau hauv lub chaw soj nstuam ib puag ncig yam tsis muaj paug cov qauv.
Tungsten carbide yog cov khoom siv hlau ua los ntawm cov khoom siv tawv tawv ntawm cov hlau refractory thiab cov hlau sib txuas los ntawm cov hmoov metallurgy.
Tungsten carbide muaj cov khoom zoo heev xws li siab hardness, hnav tsis kam, zoo zog thiab toughness, tshav kub tsis kam, thiab corrosion kuj, tshwj xeeb tshaj yog nws siab hardness thiab hnav tsis kam, uas tseem nyob twj ywm tsis hloov txawm nyob rau hauv kub ntawm 500 degree. Nws tseem muaj siab hardness ntawm 1000 degree.
Txhua lub thawv sib tsoo thiab cov khoom sib xyaw muaj xws li 4 lub thawv sib tsoo nrog lub hau, roj hmab sealing gaskets, thiab cov khoom sib tsoo. Planetary pob zeb kuj muaj nyob rau ntawm SSC. Rau kev sib tsoo nyob rau hauv lub tshuab nqus tsev los yog inert gas ib puag ncig, stainless hlau lub tshuab nqus tsev lub tsho yuav tsum tau rau txhua yam kev sib tsoo hub tshwj tsis yog rau lub tshuab nqus tsev hub ua los ntawm stainless hlau.
Highly polished tungsten carbide hub thiab cov khoom yog hnav-resistant thiab resistant rau acid thiab alkali. Lawv muaj siab hardness thiaj li ua tau raws li feem ntau ntawm cov hlau hmoov crushing thiab refining. Lawv feem ntau siv rau hauv kev lag luam metallurgy, ceramics, electronics, lub teeb kev lag luam, xim, tshuaj, geology, chemical engineering thiab lwm yam.
Peb kuj muab WC-TiC-Co nrog cov ISO qib P10, P20, P30; thiab WC-TiC-TaC-Co carbide nrog cov ISO qib P25, P40, M10, M20, M30.
Qib ntawm WC-Co Cemented Tunsten Carbide Alloys
Qib ISO | WC | Cov feem pua | Hardness Ra | Daim ntawv thov |
K01 | Tshuav | 3 | 92 | Precision tho txawv, thiab lwm yam. |
K05/K10/20 | Tshuav | 6 | 89.5-91.5 | General Machining, thiab lwm yam. |
K30 | Tshuav | 8 | 88-89.5 | Cam khwb cia hlau, Machining, thiab lwm yam. |
K35 | Tshuav | 10 | 87-89 | Drilling, Machining, thiab lwm yam. |
-- | Tshuav | 15 | 87 | Hnav daim ntawv thov, thiab lwm yam. |
-- | Tshuav | 20 | 85.5 | Stamping me me qhov chaw, thiab lwm yam. |
Tungsten Carbide Sib Tsoo Rag thiab Pob Specification
Khoom npe | Tungsten Carbide Sib Tsoo Rag thiab Pob combo |
Loj Loj | 1.4-2.0 |
Kev thov kub | -100-1000 |
Qhov ntom | 14.6g/ |
Hardness | Ntau dua lossis sib npaug rau 89.0HRA |
Compression modulus | 56MPa ua |
Khoov zog | Ntau tshaj lossis sib npaug rau 2320MPa |
Elasticity modulus | 510 00GPa |
Micro-hardness | 17800 MPa |
Ntim | 50ml, 100ml, 250ml, 500ml, 1000ml |
Hom qauv | Vertical, nrog lossis tsis muaj Nylon / Hlau rooj plaub |
Acid thiab alkali resistant | Yog lawm |
Tsawg kub tsis kam | Yog lawm |
Sealing khoom | IP 60 |
Daim ntawv thov thiab lwm yam lag luam rau tungsten carbide sib tsoo lub thawv thiab pob
● Sib tsoo ntawm hlau, txhuas, cobalt, chromium, plumbum, tungsten, molybdenum, magnesium, tooj liab, tin, alumina, zirconia, silicon, carbon, thiab lwm yam.
● Cov teb ntawm metallurgy, ceramics, electronics, lub teeb kev lag luam, xim, tshuaj, geology, chemical engineering, thiab lwm yam.
● Kev kho mob
● Kev lag luam zaub mov
● Hluav taws xob
● Khoom siv
● Machinery
● Kev lag luam tshuaj
● Kev Tshawb Fawb & Kev Tshawb Fawb
Chemical Identifiers
Linear Formula | WCCo |
MDL Number | TIAB SA 00064847 |
EC No. | N/A |
Beilstein/Reaxys No. | N/A |
Pubchem CID | N/A |
IUPAC npe | N/A |
SMILES | [W plus 4][C-4].[Co] |
InchI ID nkag mus | InChI=1S/C.Co.W/q-4;; ua plus4 |
InchI Key | UONOETXJSWQNOL-UHFFFAOYSA-N |
Tungsten Carbide / Cobalt Khoom (Theoretical)
Compound Formula | CCOW |
Molecular Luj | 254.78 |
Qhov tshwm sim | Grey Rod |
Melting Point | N/A |
Boiling Point | N/A |
Qhov ntom | N/A |
Solubility hauv H2O | N/A |
Exact Mass | 254.783997 Ib |
Monoisotopic pawg | 254.884003 Nws |
Them nqi | N/A |
Tungsten Carbide / Cobalt Qws Health & Safety Information
Lus Cim | Ceeb toom |
Cov Lus Qhia Txog Hazard | H334-H317-H228 |
Hazard Codes | F, Xn |
Risk Codes | 11-42/43 |
Cov lus hais txog kev nyab xeeb | 22-23-24-37-45-60 |
RTECS Number | N/A |
Cov ntaub ntawv thauj mus los | UN3178 4.1/PG III |
WGK Germany | 3 |
GHS Daim duab | GHS02 Nplaim
GHS08 Health Hazard
GHS07 Exclamation Point
|
Cim npe nrov: tungsten carbide sib tsoo lub thawv thiab cov khoom, Tuam Tshoj, lwm tus neeg, yuav, muag, ua nyob rau hauv Suav teb
