PRODUCTS
Muaj nuj nqi
Linear Formula: | Y2O3 • ZrO2 |
Khoom siv: | Yttria Stabilized Zirconia (YSZ) |
Muaj pes tsawg leeg: | 3mol feem pua, 5mol feem pua lossis 8mol feem pua Yttria |
Qhov tsos: | Jar nrog Lid |
Loj: | 50ml, 100ml, 250ml, 500ml, 1000ml los yog Customized |

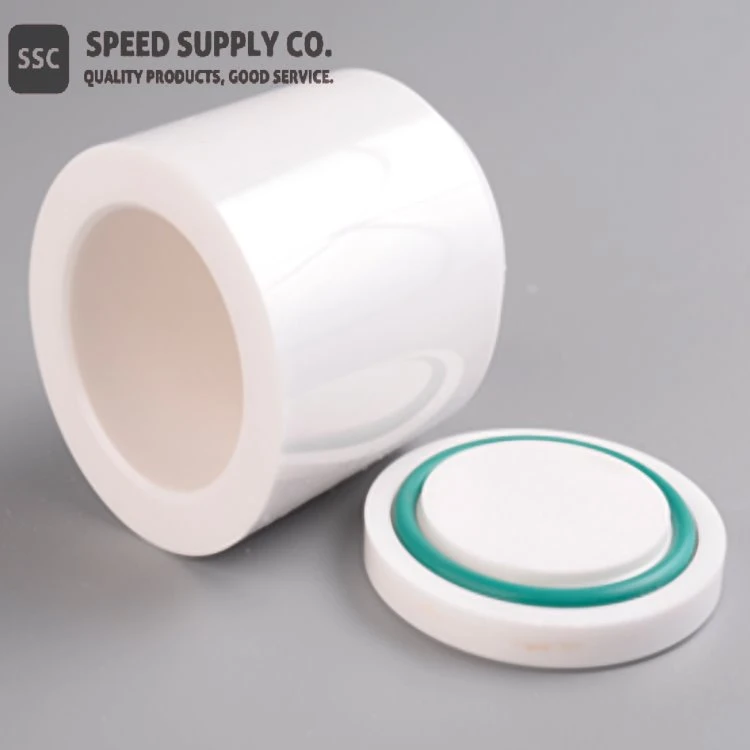

Yttria Stabilized Zirconia Sib Tsoo Jar Description
Planetary mills yog qhov zoo tshaj plaws rau kev sib tsoo mos, nruab nrab-nyuaj, tawv, ntub dej, thiab cov ntaub ntawv tawv. Qhov no yog ua tau los ntawm kev cuam tshuam lub zog siab ntawm cov khoom sib tsoo khaws cia hauv kev sib tsoo cov tais. Kev siv cov zirconia rau cov hub no yog qiv cov khoom xws li siab tawv, lub zog, hnav tsis kam, thiab tshuaj tsis haum. Lawv tiv taus txhua yam kuab tshuaj thiab cov kua qaub, tso cai rau cov neeg siv khaws cov kua sib txawv ntawm no. Txhua lub thawv ntim yog muaj nrog lub hau hau, roj hmab sealing gasket, thiab lub thawv sib tsoo.
Yttria stabilized zirconia (YSZ) yog feem ntau daim ntawv ntawm stabilized zirconia ceramic. Cov muaj pes tsawg leeg ntawm yttria stabilized zirconia yog 94.7 feem pua ZrO2 ntxiv rau 5.2 feem pua Y2O3 (qhov hnyav feem pua) lossis 97 feem pua ZrO2 ntxiv rau 3 feem pua Y2O3 (mol feem pua). Nws kuj tseem hu ua ib feem stabilized zirconia (PSZ). PSZ yog ib qho sib xyaw ntawm zirconia polymorphs, vim tias tsis txaus cubic theem-forming oxide (stabilizer) tau ntxiv thiab tau txais ib lub cubic plus metastable tetragonal ZrO2 sib tov.
Piv nrog alumina, zirconia muaj ntau qhov ntom ntom thiab zoo dua hnav thiab corrosion kuj. Yttria stabilized zirconia yog cov khoom siv zoo dua rau cov khoom siv kho tshuab. Nws yog cov khoom siv ruaj khov tshaj plaws rau ceramic sib tsoo media thiab sib tsoo hub. Vim lub siab ceev ntawm YSZ, kev sib tsoo efficiency kuj yog siab heev. Nws kuj muab cov kab mob tsawg vim qhov hnav tsis kam thiab corrosion kuj.
Peb muaj pes tsawg leeg rau YSZ suav nrog 3mol feem pua, 5mol feem pua thiab 8mol feem pua yttria. Qhov siab tshaj plaws oxygen ion conductivity tshwm sim nrog kwv yees li 10 mol feem pua Y2O3 ntxiv.
Cov khoom ntawm Yttria (3mol feem pua) Stabilized Zirconia (YSZ)
Kev sib xyaw | wt feem | 94.5% ZrO2, 5.2 ± 0.2% Y2O3 |
Tshwj xeeb ceev | g/cm3 | Ntau dua lossis sib npaug rau 5.95 |
Hardness (HV) | GPa | >12 |
Thermal expansion coefficient (20-400 degree) | X10-6/k | 11 |
Elastic modulus | GPa | 205 |
Fracture toughness | MPa·m 1/2 | >9 |
Khoov zog | MPa | >1150 |
Cov qoob loo loj | μm | <> |
Thermal conductivity | w/(m·k) | 3 |
Kev nqus dej: | feem pua | <> |
Hluav taws kub kub: | degree | 1550 |
Compression zog: | MPa | 25000 |
Breaking tenacity: | Mpa•m1/2 | 6-8 |
Kub expansion coefficient: | 9.5x{2}} / degree |
Dimensions ntawm Yttria Stabilized Zirconia Sib Tsoo Rag
Muaj peev xwm | 50 ml | 100 ml | 250 ml | 500 ml | 1000ml | |||||
Hom | MQ | GT | MQ | GT | MQ | GT | MQ | GT | MQ | GT |
Sab nraud | 55mm ua | 65mm ib | 63mm ib | 68mm ib | 94mm ib | 91mm ua | 106 hli | 106 hli | 123mm ib | 120 hli |
Qhov siab | 60 hli | 40 mm | 63mm ib | 60 hli | 82mm ua | 78mm ib | 106 hli | 96mm ua | 123mm ib | 132mm ib |
Phab ntsa Thickness | 6mm ib | 6mm ib | 7mm ib | 7mm ib | 8mm ib | 8mm ib | 8mm ib | 8mm ib | 8mm ib | 8mm ib |
Lub hau Thickness | 6mm ib | 6mm ib | 7mm ib | 7mm ib | 7mm ib | 7mm ib | 7mm ib | 7mm ib | 8mm ib | 8m |
Nta ntawm Yttria Stabilized Zirconia Sib Tsoo Jar
● Super hardness
● High ceev
● Siab khoov lub zog thiab tawg tenacity
● Tsawg thermal conductivity (20 feem pua ntawm alumina)
● Zoo tshuaj ruaj khov
● Resistance rau molten hlau
● Siab hnav-tiv taus
● High puas toughness
● Zoo corrosion kuj
● Kub siab kam rau ua
● Cov rwb thaiv tsev zoo
● Muaj zog txhua yam
● Zoo polishing nto
● Precision kam rau ua
Yttria Stabilized Zirconia Sib Tsoo Rag Daim Ntawv Thov thiab Lwm Cov Kev Lag Luam
● Metallurgy
● Geology
● Txheej
● Ceramics
● Chemical engineering
● Kev tiv thaiv ib puag ncig
● Aeronautics
● Tshuaj
● Xim
● Muaj
● Kev Tshawb Fawb & Kev Tshawb Fawb
