Muaj nuj nqi
Khoom siv: | Magnesia Ib Nrab Stabilized Zirconia |
Qhov tsos: | Ivory los yog daj-txiv kab ntxwv |
Cov duab: | Cylindrical, conical los yog Customized |
Ua haujlwm kub: | mus txog 1900 degree |
Corrosion Resistant: | Acids, Alkalis |
Ceev: | 4.5g / cc |
Porosity: | 18 feem pua |
MOR @RT: | 3500psi ua |
Loj: | Kwv yees li. Peev xwm: 2-300 ml |

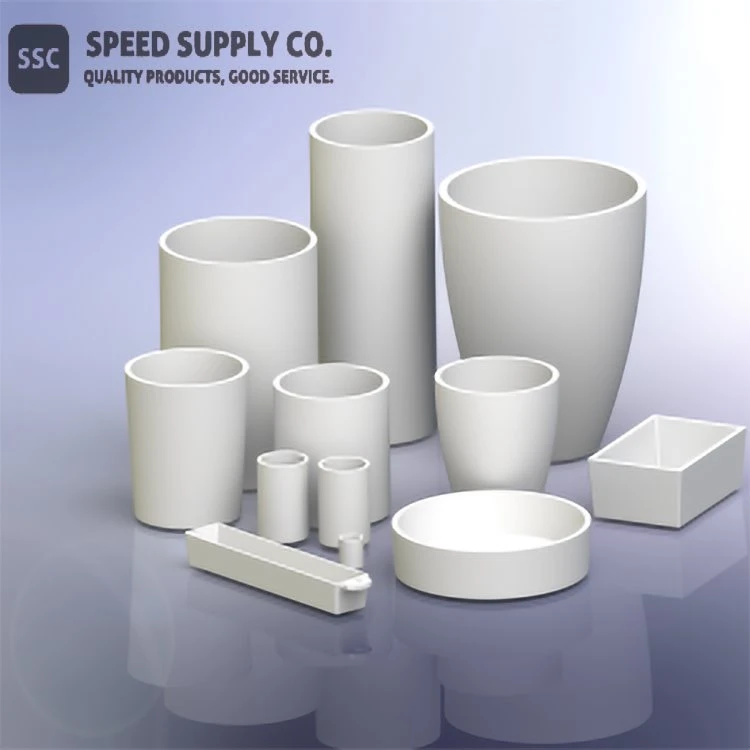

Magnesia Stabilized Zirconia Crucible Description
Transformation toughened zirconias xws li ib tug magnesia stabilized zirconia muaj me me precipitates ntawm tetragonal theem uas yog tsim nyob rau hauv lub cubic theem nplej. Cov precipitates no hloov los ntawm meta-ruaj khov tetragonal theem mus rau theem ruaj khov monoclinic thaum tawg sim ua kom nthuav tawm los ntawm cov khoom siv. Qhov no ua rau precipitate nthuav thiab blunt lub crack tip txhawb toughness.
MSZ tuaj yeem yog cov kaus ntxhw lossis daj-txiv kab ntxwv xim vim qhov sib txawv ntawm kev npaj cov khoom siv raw. Ivory xim MSZ muaj ntau dua purity thiab muaj me ntsis zoo dua txhua yam khoom.
MSZ yog qhov ruaj khov nyob rau hauv qhov kub thiab txias (220 degree thiab siab dua), qhov chaw noo noo ntau dua li YTZP - qhov twg YTZP feem ntau degrades. MSZ muaj cov thermal conductivity tsawg thiab CTE zoo ib yam li cam khwb cia hlau los tiv thaiv thermal mismatch hauv ceramic rau hlau sib dhos.
Vim qhov kev hloov pauv hloov pauv, peb cov MSZ ib feem ruaj khov crucibles muab lub zog zoo, toughness, hnav, abrasion, thiab corrosion resistant kom tau raws li qhov kev xav tau ntawm ntau qhov kev lag luam.
Magnesia Stabilized Zirconia Crucible Composition
Kev sib xyaw | ZrO2 | MgO | CaO | Al2O3 | TiO 2 | Fe2O 3 | SiO 2 |
Cov ntsiab lus feem pua | 95.3 | 2.2 | 0.2 | 0.7 | 0.2 | 0.2 | 1.2 |
Lub cev Proprieties ntawm Magnesia Stabilized Zirconia Crucible
Qhov ntom | g/cm3 | 4,6 |
Qhib porosity | feem pua | 18 |
Kev tawg module | MPa | 24.1 |
Max. kub | degree | 1800 |
Thermal conductivity | W/mK | 1.4 (rau 800 degree) |
Thermal dilatation | 10-6/K | 6.6 @ 600 degree |
6.2 @ 1000 degree | ||
2.3 @ 1300 degree |
Magnesia Stabilized Zirconia Crucible Nta
● Siv kub txog li 1800 degree
● High ceev
● Siab hardness
● Tsawg thermal conductivity
● Tshuaj inertness
● Resistance rau molten hlau
● Zoo hnav tsis kam
● High puas toughness
Zirconia Crucible Applications thiab Lwm yam lag luam
● Tshuaj calcining
● Hlau casting
● Hlau melting, tshwj xeeb tshaj yog nyob rau hauv superalloy thiab precious hlau industries
● Kev ntsuas cua sov
● Induction melting
● Oxidising los yog lub tshuab nqus tsev cua
● Kev Tshawb Fawb & Kev Tshawb Fawb
