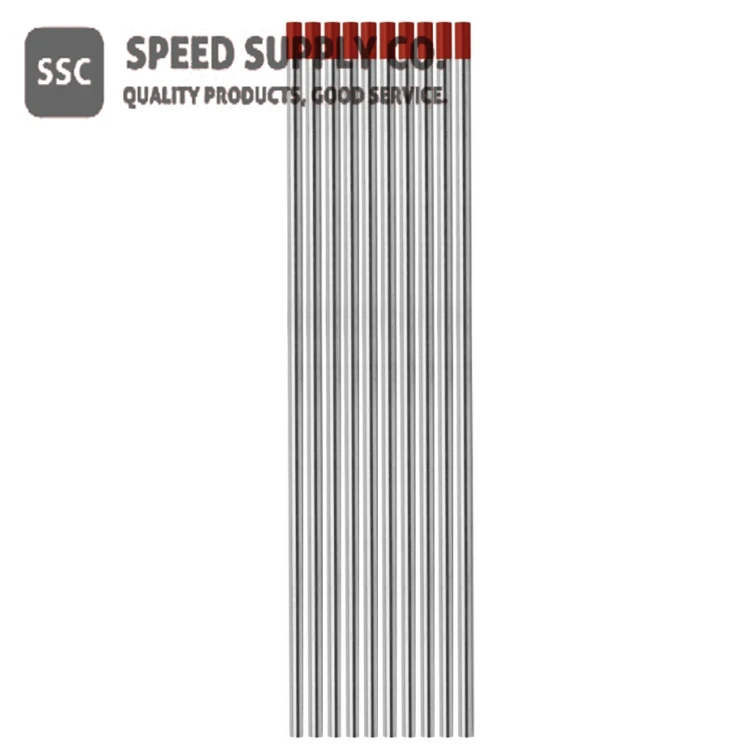

2% Thoriated Tungsten

Nqe lus piav qhia:

2% Thoriated Tungsten yog ib qho kev ua haujlwm siab tungsten electrode alloyed nrog 2% thorium oxide. Nws yog renowned rau nws tshwj xeeb durability, superior arc stability, thiab zoo heev kuj rau thermal thiab hluav taws xob yaig. Qhov no tungsten electrode yog tsim tshwj xeeb los tiv thaiv kev kub siab thiab yog ib qho kev xaiv nrov rau precision vuam nyob rau hauv ntau yam lag luam. Nrog nws txhim khu kev qha ignition thiab kev ua tau zoo ib yam, 2% Thoriated Tungsten kom meej thiab zoo welds.

Nta:

● Zoo heev Arc Ignition thiab Stability: Qhov sib ntxiv ntawm 2% thorium oxide muab superior arc ignition thiab stability, ua rau nws haum rau AC thiab DC vuam daim ntaub ntawv.

● High Heat Resistance: 2% Thoriated Tungsten exhibits zoo heev tiv thaiv thermal thiab hluav taws xob yaig, ua kom nws tiv taus qhov kub thiab txias.

● Extended Electrode Life: Lub tungsten electrode no muaj qhov kub hnyiab, ua rau lub neej ntawm electrode ntev dua thiab txo qis qis rau kev hloov pauv.

● Txhim khu kev ua tau zoo: Cov electrode qhov ua tau zoo ib yam lav qhov tseeb thiab rov ua dua welds, ua rau nws tsim nyog rau kev siv vuam tseem ceeb.

● Versatility: 2% Thoriated Tungsten yog tsim rau ntau yam khoom, xws li stainless hlau, carbon hlau, npib tsib xee alloys, thiab cov hlau tsis muaj hlau.

Qib:

2% Thoriated Tungsten muaj nyob hauv ntau qib, suav nrog:

● WT20: Qib feem ntau siv, WT20 yog tsim rau ob qho tib si AC thiab DC vuam daim ntaub ntawv. Nws muab kev ua tau zoo hauv ntau yam ntaub ntawv thiab yog qhov zoo tagnrho rau kev siv vuam dav dav.

● WT24: WT24 yog tsim los rau DC vuam daim ntawv thov thiab muaj kev ua tau zoo ntawm cov qib siab dua tam sim no. Nws yog feem ntau siv rau hauv daim ntawv thov uas yuav tsum tau ua kom muaj cua sov, xws li aerospace thiab lub zog tsim hluav taws xob.

Daim ntawv:

Peb 2% Thoriated Tungsten muaj nyob rau hauv cov ntaub ntawv hauv qab no:

● TIG Electrodes: Precision-hauv av electrodes uas muaj qhov sib xws, haum rau Tungsten Inert Gas (TIG) vuam.

● Tungsten Rods: Khoom tungsten rods muaj nyob rau hauv ntau qhov ntev thiab txoj kab uas hla, haum rau ntau yam kev siv vuam.

Specifications ntawm 2% Thoriated tungsten:

● Muaj pes tsawg leeg: 2% Thoriated Tungsten (98% Tungsten, 2% Thorium Oxide)

● Melting Point: Kwv yees li 3,420 degree (6,188 degree F)

● Ceev: 19.2 g / cm³

● Xim: Liab los yog txiv kab ntxwv

● Tensile Zog: 700-900 MPa

● Hardness: 230-270 HV

● Kev Siv Hluav Taws Xob: 31% IACS (International Annealed Copper Standard)

● Thermal conductivity: 174 W/m·K

● Txoj kab uas hla: Feem ntau muaj nyob rau hauv txoj kab uas hla ntawm {{0}}.5mm (0.020") txog 6.4mm (1/4").

● Ntev: Muaj ntau qhov ntev, feem ntau 150mm (6 ") lossis 175mm (7").

● Nto tiav: Hauv av lossis polished

● Electrode Tip Geometry: Pointed, truncated, los yog balled, nyob ntawm daim ntawv thov thiab vuam txoj kev.

Txoj kev tsim khoom:

Peb 2% Thoriated Tungsten electrodes yog tsim los siv cov txheej txheem tsim tshwj xeeb. Cov hmoov tungsten yog sib xyaw nrog tus nqi ntawm thorium oxide, ua raws li cov txheej txheem nias thiab sintering los tsim cov duab electrode uas xav tau. Kev tswj xyuas nruj nruj yog siv thoob plaws hauv cov txheej txheem tsim khoom kom ntseeg tau tias cov electrodes zoo ib yam thiab zoo.

Daim Ntawv Thov & Lwm Cov Kev Lag Luam:

2% Thoriated Tungsten electrodes pom cov ntawv thov hauv ntau qhov kev lag luam, suav nrog:

● Aerospace thiab aviation

● Kev tsim hluav taws xob

● Petrochemical thiab tshuaj lom neeg kev lag luam

● Automotive manufacturing thiab kho

● Fabrication ntawm cov hlab ntsha siab

● Precision vuam ntawm cov khoom siv kho mob

● Semiconductor thiab electronics manufacturing

● Kev siv vuam dav dav hauv kev tsim kho thiab kev lag luam hlau

Health & Safety Information:

● Tuav 2% Thoriated Tungsten electrodes nrog kev saib xyuas thiab siv cov khoom tiv thaiv tus kheej tsim nyog (PPE) xws li hnab looj tes thiab tsom iav kev nyab xeeb.

● Tsis txhob nqus cov tungsten plua plav lossis pa taws los ntawm kev ua kom muaj cua txaus lossis siv kev tiv thaiv ua pa thaum tsim nyog.

● Khaws cov electrodes hauv qhov chaw qhuav kom tiv thaiv kom tsis txhob ya raws thiab muaj peev xwm degradation.

● Ua raws li kev pom zoo kev nyab xeeb thiab cov lus qhia muab los ntawm cov neeg tswj hwm thiab cov chaw tsim hluav taws xob electrode.

Peb qhov zoo:

● Hwm Zoo: Peb tau cog lus los muab cov khoom zoo 2% Thoriated Tungsten electrodes uas ua tau raws li cov qauv kev lag luam thiab cov neeg siv khoom xav tau.

● Customized Solutions: Peb pab neeg tuaj yeem muab cov kev daws teeb meem tungsten electrode kom tau raws li cov kev thov tshwj xeeb.

● Kev Ua Tau Zoo: Peb cov khoom siv hluav taws xob muaj cov khoom siv hluav taws xob zoo tshaj plaws, kev ruaj ntseg, thiab kev ua haujlwm zoo ib yam, kom ntseeg tau tias muaj kev ntseeg tau thiab meej welds.

● Kev xa tawm raws sijhawm: Peb ua qhov tseem ceeb ntawm kev xa khoom sai kom ntseeg tau tias peb cov neeg siv khoom tau txais lawv cov xaj raws li lub sijhawm pom zoo, txo qis qis qis thiab ua kom muaj kev ua haujlwm vuam zoo.

● Competitive Pricing: Peb siv zog muab cov nqi sib tw rau peb 2% Thoriated Tungsten electrodes, muab cov kev daws teeb meem zoo yam tsis muaj kev cuam tshuam rau qhov zoo.

● Kev Pabcuam Cov Neeg Siv Khoom Tshwj Xeeb: Peb pab neeg paub thiab ua haujlwm tau mob siab rau muab kev pabcuam zoo rau cov neeg siv khoom. Peb nyob ntawm no los teb cov lus nug, muab kev txhawb nqa, thiab pab cov neeg siv khoom hauv kev xaiv cov electrodes rau lawv cov kev xav tau tshwj xeeb vuam.

FAQs:

Q: Dab tsi yog qhov zoo ntawm kev siv 2% Thoriated Tungsten electrodes?

A: 2% Thoriated tungsten electrodes muab cov khoom siv hluav taws xob zoo heev, kev ruaj ntseg, thiab tiv thaiv thermal thiab hluav taws xob yaig. Lawv muab kev txhim khu kev qha, txuas lub neej electrode, thiab tsim nyog rau ntau yam khoom siv thiab kev siv vuam.

Q: 2% Thoriated Tungsten puas siv tau rau AC thiab DC vuam?

A: Yog lawm, qee qib zoo li WT20 haum rau ob qho tib si AC thiab DC vuam daim ntawv thov. Txawm li cas los xij, cov qib tshwj xeeb xws li WT24 yog tsim los rau DC vuam thiab ua tau zoo hauv cov ntawv thov uas yuav tsum tau ua kom sov siab.

Q: Hauv kev lag luam twg yog 2% Thoriated Tungsten feem ntau siv?

A: 2% Thoriated Tungsten electrodes pom cov ntawv thov hauv kev lag luam xws li aerospace, lub zog tsim hluav taws xob, petrochemicals, tsheb, khoom siv kho mob, thiab ntau yam kev tsim kho thiab kev siv hlau ua haujlwm.

Q: Puas muaj kev ceev faj tshwj xeeb thaum siv 2% Thoriated Tungsten electrodes?

A: Nws yog ib qho tseem ceeb los tswj cov electrodes nrog kev saib xyuas thiab siv cov cuab yeej tiv thaiv tus kheej (PPE) kom txo tau qhov raug. Kev tso cua kom txaus thiab khaws cia hauv qhov chaw qhuav yog pom zoo. Ua raws li cov lus qhia kev nyab xeeb uas muab los ntawm cov cai tswj hwm thiab cov chaw tsim khoom electrode.

Q: Koj puas tuaj yeem muab cov kev daws teeb meem rau cov kev xav tau tshwj xeeb vuam?

A: Yog lawm, peb pab neeg muaj kev paub dhau los hauv kev muab 2% Thoriated Tungsten electrode kev daws teeb meem raws li kev siv vuam tshwj xeeb thiab cov cai. Tiv tauj peb los tham txog koj cov kev xav tau.
