Muaj nuj nqi
CAS Nr:. | 7440-32-6 |
Linear Formula: | Ti |
Khoom siv: | Ntshiab Titanium |
Purity: | Ntau dua lossis sib npaug li 99.5 feem pua |
Cov tsos mob: | Nyiaj |
Cov duab: | Spherical hmoov |
Particle Loj: | 0-15/15-53/45-105/75-150μm |
Cov ntsiab lus Oxygen: | 800-1500ppm |

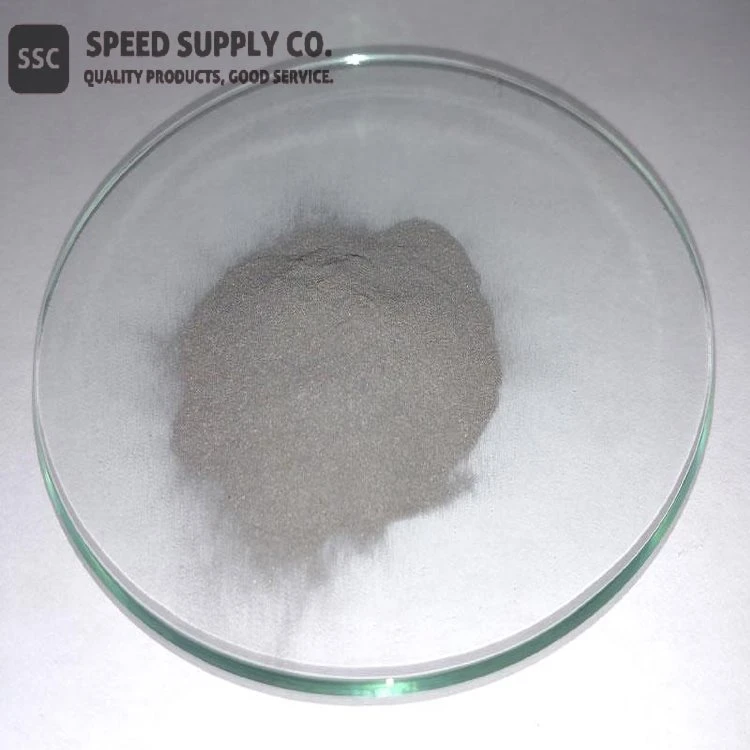

Spherical Titanium hmoov Description
Txoj kev ntawm 3D luam ntawv titanium, tseem hu ua direct hlau laser sintering (DMLS), yog ib tug additive hlau fabrication txheej txheem. Cov txheej txheem no tsim los ntawm cov hauv paus ntsiab lus ntawm 3D luam ntawv los ntawm kev siv cov khoom siv hlau rau kev siv hluav taws xob ncaj qha hauv txhua qhov chaw uas yuav xav tau kev siv cov thev naus laus zis tam sim ntawd.
3D luam ntawv titanium qauv yog luam tawm nyob rau hauv titanium hmoov uas yog sintered ua ke los ntawm ib tug laser los tsim cov khoom siv kawg. 3D luam tawm unpolished titanium qauv yog me ntsis greyer thiab ntau matte nrog ib tug me ntsis rougher thiab tsawg txhais nto. Txawm li cas los xij, 3D luam ntawv tuaj yeem tsim cov qauv titanium nyuaj uas cov txheej txheem ib txwm tsis tuaj yeem ua tiav.
Peb spherical titanium hmoov rau additive manufacturing (3D printing / ceev prototyping) yog muaj nyob rau hauv ib tug ntau yam ntawm particle loj distributions uas yog tailored rau tus neeg additive manufacturing tshuab. Lawv kuj tuaj yeem raug kho raws li qhov yuav tsum tau ua ntawm qhov kawg daim ntawv thov, ob qho tib si ntawm kev ua haujlwm ntawm kev ua haujlwm thiab qhov chaw tiav.
Ntawm SSC, peb tau tsim peb cov khoom zoo 3D luam ntawv hlau hmoov rau cov kev cai tshwj xeeb ntawm kev tsim khoom ntxiv. Cov neeg siv thoob plaws lub ntiaj teb ua tiav cov txiaj ntsig zoo nrog peb cov khoom thiab muab nqi rau lawv rau cov yam ntxwv hauv qab no.
Cov yam ntxwv ntawm Spherical Titanium hmoov rau 3D Printing
● Excellent flowability
● Zoo spherical zoo
● Tswj cov pa oxygen thiab nitrogen cov ntsiab lus
● Tag nrho cov ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom
● Zoo meej reproducibility
Spherical Titanium hmoov Specification
Qib | feem ntau muaj pes tsawg leeg (wt. feem pua) | Cov impurities Max. | ||||||
Ti | Fe | C | N | H | O | Lwm yam ntsiab lus | ||
Ib leeg | Saum | |||||||
TA1 | tshuav nyiaj li cas | 0.2 | 0.08 | 0.03 | 0.015 | 0.18 | 0.1 | 0.4 |
TA 2 | tshuav nyiaj li cas | 0.3 | 0.08 | 0.03 | 0.015 | 0.25 | 0.1 | 0.4 |
TA3 | tshuav nyiaj li cas | 0.3 | 0.08 | 0.05 | 0.015 | 0.35 | 0.1 | 0.4 |
Spherical Titanium hmoov daim ntawv thov thiab lwm yam lag luam
● 3D Luam Ntawv
● Nws yog xim hlau additives
● Cov foob pob hluav taws
Chemical Identifiers
Linear Formula | Ti |
MDL Number | PAB 00011264 |
EC No. | 231-142-3 |
Beilstein/Reaxys No. | N/A |
Pubchem CID | 23963 |
SMILES | [Ti] |
InchI ID nkag mus | InChI=1S/Ti |
InchI Key | RTAQQCXQSZGOHL-UHFFFAOYSA-N |
Titanium hmoov Properties (Theoretical)
Molecular Luj | 47. |
Qhov tshwm sim | Nyiaj |
Melting Point | 1668 degree |
Boiling Point | 3560 degree |
Qhov ntom | 4.54 g / cm²3 |
Solubility hauv H2O | N/A |
Crystal Phase / Qauv | Hexagonal |
Hluav taws xob Resistivity | 42 0 microhm-cm @ 20 degree |
Electronegativity | 1.45 Nws |
Kub ntawm Fusion | 14.15 kJ/mol |
Kub ntawm Vaporization | 425 kJ / mol |
Poisson tus ratio | 0.32 |
Tshwj xeeb kub | 0.125 Cal/g/K @ 25 degree |
Tensile zog | 140 MPa |
Thermal conductivity | 21.9 W/(m·K) @ 298.2 K |
Thermal Expansion | 8.6 µm·m-1·K-1(25 degree) |
Vickers Hardness | 830-3420 MPa |
Young's Modulus | 116 GPa |
Titanium hmoov Health & Safety Information
Lus Cim | Kev phom sij |
Cov Lus Qhia Txog Hazard | H250 |
Hazard Codes | P210-P231-P280-P302 plus P334-P370 plus P378-P422 |
Cov Lus Qhia Ua Ntej | P210-P280-P240-P241-P370 plus P378 |
Flash Point | Tsis siv tau |
Risk Codes | N/A |
Cov lus hais txog kev nyab xeeb | N/A |
RTECS Number | N/A |
Cov ntaub ntawv thauj mus los | UN1383- chav kawm 4.2 - PG 1- Pyrophoric hlau, no.s., HI: tag nrho |
WGK Germany | 1 |
GHS Daim duab | GHS02 Nplaim
|
