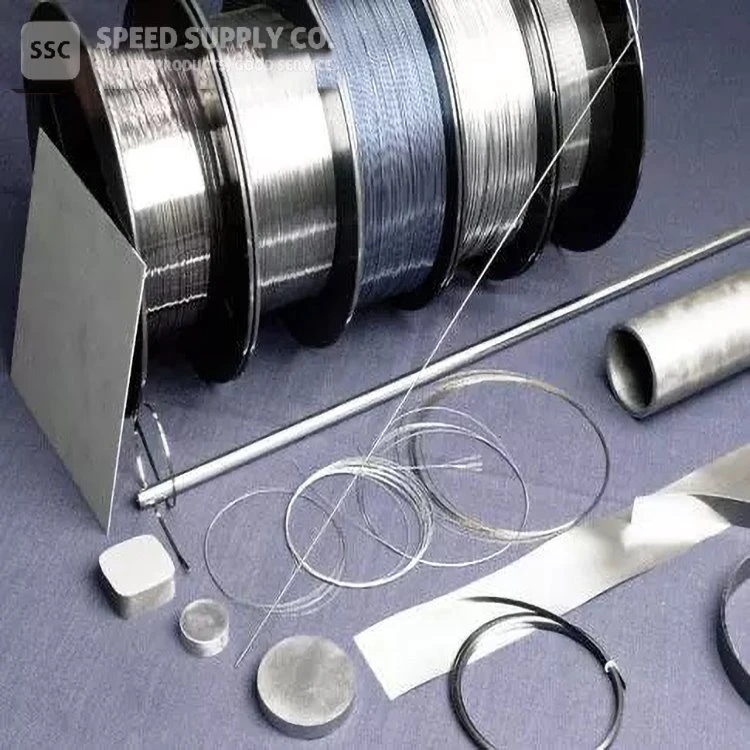

Cov Khoom Siv Memory Alloy
Khoom siv: Ti-Ni Alloy, Ti-Ni-Cu Alloy, Ti-Ni-Nb Alloy, Ti-Ni-Co Alloy
Muaj nuj nqi
Khoom siv: | Ti-Ni Alloy, Ti-Ni-Cu Alloy, Ti-Ni-Nb Alloy, Ti-Ni-Co Alloy |
Cov khoom: | Billet / Slab, Coil / Hlau Qws, Bar / Qws, Phaj, Ntiv nplhaib, Redraw Hlau, Hlau, Sawb, Tube / Capillary |
Shape Nco Alloy Description
Cov duab nco alloys yog cov hlau uas, txawm tias lawv dhau los ua deformed ntawm qhov kub thiab txias, lawv yuav rov qab mus rau lawv cov duab qub ua ntej deformation yooj yim los ntawm kev ua kom sov. Alloys nrog cov yam ntxwv txawv txawv no yog siv los ua cov khoom siv hauv cov ntsuas kub, cov actuators, thiab clamping fixtures.
Cov hlau no kuj muaj qhov zoo hu ua superelasticity; zoo li roj hmab, thaum nws khoov los yog ncab, nws yuav rov qab mus rau nws qhov qub qub thaum lub zog deforming raug tshem tawm. Cov yam ntxwv ntawm kev rov qab zoo li no txawm tias deformation ntau heev yog siv rau hauv cov ntawv thov hauv cov khoom siv rau lub neej txhua hnub, hauv cov khoom siv hluav taws xob thiab hluav taws xob, thiab hauv kev kho mob.Tam sim no muaj ntau lub kaum os hom alloys nrog xws li cov duab-nco cov khoom thiab superelasticity, tab sis Ni- Ti alloys muaj qhov zoo tshaj plaws zoo-rov qab ua haujlwm, durability, thiab corrosion-ua hauj.
Shape memory alloy tseem hu ua SMA, ntse hlau, nco hlau, nco alloy, leeg hlau, ntse alloy, thiab lwm yam .. Nws yog suav hais tias yog ib qho ntawm cov khoom siv ntse tshaj plaws hauv kev ua lag luam niaj hnub no. Nws tuaj yeem muab cov kev daws teeb meem tshiab hauv ntau daim ntawv thov (xws li actuator, biomedical application, clamping systems, thiab lwm yam). Ntawm cov khoom lag luam muaj cov cim xeeb alloys, npib tsib xee-titanium (Ni-Ti thiab Ni-Ti raws li nitinol alloy) yog qhov zoo tshaj vim lawv cov kev ua tau zoo, kev ntseeg tau, thiab cov khoom siv rov qab zoo. Ni-Ti yog qhov txaus nyiam rau kev siv kho mob vim nws cov biocompatibility, corrosion kuj, thiab qaug zog tus cwj pwm. Nitinol yog ib txwm siv los ua cov hniav hniav, tsom iav thiab stents.
Nickel titanium alloy yog mos, yog li nitinol spectacle thav duab yog xis hnav. Thiab yog tias lawv khoov tau yuam kev, tus neeg hnav tuaj yeem rov qab cov thav duab rau lawv cov duab qub los ntawm kev muab tso rau hauv dej kub.
SSC yog lub ntiaj teb thawj coj hauv kev kho mob thiab kev lag luam daim ntawv thov uas xav tau nitinol alloys thiab cov txheej txheem tsim khoom. Nrog rau ntau xyoo ntawm kev tsis tu ncua ua kom muaj peev xwm hauv nitinol metallurgy, peb yog tus khub zoo tshaj plaws rau kev tsim cov khoom zoo heev nco alloy khoom.
Cov yam ntxwv ntawm Shape Memory Alloy
● Cov duab zoo-nco, rov ua tau zoo
● Superb corrosion kuj
● Kev lees paub zoo los ntawm peb cov kev tsim khoom sib xyaw ua ke
● High-precision ntaus ntawv tsim
● Ntau hom duab (Ultrafine hlau, Ultrathin nplooj ntawv, Hlau, Ntau yam springs)
Lub cev muaj zog ntawm cov duab Memory Alloy
Martensite theem | Austenite theem | |
Modulus ntawm transverse elasticity | 5-10 [GPa] | 15-25 [GPa] |
Young's modulus | 15-30 [GPa] | 50-70 [GPa] |
Hardness | 180-300 [Hv] | 300-400 [Hv] |
Repture kev nyuaj siab | 700-1000 [MPa] | 1200-1500 [MPa] |
Elongation | -30 [%) | -20［％］ |
Qhov ntom | 6. 4-6.5 [g/cm3] | |
Tshwj xeeb kub | 0.3 [kJ / (kg・K)] | |
Hluav taws xob tsis kam | 0.5-1.1 [10-6Ω・m] | |
Thermal conductance | 21 [W / (m・K )] | |
Linear expansion coefficient | 10 [10-6 / K] | |
Hom alloy
nyhuv | Hlau alloys | Transformation kub (degree) | Recoverable strain (%) | Kub hysteresis (degree) | Temperature Cycle Properties | Daim ntawv thov piv txwv |
Duab Ntxoo Ntxoov Ntxoo | NiTi | -20-70 | 1 | 2-3 | ＞1, 000, 000 | Sensor Actuator (Lub neej voj voog ntev) |
Ni-Cu | 40-80 | 5-6 | 10-15 | ＜50, 000 | Sensor Actuator (Loj stroke) | |
NiTi | -10-100 | 6-8 | 20-40 | ＜100 | Connectors Couplings | |
Superelasticity | NiTi | − | 6-8 | − | − | Ntau yam Caij Nplooj Ntoos Hlav |
Peb Cov Txheej Txheem Ua Haujlwm
● Laser-txiav
● Kev teeb tsa zoo
● EDM
● Sib tsoo
● Nto tiav
● Koom nrog
● Coiling
● Kev Tshuaj Xyuas / Kev Ntsuas
Peb Cov Khoom Specifications
Billet & Slab
● Cov xwm txheej - kub forged
● Loj - ntau yam
● Nto tiav
Raws li forged oxide
Raws li dov oxide
Peeled / tshuab
Coil / Hlau Qws
● Cov xwm txheej - kub dov
● Nominal diameters
0.250" (6.35mm)
0.330" (8.38mm)
0.390" (9.91mm)
0.465" (11.58mm)
0.551" (14.00mm)
0.590" (14.99mm)
● Nto tiav - raws li dov oxide
Bar / Qws
● Cov xwm txheej
Kub dov
Kub dov thiab kub kho (hnub nyoog) rau kev coj tus cwj pwm superelastic ntawm chav tsev kub
● Txoj kab uas hla - 0.500" (12.7mm) txog 1.270" (32mm) nrog rau qhov loj me raws li qhov kev thov
● Nto tiav
Hauv nruab nrab
Oxide (yog tias kub kho)
Raws li kub dov oxide
Optional precision phom drilling
Phaj
● Cov xwm txheej - kub dov
● Thickness range – 0.125" (3.18mm) thiab siab dua
● Kev cai ntev thiab dav, feem ntau 12 "x 48" (300mm x 1200mm)
● Nto tiav
Hom - xuab zeb blasted
Yeem - raws li dov oxide
Nplhaib
● Cov xwm txheej - kub nplhaib dov
● Loj - ntau yam
● Nto tiav
Raws li dov oxide
Tshuab
Redraw Hlau
● Cov xwm txheej - raws li kos nrog kev ua haujlwm txias txog li 50 feem pua
● Txoj kab uas hla - {{0}}.050" (1.27mm) txog 0.350" (8.89mm)
● Nto tiav
Oxide dawb (pickled / etched)
Raws li kos oxide
● Feem ntau muab rau ntawm DIN 355 lossis vuam hlau spools - lwm txoj hauv kev thov
Hlau & Sawb
● Hlau txoj kab uas hla - Ø{{0}}.001" (25.4 µm) txog 0.185" (4.7 hli)
● Strip Size – Dav: {{0}}}012" (0.305 mm) txog 0.200" (5.08), Thickness: 0.003" (76.2 µm) rau 0.040 "(1.016 mm)
● Nto tiav
Mos dub oxide (chalky kev ntxhib los mos)
Hard dub oxide
Oxide tsis muaj tshuaj lom neeg (chemical etch)
Oxide dawb polished (chem etch ntxiv rau txhua yam polished)
Amber oxide
● Feem ntau muab rau ntawm DIN 100, DIN 125, DIN 355, lossis lwm cov neeg siv khoom txhais tau
Tube / Capillary
● Diameter – Ø{0}} 005" (0.127mm) txog 0.472" (11.989mm)
● Txheem tiav
Lub teeb Oxide OD - raws li Drawn ID (Hypo raj)
Lub teeb Oxide OD - Oxide Free ID (Hypo raj)
Kev sib xyaw ntawm Lub Teeb Oxide thiab Oxide Dawb ODs & IDs (Stent)
Av OD - Oxide Free ID (Precision Tube)
Daim ntawv thov ntawm Shape Memory thiab Superelastic Alloy
● Cov khoom siv hluav taws xob: cov khoom siv kas fes, kav hlau txais xov xov tooj ntawm tes
● Industrial machinery: Yeeb nkab seams, hluav taws kub dampers
● Cov cuab yeej siv hauv tsev: sib tov dej faucets, roj dej rhaub, dej tswj li qub, cov qhov cua hauv qab, cov dej kub kaw rau cov dej lim dej
● Kev thauj cov tshuab thiab khoom siv: evaporative emission control systems
● Cov khoom siv ntawm tus kheej: Brassiere underwires, tsom iav qhov muag, lub xub pwg pluaj xov hlau, petticoats, accessories
● Cov khoom siv kho mob: kho hniav cog, orthodontic braces hlau, coj cov xov hlau
● Cov Khoom Ua Si: Cov khoom ua si, spinner lures, nuv ntses los ntawm hlau
