CAS Nr:. | 7440-15-5 |
Linear Formula: | Re |
Purity: | 99.95 feem pua, 99.99 feem pua |
Cov duab: | Raub, Bar |
Loj: | Txoj kab uas hla 3.175-127mm (0.125"-5"), Ntev Customized |

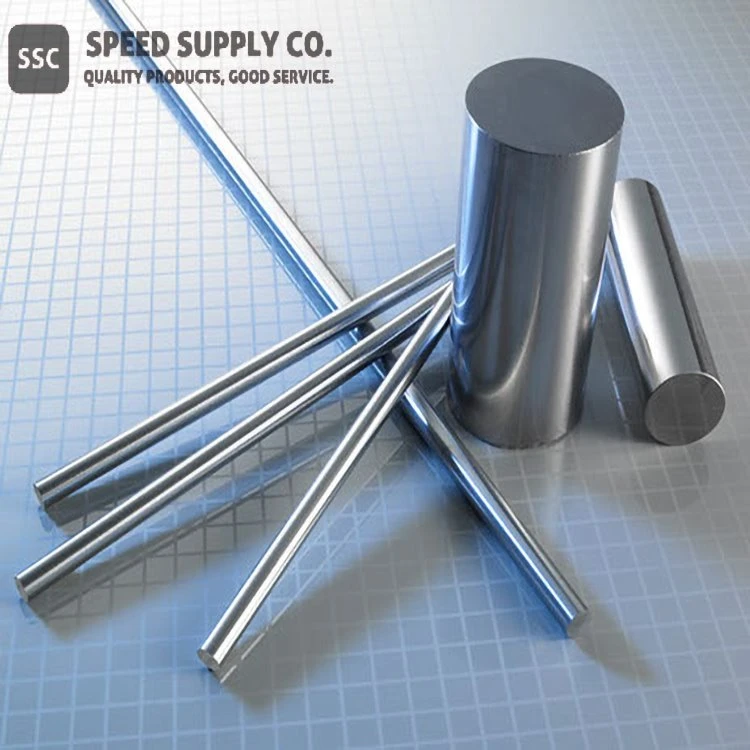

Rhenium Qws thiab Bar Description
Ntshiab rhenium pas nrig thiab bar (99.99 feem pua ntshiab) muab siab ductility thiab lub zog, tsim rau ntau yam kev siv xws li satellite positioning nozzles, aerospace propulsion Cheebtsam thiab lwm yam xav tau qhov chaw uas yuav tsum tau tiv heev thermal shock, siab kub thiab kev ntxhov siab daim ntawv thov.
SSC yog tus kws tshaj lij hauv kev tsim rhenium pas nrig thiab bar. Peb tsim rhenium pas nrig thiab rhenium bar los ntawm raw khoom APR (ammonium perrhenate) pib hmoov mus txog rau cov khoom tiav. Rhenium bar thiab rhenium pas nrig tuaj yeem dov mus rau cov neeg siv khoom tshwj xeeb. Peb kuj tuaj yeem tsim cov rhenium hlau los ntawm 0.025mm txog 3.175mm ntim rau hauv coils lossis ntawm spools.
Chemical Compositions ntawm Rhenium Qws thiab Bar
Maximum Trace Metallic Impurities (Tswb los ntawm ICP-MS) (Re 99.95 Min)
Na | 0.0005 feem pua | Ti | 0.0001 feem pua | Cu | 0.0001 feem pua | Sb | 0.0001 feem pua |
Mg | 0.0001 feem pua | V | 0.0005 feem pua | Zn | 0.0002 feem pua | Ta | 0.0001 feem pua |
Al | 0.0005 feem pua | Cr | 0.0015 feem pua | Raws li | 0.0001 feem pua | W | 0.0020 feem pua |
Si | 0.0005 feem pua | Mn | 0.0001 feem pua | Zr | 0.0005 feem pua | Pb | 0.0001 feem pua |
P | 0.0005 feem pua | Fe | 0.0020 feem pua | Mo | 0.0020 feem pua | Bi | 0.0001 feem pua |
K | 0.0005 feem pua | Co | 0.0001 feem pua | Cd | 0.0001 feem pua | Se | 0.0001 feem pua |
Ca | 0.0005 feem pua | Ni | 0.0010 feem pua | Sn | 0.0001 feem pua | Tl | 0.0001 feem pua |
Maximum Gas Elements (Tsim los ntawm LECO): O {{0}}.2 feem pua , C 0.003 feem pua
Rhenium Qws thiab Bar Daim Ntawv Thov thiab Lwm Yam Kev Lag Luam
● Cov khoom siv hluav taws xob
● Thermocouples
● Kub kub qhov cub qhov chaw
● Vuam
● Hlau mesh daim phiaj
● Aerospace
● Filaments rau huab hwm coj spectrographs
● Ion ntsuas
● Kev Tshawb Fawb & Kev Tshawb Fawb
Ntim ntawm Rhenium Qws thiab Bar
Peb rhenium pas nrig thiab bar tau ua tib zoo saib xyuas kom txo qis kev puas tsuaj thaum lub sijhawm khaws cia thiab kev thauj mus los thiab khaws cia qhov zoo ntawm peb cov khoom hauv lawv qhov qub.
Chemical Identifiers
Linear Formula | Re |
MDL Number | PAB 00011195 |
EC No. | 231-124-5 |
Beilstein/Reaxys No. | N/A |
Pubchem CID | 23947 |
SMILES | [Re] |
InchI ID nkag mus | InChI=1S/Re |
InchI Key | WUAPFZMCVAUBPE-UHFFFAOYSA-N |
Rhenium Qws thiab Bar Properties (Theoretical)
Molecular Luj | 186.21 |
Qhov tshwm sim | Silvery-grey |
Melting Point | 3180 degree |
Boiling Point | 5 627d |
Qhov ntom | 21.02 g / ct |
Solubility hauv H2O | N/A |
Hluav taws xob Resistivity | 19.3 microhm-cm @ 20 degree |
Electronegativity | 1.9 Pauling |
Kub ntawm Fusion | 7.9 cal/gm mole |
Kub ntawm Vaporization | 152 K-Cal / gm atom ntawm 5627 degree |
Poisson tus ratio | 0.3 |
Tshwj xeeb kub | 0.0329 Cal/g/K @ 25 degree |
Tensile zog | 80, 000 psi |
Thermal conductivity | 0.480 W/cm/K @298.2 K |
Thermal Expansion | 6.2 µm/(m·K) |
Vickers Hardness | 2450 MPa |
Young's Modulus | 463gp ua |
