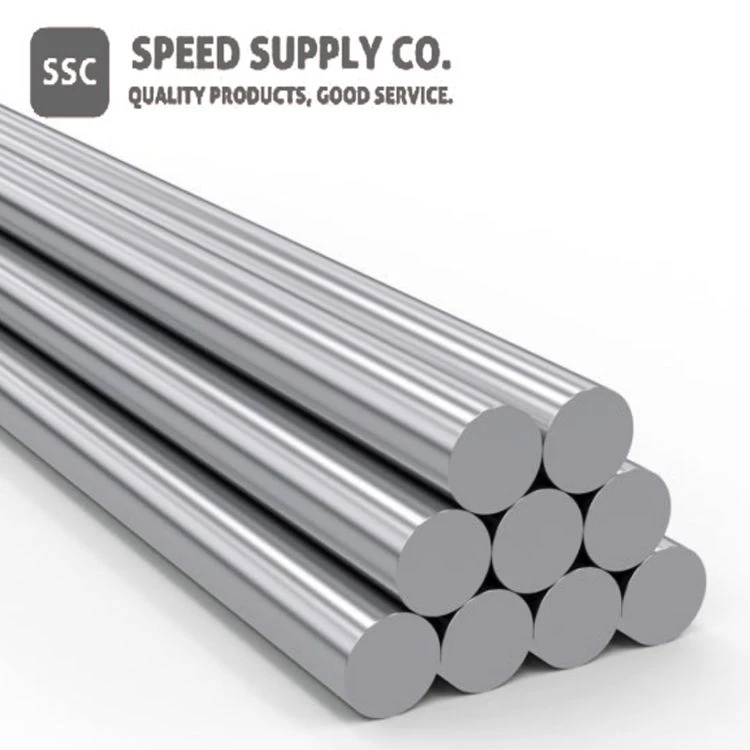

Niobium C103

Niobium C103 yog niobium-based alloy uas muaj kwv yees li 10 feem pua ​​​​hafnium thiab feem ntau hu ua C-103 lossis Nb-10Hf. Nws muaj cov khoom kub kub zoo heev thiab siv ntau yam kev siv, tshwj xeeb hauv kev lag luam aerospace thiab nuclear.

Nta:

● Lub zog siab ntawm qhov kub thiab txias

● Zoo tiv thaiv thermal stress thiab qaug zog

● Zoo heev tiv thaiv oxidation thiab corrosion

● Zoo weldability

● Tsawg thermal expansion coefficient

Daim ntawv:

Niobium C103 muaj nyob rau hauv ntau hom, suav nrog:

Daim ntawv:

● Thickness: {{0}}.025" - 0.1875" (0.64mm - 4.76mm)

● Dav: Txog 48 "(1219mm)

● Ntev: Txog 120 "(3048mm)

Foils:

● Thickness: {{0}} 0025 - 0.0254 hli (0.0001 - 0.001 nti)

● Dav: mus txog 300 mm (12 nti)

●Length: mus txog 1,{1}} meters (3,280 ft)

Phaj:

● Thickness: 0.1875" - 4" (4.76mm - 101.6mm)

● Dav: Txog 48 "(1219mm)

● Ntev: Txog 120 "(3048mm)

Bar:

● Diameter: 0.125" - 6" (3.18mm - 152.4mm)

● Ntev: Txog 144 "(3658mm)

Hlau:

● Diameter: {{0}}.002" - 0.125" (0.051mm - 3.18mm)

●Length: Spools txog 50lbs (22.68kg)

Txoj kev tsim khoom:

Niobium C103 feem ntau yog tsim los siv cov hmoov hlau metallurgy, xws li kub isostatic nias (HIP) lossis lub tshuab nqus tsev arc melting.

Daim Ntawv Thov & Lwm Cov Kev Lag Luam:

Niobium C103 feem ntau yog siv nyob rau hauv aerospace thiab nuclear industries, qhov twg nws zoo heev kub-kub zog thiab corrosion kuj yog ib qho tseem ceeb. Cov ntawv thov tshwj xeeb suav nrog:

● Jet engine Cheebtsam, xws li turbine blades thiab vanes

●Rocket cav qhov chaw, xws li nozzle inserts thiab combustion chambers

●Nuclear reactor Cheebtsam, xws li tswj rods thiab roj cladding

● Gas turbine Cheebtsam

● Kub exchangers

● Cov khoom siv tshuaj ua haujlwm

Health & Safety Information:

Niobium C103 feem ntau suav hais tias muaj kev nyab xeeb, tab sis kev ntsuas kev nyab xeeb tsim nyog yuav tsum tau ua thaum machining lossis vuam cov khoom, vim tias cov khoom zoo lossis cov pa taws yuav raug tsim.

Peb qhov zoo:

●Customization: Peb tuaj yeem muab cov khoom lag luam customized niobium C103 kom tau raws li cov neeg siv khoom tshwj xeeb.

●Quality: Peb cov khoom siv niobium C103 yog tsim los ntawm cov khoom siv zoo raw khoom thiab raug kuaj nruj kom ntseeg tau tias lawv zoo thiab kev ntseeg tau.

●Kev txawj ntse: Peb pab neeg muaj kev paub dhau los hauv kev tsim khoom thiab siv cov niobium-based alloys, cia peb muab cov kws tshaj lij kev taw qhia thiab kev txhawb nqa rau peb cov neeg siv khoom.

FAQs:

Q: Dab tsi yog qhov melting point ntawm niobium C103?

A: Lub melting point ntawm niobium C103 yog kwv yees li 2410 degree (4370 degree F).

Q: Dab tsi yog qhov txawv ntawm niobium C103 thiab niobium 1 feem pua ​​​​zirconium?

A: Niobium C103 muaj hafnium raws li cov khoom siv alloying, thaum niobium 1 feem pua ​​​​zirconium muaj zirconium. Ob lub alloys muaj cov khoom kub zoo heev thiab siv rau hauv cov ntawv zoo sib xws.

Q: Puas tuaj yeem niobium C103 welded?

A: Yog, niobium C103 muaj qhov zoo weldability thiab tuaj yeem welded siv ntau yam txuj ci, nrog rau cov kab hluav taws xob thiab laser vuam.

Q: Dab tsi yog cov txiaj ntsig ntawm kev siv niobium C103 hauv cov khoom siv dav hlau?

A: Niobium C103 lub zog siab ntawm qhov kub thiab txias, zoo tiv thaiv thermal kev nyuaj siab thiab qaug zog, thiab zoo heev corrosion kuj ua rau nws zoo tagnrho rau siv nyob rau hauv lub dav hlau engine Cheebtsam, qhov twg huab cua kub thiab kev nyuaj siab theem.
