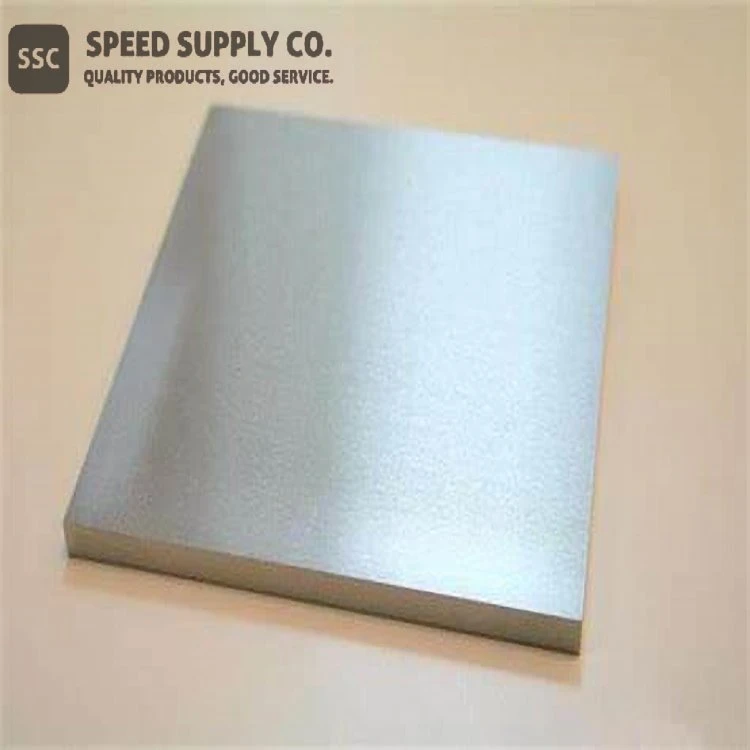

TZM Alloy

Linear Formula: Mo/ {{0}}.5 feem pua Ti/ 0.8 feem pua Zr/ 0.02 feem pua C

Muaj nuj nqi

Linear Formula:	Mo / {{0}}.5 feem pua Ti / 0.8 feem pua Zr / 0.02 feem pua C
Khoom siv:	TZM Alloy
Purity:	{{0}}.
Txuj:	ASTM B387 thiab ASTM B386

TZM Molybdenum Alloy Description

TZM yog molybdenum-raws li alloy muaj 0.5 feem pua titanium, 0.08 feem pua zirconium, 0.{{10}}3 feem pua carbon, thiab molybdenum ua kom sib npaug. Los ntawm kev sib txuas me me ntawm Ti thiab Zi, TZM moly alloy nce siab recrystallization kub, ua TZM ob zaug muaj zog li ntshiab molybdenum ntawm 1300 degree . Qhov feem pua ntawm cov doping zoo yog 0.4–0.6 feem pua ntawm titanium, 0.07-0.12 feem pua ntawm zirconium, thiab 0.01-0.04 feem pua ntawm cov pa roj carbon. SSC muaj kev paub dhau los hauv kev tsim cov khoom siv TZM siv cov hmoov sintering lossis nqus arc-casting.

TZM Alloy tuaj yeem raug hu ua: molybdenum TZM, molybdenum kub TZM, titanium-zirconium-molybdenum alloy.

TZM molybdenum muaj qhov kub siab dua recrystallization, siab zog, hardness ntawm chav tsev thiab siab kub dua li ntshiab molybdenum. Lub recrystallization kub ntawm no alloy yog kwv yees li 250 degree. Nws yog siab dua li ntshiab molybdenum thiab nws muaj peev xwm weld zoo dua. Rau kev siv lub zog siab xws li foob pob hluav taws nozzles, cov khoom siv hluav taws xob ua kom sov, thiab forging tuag, nws tuaj yeem tsim nyog tus nqi sib txawv.

TZM muaj ntau yam khoom muaj txiaj ntsig hauv qhov kub thiab txias, suav nrog lub zog siab, nkag siab tsis kam, hardness, thiab qis vapor siab. Nws kuj qhia txog qhov qis coefficient ntawm expansion; zoo heev tiv thaiv tshav kub thiab corrosion; thiab zoo machinability. Piv nrog cov ntshiab molybdenum, TZM muaj cov qauv crystalline ruaj khov dua thiab siab dua recrystallization kub. Qhov no yog vim qhov me me ntawm zirconium thiab titanium doped rau hauv molybdenum substrate. Nrog rau lawv qhov loj me me, cov khoom sib xyaw carbides Mo2C, TiC, thiab ZrC kuj pab ua kom zoo dua qub thiab tswj cov crystalline nplej ntawm molybdenum, uas nyob rau hauv lem pab cov alloy ua ntau weldable thiab creep resistant dua li ntshiab molybdenum.

Titanium-Zirconium-Molybdenum (TZM) alloy yog cov khoom siv zoo tshaj plaws rau ntau daim ntawv thov kev lag luam uas xav tau lub zog siab, cov txheej txheem kub kub, nrog rau cov khoom siv hauv aerospace, electronics, thiab thermal kho industries. TZM tshwj xeeb tshaj yog muaj txiaj ntsig zoo rau kev ua haujlwm hauv 700-1400 degree ntau yam. Piv txwv li, TZM lub siab creep kuj yog tshwj xeeb tshaj yog haum rau cov cua sov kho cov yam ntxwv Cheebtsam xws li shielding thiab txhawb qhov chaw; ua tuag rau isothermal forging; non-ferrous thiab ferrous hlau casting, thiab TZM piercing plugs. Nws weldability thiab siab recrystallization kub ua rau TZM yog ib qho kev xaiv zoo heev rau kev siv aerospace, xws li foob pob hluav taws nozzles thiab cov roj kub li qub.

Specification rau Molybdenum Alloy khoom

TZM Alloy Wire

Yam khoom npe	TZM Molybdneum Wire
Specification	ASTM B387, HOM 364
Loj	{{0}}.5mm-4.0mm txoj kab uas hla x L
Cov duab	Ncaj hlau, dov hlau
Nto	Dub oxide, tshuaj ntxuav

TZM Alloy Rod

Lub npe	TZM Molybdenum Rod
Specification	ASTM B387, HOM 364
Loj	4. 0mm-100 hli x<2000mm>
Txheej txheem	Kev kos duab, swaging
Nto	Dub oxide, tshuaj ntxuav, Sib tsoo

TZM Alloy Plate

Lub npe	TZM Alloy Plate
Specification	ASTM B386, HOM 364
Loj	4.75mm (hli) x W x L
Txheej txheem	Forging, dov
Nto	Chemically ntxuav, Sib tsoo

TZM Alloy Tube

Lub npe	Molybdenum Alloy Tube
Specification	ASTM B387, HOM 364
Loj	0.8"-20" OD, 106" max ntev rau ib daim ntawm TZM alloy tube
Txheej txheem	Sintering, drilling
Nto	Dub oxide, tshuaj ntxuav, Sib tsoo

TZM Alloy Composition

TSEEM CEEB	Ti	Zr	C	S	Fe	Ni	N	Mo
NYIAJ feem pua	0.4-0.6	0.07-0.12	0.01-0.04	Tsawg dua lossis sib npaug rau 0.006	Tsawg dua lossis sib npaug rau 0.01	Tsawg dua lossis sib npaug rau 0.005	Tsawg dua lossis sib npaug rau 0.003	Tshuav

Mechanical Specification rau Molybdenum Alloy

Tensile zog	KSI (Mpa)-RT	110 (760)
	KSI (Mpa) -500 degree	--
	KSI (Mpa) -1000 degree	--
Elongation	feem pua hauv 1.0".	15
Hardness	DPH	220
Module ntawm Elasticity	KSI	46000
Module ntawm Elasticity	Gpa	320

TZM Molybdenum Alloy Properties (Theoretical)

Compound Formula	Mo-Ti-Zr
Qhov tshwm sim	Cov khoom siv hlau hauv ntau hom (qhib, ntawv, daim hlau)
Melting Point	2623 degree
Boiling Point	N/A
Qhov ntom	10.22 g / cm3³
Solubility hauv H2O	N/A
Hluav taws xob Resistivity	6.85 micro-ohm-cm
Tshwj xeeb kub	0.073 Cal/gm/degree
Thermal conductivity	0.48 Cal/cm²/cm degree / sec
Thermal Expansion	5.20 micro-hauv / degree x 10-⁶
