Linear Formula: | Mo, Ti Zr Mo, Mo-La |
Khoom siv: | Qib 361 Mo Ntau dua lossis sib npaug li 99.95 feem pua, Qib 364 TZM Molybdenum Alloy, Molybdenum Lanthanum Alloy La2O3: 0.3 ~ 0.7 feem pua |
Purity: | Ntau dua lossis sib npaug li 99.95 feem pua |
Txuj: | ASTM B 387 Cov Lus Qhia Tshwj Xeeb |
Loj: | Sintering: Txoj kab uas hla 10-500mm ntxiv /-5mm, Qhov siab 10-600mm ntxiv /-5mm Forging: Txoj kab uas hla 10-130mm ntxiv /-1mm, Qhov siab 10-200mm ntxiv /-2mm |

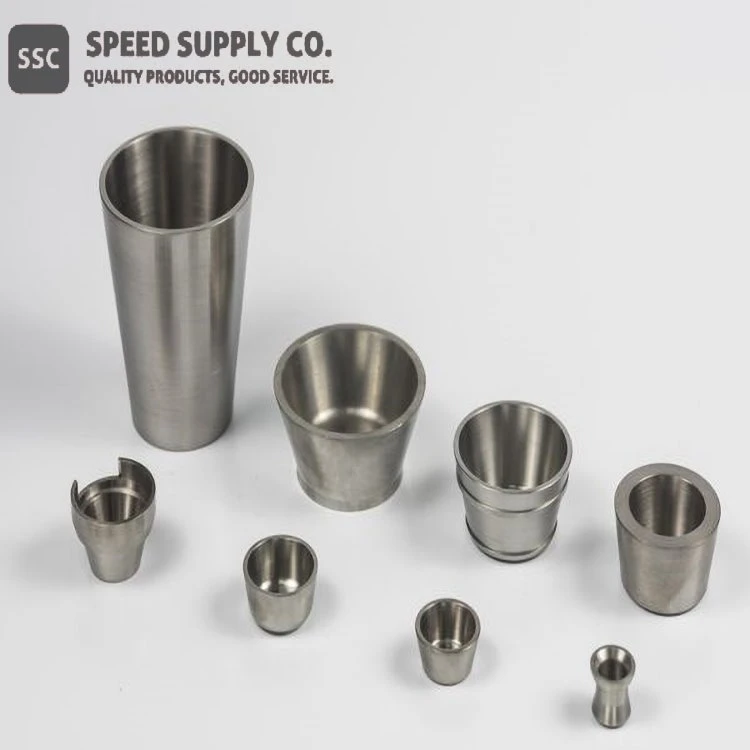

Molybdenum Crucible Description
Ntshiab molybdenum thiab molybdenum alloy crucibles yog tsuas yog siv nyob rau hauv metallurgical kev lag luam, tsis tshua muaj lub ntiaj teb kev lag luam, monocrystalline silicon, hnub ci zog, dag siv lead ua, thiab mechanical processing industries. SSC tuaj yeem muab cov molybdenum crucibles customized raws li cov neeg siv khoom kos duab thiab peb tuaj yeem muab cov kev daws teeb meem rau koj qhov kev tshawb fawb. Peb muaj cov saw hlau sib xyaw ua ke nrog lub peev xwm los ua kom zoo molybdenum hmoov, xovxwm thiab sinter ingots, thiab ntxuav molybdenum thiab molybdenum alloy crucibles. Hauv ib lo lus, SSC tuaj yeem tsim ntau hom kab, qhov siab, thiab tuab molybdenum crucibles kom haum rau peb cov neeg siv khoom xav tau.
Peb cov molybdenum crucibles yog tsim los ntawm ob txheej txheem. Ib qho yog sintered crucible, nws qhov ceev yog 9.8 ~ 10 g / cc, los ntawm txoj kev crucible yog sintered ncaj qha tom qab molding. Lwm qhov yog forging, ntom rau forged crucible tuaj yeem ncav cuag 10.2g / cc. Me Moly crucibles yog machined los ntawm forged rods & ingots. Mo-La alloy (Lanthanum oxide doped molybdenum) kuj yog siv los ua kom kub kub crucible. Mo-La alloy crucible tuaj yeem tiv taus kub siab (~ 200 degree ntxiv) dua li Moly crucible ntshiab.
Molybdenum Ncaj phab ntsa Crucibles
Muaj peev xwm | Sab nraud txoj kab uas hla | Qhov tob |
Cap (ml), 1000 | Sab nraud Dia (mm), 127 | Qhov tob (mm), 89 |
Cap (ml), 100 | Sab nraud Dia (mm), 59 | Qhov tob (mm), 45 |
Cap (ml), 10 | Sab nraud Dia (mm), 27 | Qhov tob (mm), 22 |
Cap (ml), 15 | Sab nraud Dia (mm), 33 | Qhov tob (mm), 22 |
Cap (ml), 20 | Sab nraud Dia (mm), 33 | Qhov tob (mm), 29 |
Cap (ml), 25 | Sab nraud Dia (mm), 45 | Qhov tob (mm), 22 |
Cap (ml), 35 | Sab nraud Dia (mm), 46 | Qhov tob (mm), 29 |
Cap (ml), 45 | Sab nraud Dia (mm), 46 | Qhov tob (mm), 34 |
Cap (ml), 55 | Sab nraud Dia (mm), 47 | Qhov tob (mm), 41 |
Cap (ml), 5 | Sab nraud Dia (mm), 21 | Qhov tob (mm), 18 |
Cap (ml), 75 | Sab nraud Dia (mm), 51 | Qhov tob (mm), 41 |
Molybdenum Crucible Hom
● Nias thiab Sintered Crucibles
Cov hmoov yog nias thiab sintered mus rau qhov kawg duab. Lawv yog ib qho ntawm cov hom crucibles nrov tshaj plaws.
● Spin-formed Crucibles
Loj molybdenum phaj blanks yog kub spun-tsim rau cov khoom teev geometry.
● Milled Crucibles
Cov khoom seem yog machined rau cov khoom kawg. Hom molybdenum crucible no kuj nrov heev.
● Welded Crucibles
Loj crucibles nrog thinner phab ntsa thickness, thiab peb pom zoo welded molybdenum crucibles.
Molybdenum Crucible Applications thiab Lwm yam lag luam
● Metallurgy
● Mechanism
● Tsis tshua muaj lub ntiaj teb smelting kev lag luam
● Lub tshuab nqus tsev thermal evaporation
● Nuclear roj sintering
● Capacitor sintering
● LED Sapphire Crystal Loj hlob
● Kev lag luam tshuaj
● High technology kev lag luam
● Cov khoom siv Crystalloid
● Kev Tshawb Fawb & Kev Tshawb Fawb
● Teeb pom kev zoo
● Nyias zaj duab xis tso tawm
● Txheej txheem txheej txheem
