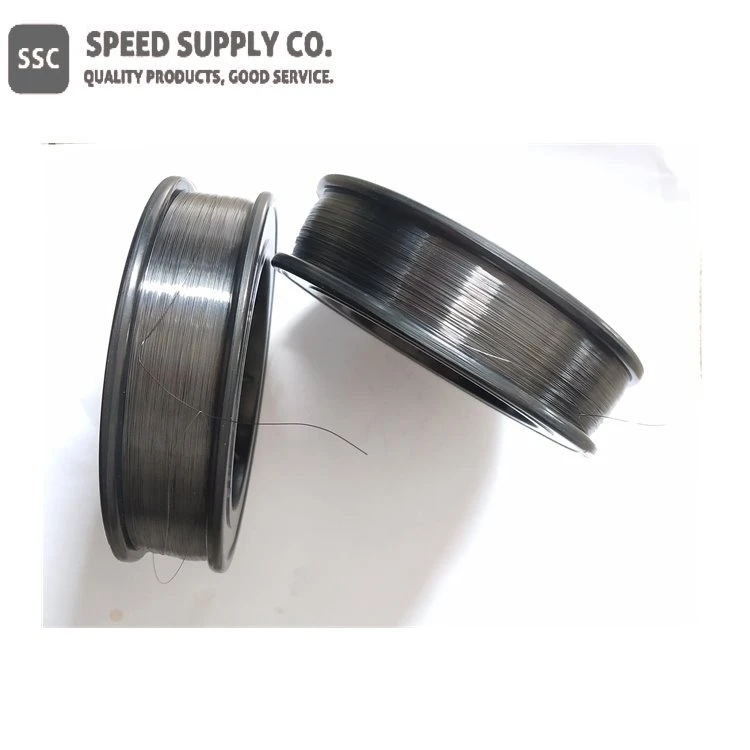

Molybdenum Hlau

Linear Formula: Mo, Ti Zr Mo, Mo-La

Muaj nuj nqi

Linear Formula:	Mo, Ti Zr Mo, Mo-La
Khoom siv:	Qib 361 Mo Ntau dua lossis sib npaug li 99.95 feem pua, Qib 364 TZM Molybdenum Alloy, Molybdenum Lanthanum Alloy La2O3: 0.3 ~ 0.7 feem pua
Txuj:	ASTM B 387 Cov Lus Qhia Tshwj Xeeb
Nto:	Dub, Tshuaj ntxuav
Loj:	{{0}}.18mm txog 4.0mm

Molybdenum Hlau Description

Thawj daim ntawv thov hlau molybdenum - cov hlau lead hauv cov teeb pom kev zoo tau tshwm sim thaum ntxov ntawm 20^thxyoo pua. Molybdenum raug xaiv rau daim ntawv thov no vim nws cov av ruaj khov ntawm qhov kub siab. Txij li thawj daim ntawv thov no, cov kws tshawb fawb thiab cov kws tshawb fawb tau tshawb pom tias lwm cov khoom ntawm molybdenum ua rau nws cov khoom xaiv rau ntau daim ntawv thov. Qee qhov no coj kom zoo dua ntawm molybdenum lub zog thiab ruaj khov ntawm qhov kub thiab txias, ib yam li thawj lub teeb xaim tau ua. Txawm li cas los xij, molybdenum muaj ntau lwm yam khoom uas ua rau nws zoo nkauj rau cov ntawv thov sab nraum cov khoom kub kub, xws li:

● High thermal conductivity

● High hluav taws xob conductivity

● Tsawg coefficient ntawm thermal expansion

● Kev tawm tsam los ntawm cov hlau molten

● Compatibility nrog feem ntau iav compositions

● Thermal shock resistance

● Siab tawv, thiab

● Kev sib raug zoo nrog cov iav siv hauv cov teeb thiab cov khoom siv hluav taws xob.

Molybdenum hlau tuaj yeem muab faib ua dawb molybdenum hlau, dub molybdenum hlau, txau molybdenum hlau, molybdenum hlau rau hlau txiav, thiab lwm yam. Molybdenum hlau feem ntau yog siv los ua cov khoom siv rau cov cua kub kub hauv qhov cub, thiab ua cua sov hlau mesh rau cov ntaub ntawv txhawb nqa. .

Loj thiab kam rau ua ntawm peb Molybdenum Hlau rau Teeb pom kev zoo:

Txoj kab uas hla (µm)	Qhov hnyav (mg / 200mm)	200mm Nyhav Tolerance (%)			Txoj kab uas hla (%)
Txoj kab uas hla (µm)	Qhov hnyav (mg / 200mm)	Qib 0	Qib 1	Qib 2	Qib 1	Qib 2
20<>	0.65<>	±2.0	±2.5	±3.0	N/A	N/A
30<>	1.47<>	±1.5	±2.0	±3.0	N/A	N/A
40<>	2.61<>	±1.0	±1.5	±3.0	N/A	N/A
400<>	N/A	N/A	N/A	N/A	±1.5	±2.5
600<>	N/A	N/A	N/A	N/A	±1.0	±2.0

Hlau nrog lwm qhov ntau thiab tsawg tuaj yeem hloov kho.

Mo Wire Finish Conditions:

Code	Qhov xwm txheej	Code	Qhov xwm txheej	Code	Qhov xwm txheej
C	Tshuaj ntxuav	DS	Drawn plus Straightened	EHS	Electrolytic Polished ntxiv rau Annealed ntxiv Straightened
CS	Chemical Cleaned plus Straightened	E	Electrolytic Polished	ES	Electrolytic Polished ntxiv Straightened
D	Kos	EH	Electrolytic Polished ntxiv rau Annealed	H	Annealed

Loj thiab kam rau ua ntawm Moly Hlau rau EDM txiav:

Qhov ntau thiab tsawg (mm)	Standard kam rau ua (mm)	Tensile zog		Elongation (%)	Length rau Standard Spool (m)
Qhov ntau thiab tsawg (mm)	Standard kam rau ua (mm)	N / hli 2	gf/mg	Elongation (%)	Length rau Standard Spool (m)
0.08	±0.002	Ntau dua lossis sib npaug rau 2340	Ntau dua lossis sib npaug rau 115	Tsawg dua los yog sib npaug 2	3500
0.10	±0.002	Ntau dua lossis sib npaug rau 2340	Ntau dua lossis sib npaug rau 115	Tsawg dua los yog sib npaug 2	3400
0.12	±0.002	Ntau dua lossis sib npaug rau 2240	Ntau tshaj los yog sib npaug rau 110	Tsawg dua los yog sib npaug 2	3200
0.14	±0.003	Ntau dua lossis sib npaug rau 2240	Ntau tshaj los yog sib npaug rau 110	Tsawg dua los yog sib npaug 2	3000
0.16	±0.003	Ntau dua lossis sib npaug rau 2040	Ntau tshaj los yog sib npaug rau 100	Tsawg dua los yog sib npaug 2	2500
0.18	±0.003	Ntau dua lossis sib npaug rau 1830	Ntau tshaj los yog sib npaug rau 100	Tsawg dua los yog sib npaug 2	2000
0.20	±0.004	Ntau dua lossis sib npaug rau 1830	Ntau dua lossis sib npaug li 90	Tsawg dua los yog sib npaug 2	1600

Muaj Cov Txheej Txheem ntawmMoly Hlau rau EDM txiav:

Code	D	E	C
Cov xwm txheej ntawm cov khoom tiav	Kos	Electrolytic Polished	Tshuaj ntxuav

Loj thiab kam rau ua rau Molybdenum Spray Hlau:

Txoj kab uas hla (mm)	Nto	Qhov hnyav (kg)	Ntim
3.17	Dub	10-25	Hauv coil
2.31	Dub	10-25	Hauv coil
1.60	Dub	10-25	Hauv coil los yog reel
1.45	Dub	10-25	Hauv coil los yog reel

Lus Cim: qhov loj thiab qhov chaw saum npoo rau molybdenum txau xaim tuaj yeem ua kev cai.

Cov xwm txheej ntawm Molybdenum Hlau rau Txau:

Code	D	E	C
Cov xwm txheej ntawm cov khoom tiav	Kos	Electrolytic Polished	Tshuaj ntxuav

Magnetron Molybdenum Hlau:

Hom	Mo1
Feem pua	Ntau dua lossis sib npaug li 99.95 feem pua
Cov ntsiab lus impurity feem pua Tsawg dua lossis sib npaug	Tag Nrho Tsawg dua lossis sib npaug rau 0.05 feem pua
Txoj kab uas hla	Φ1 0-3 00mm
Qhov hnyav	10-50 kg
Ntim	Coiled, Carton
Daim ntawv thov	Magnetron cathode thauj tog rau nkoj ntawm microwave qhov cub

Thick Molybdenum Hlau:

Khoom	Khoom siv	Txoj kab uas hla (mm)	Qhov hnyav (Kg / kauj)	Daim ntawv thov
Dub molybdenum hlau	Mo1 MoLa MoAl MoY	0.35-4.0	5-30	Raws li ib feem ntawm lub tshuab nqus tsev, hluav taws xob lub teeb, hluav taws xob cua sov. Xws li kev txhawb nqa pas nrig, tus thawj coj thiab daim phiaj, thiab lwm yam.
Ntxuav molybdenum hlau	Mo1 MoLa MoAl MoY	0.35-4.0	5-30
Redrawing molybdenum hlau	Mo1 MoLa	0.35-1.0	5-30	Rau kev ua ntawm nyias molybdenum hlau
