Moly TZM

Moly TZM yog molybdenum alloy uas muaj titanium, zirconium, thiab carbon. Nws yog cov khoom siv muaj zog thiab kub-resistant, zoo heev corrosion kuj thiab thermal stability. Moly TZM yog siv rau ntau yam kev siv, suav nrog aerospace, tiv thaiv, thiab hluav taws xob.

Nta:

● High melting point ntawm 2,623 degree (4,753 degree F)

● Lub zog muaj zog ntawm qhov kub thiab txias

● Zoo heev corrosion kuj

● Zoo thermal conductivity

● Tsawg thermal expansion coefficient

Qib:

Moly TZM muaj nyob hauv ntau qib, suav nrog TZM-364, TZM-365, thiab TZM-366, uas txawv ntawm lawv cov tshuaj muaj pes tsawg leeg thiab cov khoom siv kho tshuab.

● TZM{{0}}: Qib no muaj 0.50 feem pua ​​​​titanium, 0.08 feem pua ​​​​zirconium, thiab 0.03 feem pua ​​carbon. Nws muaj lub zog tensile ntawm 900-1000 MPa thiab lub zog tawm ntawm 780-880 MPa. TZM-364 feem ntau yog siv nyob rau hauv aerospace thiab kev tiv thaiv daim ntaub ntawv, xws li foob pob ua ntxaij nozzles thiab tshav kub shields.

● TZM{{0}}: Qib no muaj 0.50 feem pua ​​​​titanium, 0.08 feem pua ​​​​zirconium, thiab 0.05 feem pua ​​carbon. Nws muaj lub zog tensile ntawm 930-1030 MPa thiab lub zog tawm ntawm 810-910 MPa. TZM-365 feem ntau yog siv hauv cov ntawv thov hluav taws xob, xws li hluav taws xob tiv tauj thiab cov dab dej kub.

● TZM{{0}}: Qib no muaj 0.50 feem pua ​​​​titanium, 0.08 feem pua ​​​​zirconium, thiab 0.01 feem pua ​​carbon. Nws muaj lub zog tensile ntawm 970-1070 MPa thiab lub zog tawm ntawm 860-960 MPa. TZM-366 feem ntau yog siv rau hauv cov khoom siv iav, xws li cov khoom siv hluav taws xob thiab cov khoom siv hluav taws xob.

Daim ntawv:

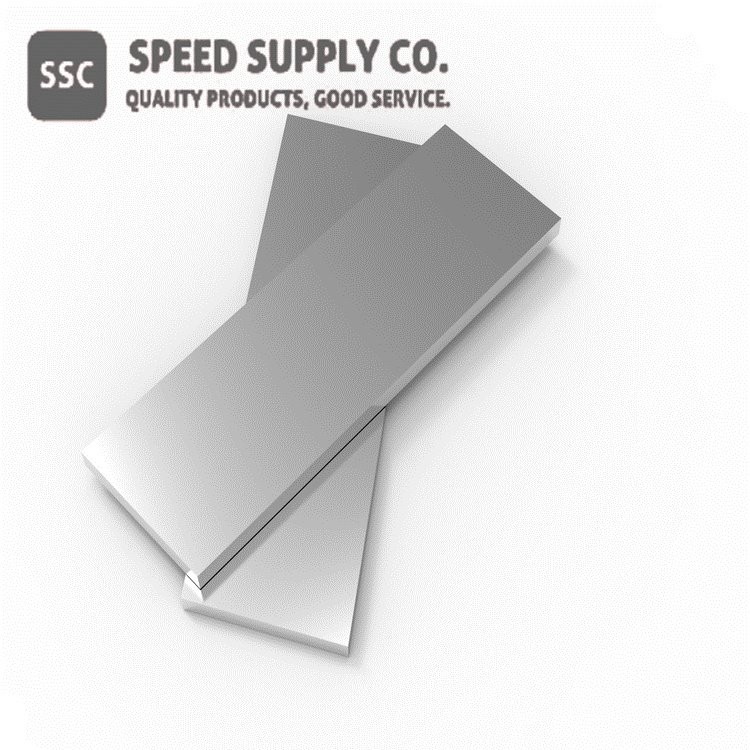

Moly TZM muaj nyob rau hauv ntau yam ntaub ntawv, xws li tuav, ntawv, phaj, thiab hlau.

● Bars/Rods: Moly TZM bars los yog rods feem ntau muaj nyob rau hauv diameters li ntawm 0.125 ntiv tes mus rau 4 ntiv tes (3.175 mm txog 101.6 mm). Qhov ntev ntawm cov tuav tuaj yeem sib txawv, tab sis cov qauv ntev yog feem ntau 12 feet (3.66 meters) lossis 14 ko taw (4.27 meters). Cov tuav yog feem ntau siv nyob rau hauv high-temperature daim ntaub ntawv, xws li lub cub tawg Cheebtsam thiab foob pob ua ntxaij nozzles.

● Sheets/Plates: Moly TZM nplooj ntawv los yog daim hlau feem ntau muaj nyob rau hauv thicknesses xws li {{0}}.020 ntiv tes mus rau 1 nti (0.51 hli mus rau 25.4 hli). Qhov dav thiab ntev ntawm cov ntawv los yog daim hlau tuaj yeem sib txawv nyob ntawm tus neeg muag khoom, tab sis cov qauv loj muaj xws li 12 ntiv tes los ntawm 12 ntiv tes (304.8 hli los ntawm 304.8 hli) thiab 24 ntiv tes los ntawm 24 ntiv (609.6 hli los ntawm 609.6 hli). Moly TZM nplooj ntawv thiab daim hlau feem ntau yog siv hauv aerospace, kev tiv thaiv, thiab kev siv tshuaj lom neeg.

● Hlau: Moly TZM hlau feem ntau muaj nyob rau hauv txoj kab uas hla ntawm {{0}}.005 ntiv tes rau 0.250 ntiv tes (0.127 hli txog 6.35 hli). Cov hlau tuaj yeem muab tau rau hauv qhov ntev ncaj los yog ntawm cov hlua. Moly TZM hlau feem ntau yog siv rau hauv kev siv hluav taws xob thiab hluav taws xob, xws li hluav taws xob tiv tauj thiab electrodes.

Txoj kev tsim khoom:

Moly TZM yog tsim los ntawm cov hmoov metallurgy lossis arc melting cov txheej txheem. Cov hlau yog tom qab ntawd ua tiav rau hauv daim ntawv xav tau, xws li tuav lossis ntawv, los ntawm forging, dov, lossis extrusion.

Daim Ntawv Thov & Lwm Cov Kev Lag Luam:

Moly TZM muaj ntau hom kev lag luam, suav nrog:

● Aerospace thiab kev tiv thaiv: Moly TZM yog siv rau hauv cov khoom siv dav hlau thiab cov foob pob hluav taws, nrog rau hauv cov foob pob hluav taws thiab cov ntaub thaiv cua sov.

● Cov Khoom Siv Hluav Taws Xob: Moly TZM yog siv rau hauv cov hluav taws xob tiv tauj thiab cov dab dej kub rau cov khoom siv hluav taws xob.

● Kev tsim iav: Moly TZM yog siv rau hauv kev tsim cov iav rau nws cov thermal stability zoo heev thiab tiv thaiv corrosion.

● Cov khoom siv kho mob: Moly TZM yog siv rau hauv cov khoom siv kho mob xws li x-ray raj thiab cov ntaub thaiv hluav taws xob.

Health & Safety Information:

Moly TZM feem ntau suav hais tias muaj kev nyab xeeb los tuav thiab siv. Txawm li cas los xij, nws tuaj yeem tsim teeb meem yog tias noj lossis nqus tau ntau. Nws raug nquahu kom hnav cov khoom tiv thaiv tsim nyog, xws li hnab looj tes thiab kev tiv thaiv ua pa, thaum tuav moly TZM. Nws tseem yog ib qho tseem ceeb kom ua raws li cov txheej txheem khaws cia thiab tuav kom zoo kom tsis txhob muaj kev sib tsoo los yog raug.

Peb qhov zoo:

Raws li lub chaw tsim khoom ntawm moly TZM, peb txaus siab rau peb tus kheej ntawm kev muab cov khoom lag luam zoo uas ua tau raws li qhov tshwj xeeb xav tau ntawm peb cov neeg siv khoom. Peb pab pawg kws tshaj lij muaj kev paub ntau thiab kev paub dhau los hauv kev tsim khoom thiab kev ua haujlwm ntawm moly TZM, kom ntseeg tau tias peb cov khoom ua tau raws li cov qauv siab tshaj plaws ntawm kev ua tau zoo thiab kev ua haujlwm zoo. Tsis tas li ntawd, peb muab kev ntim khoom yooj yim thiab kev xa khoom xa tuaj kom haum raws li cov kev xav tau tshwj xeeb ntawm peb cov neeg siv khoom.

FAQs:

Q: Dab tsi yog qhov kub siab tshaj plaws uas moly TZM tuaj yeem tiv taus?

A: Moly TZM muaj qhov siab melting point ntawm 2,623 degree (4,753 degree F) thiab tuaj yeem tiv taus kub txog 1,400 degree (2,552 degree F) hauv oxidizing ib puag ncig.

Q: Qhov txawv ntawm moly TZM thiab ntshiab molybdenum yog dab tsi?

A: Moly TZM muaj titanium, zirconium, thiab carbon, uas txhim kho nws lub zog, thermal stability, thiab corrosion kuj piv rau cov ntshiab molybdenum.

Q: Moly TZM puas tuaj yeem welded?

A: Yog, moly TZM tuaj yeem welded siv cov txheej txheem vuam xws li tungsten inert gas (TIG) vuam thiab electron beam vuam.
