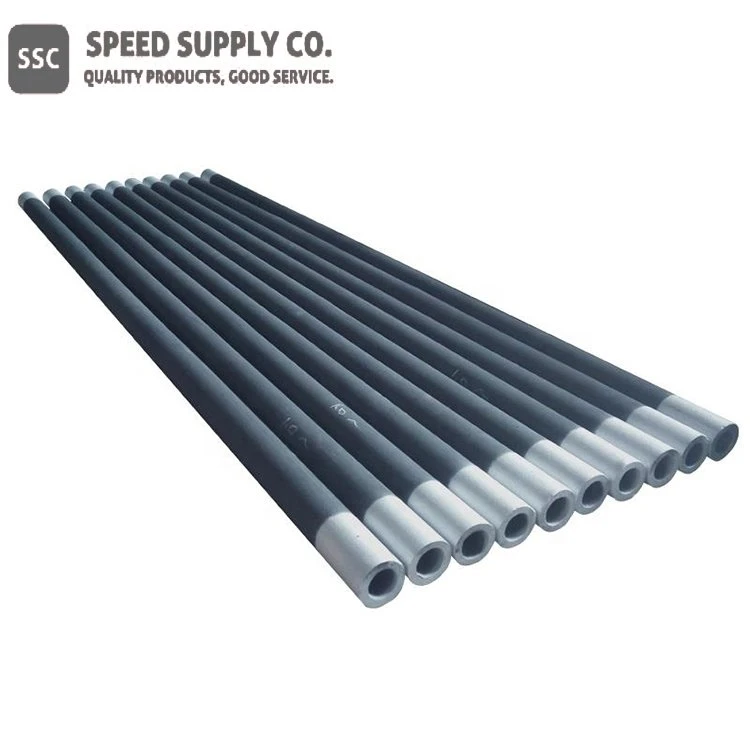

Sib npaug Diameter Silicon Carbide Heating Rod

CAS Nr.: 409-21-2

Muaj nuj nqi

CAS Nr:.	409-21-2
Linear Formula:	SiC
Cov duab:	Qws
Qhov tsos:	Dub thiab Dawb
Specification:	Raws li Kev Xav Tau

Sib npaug Diameter Silicon Carbide Heating Rod Description

Silicon carbide cua sov pas nrig yog qhov kub-kub uas tsis yog hlau cua sov uas ua tiav los ntawm silicon carbide. Muab piv rau lwm yam hlau, silicon carbide cua sov caij muaj ntau yam kev ua haujlwm xws li kub ua haujlwm siab, oxidation tsis kam, lub neej ntev, thiab corrosion kuj.

Qhov kawg txias yog impregnated nrog silicon hlau - hu ua ib thooj, thiab tsis tshua muaj kev tiv thaiv txias kawg uas yog lub cub tawg welded rau thaj chaw kub - hu ua peb-daim los yog LRE (tsis tshua muaj siab kawg) hom. Qhov kev tiv thaiv hluav taws xob qis qis no ua rau lawv ua haujlwm ntawm qhov kub thiab txias. Cov extremities ntawm lub ntsiab yog metalized nrog txhuas los muab ib tug tsis tshua muaj kev sib cuag nto ntawm cov hluav taws xob kev twb kev txuas yog tsim los ntawm braided aluminium straps.

SSC's silicon carbide rods yog cov duab cylindrical uas muaj zog heev uas tsim los ntawm cov tshuaj tiv thaiv-bonded silicon carbide siv rau hauv cov ntawv thov kub.

Equal Diameter Silicon Carbide Heating Qws Specification

Yam khoom #	Txoj kab uas hla	Tshaj tag nrho Length	Hot Zone (Electrical Resistance)	Cold End (Electrical Resistance)
E10	3/8 nti	26 nti	0.3486 Ohms/Inch	0.01743 Ohms/Inch
E10	10 mm	660 hli	0.01372 Ohms/mm	0.000686 Ohms/mm
E11	7/16 nti	36 nti	0.2563 Ohms/Inch	0.01282 Ohms/Inch
E11	11 mm	9 15mm	0.01009 Ohms/mm	0.000505 Ohms/mm
E13	1/2 nti	42 nti	0.1963 Ohms/Inch	0.00982 Ohms/Inch
E13	13 hli	1090 hli	0.00773 Ohms/mm	0.000387 Ohms/mm
E16	5/8 nti	50 nti	0.1262 Ohms/Inch	0.00631 Ohms/Inch
E16	16 mm	1250 hli	0.00497 Ohms/mm	0.000248 Ohms/mm
E19	3/4 nti	62 nti	0.0865 Ohms/Inch	0.00433 Ohms/Inch
E19	19 hli	1 575mm	0.00341 Ohms/mm	0.00017 Ohms/mm
E25	1/1 nti	74 nti	0.05 Ohms/Inch	0.0025 Ohms/Inch
E25	25 hli	1900 hli	0.00197 Ohms/mm	0.000098 Ohms/mm
E32	1-1/4 Nti	86 Ntiv	0.0343 Ohms/Inch	0.00171 Ohms/Inch
E32	32 hli	2 210mm	0.00134 Ohms/mm	0.000067 Ohms/mm
E35	1-3/8 nti	90 Inch	0.027 Ohms/Inch	0.00135 Ohms/Inch
E35	35 hli	2 290mm	0.00106 Ohms/mm	0.000053 Ohms/mm
E38	1-1/2 nti	92 nti	0.0234 Ohms/Inch	0.00117 Ohms/Inch
E38	3 8mm	2 340mm	0.00092 Ohms/mm	0.000046 Ohms/mm
E45	1-3/4 Nti	104 nti	0.0165 Ohms/Inch	0.00082 Ohms/Inch
E45	45 hli	2 670mm	0.00065 Ohms/mm	0.000032 Ohms/mm
E54	2-1/8 nti	130 Inch	0.015 Ohms/Inch	0.00075 Ohms/Inch
E54	54mm ib	3300 hli	0.00059 Ohms/mm	0.00003 Ohms/mm
E70	2-3/4 Nti	130 Inch	0.007298 Ohms/Inch	0.00052 Ohms/Inch
E70	70 hli	3300 hli

Sib npaug Diameter Silicon Carbide Heating Qws Daim Ntawv Thov thiab Lwm Yam Kev Lag Luam

● Silicon carbide

● hmoov metallurgy

● Ceramics

● iav

● Hlau

● Lub qhov cub kub kub

● Muaj tshuab

● Cov khoom siv hluav taws xob cua sov

● Kev Tshawb Fawb & Kev Tshawb Fawb

Chemical Identifiers

Linear Formula	SiC
MDL Number	TIAB SA 00049531
EC No.	206-991-8
Beilstein/Reaxys No.	N/A
Pubchem CID	9863
IUPAC npe	methanidylidynesilicon
SMILES	[C-]#[Si plus]
InchI ID nkag mus	InChI=1S/CSi/c1-2
InchI Key	HBMJWWWQQXIZIP-UHFFFAOYSA-N

Silicon Carbide qws Properties (Theoretical)

Compound Formula	SiC
Molecular Luj	40.1
Qhov tshwm sim	Qws
Melting Point	N/A
Boiling Point	N/A
Qhov ntom	3. 0 mus rau 3.2 g/cm3
Solubility hauv H2O	N/A
Hluav taws xob Resistivity	1 rau 4 10x Ω-m
Poisson tus ratio	{{0}}.15 to 0.21
Tshwj xeeb kub	670-1180 J/kg-K
Tensile zog	210-370 MPa (Qhov kawg)
Thermal conductivity	120-170 W / mK
Thermal Expansion	4. 0 mus rau 4.5 µm/mK
Young's Modulus	370-490 GPa
Exact Mass	39.976927
Monoisotopic pawg	39.976927

Silicon Carbide Rod Health & Safety Information

Lus Cim	Ceeb toom
Cov Lus Qhia Txog Hazard	H315-H319-H335
Hazard Codes	Xis
Risk Codes	36/37/38
Cov lus hais txog kev nyab xeeb	26-36
RTECS Number	VW 0450000
Cov ntaub ntawv thauj mus los	N/A
WGK Germany	3
