Muaj nuj nqi
CAS Nr:. | 50926-11-9 |
Txheej Khoom: | In2O3 • SnO2 |
Txheej Thickness: | 50-200nm |
Kev xa tawm: | 85% (ntawm 550nm) |
Surface Resistance: | 10-100 ohms/sq |
Nto Roughness: | 1-10 nm |
Ua haujlwm muaj nuj nqi: | kev ua haujlwm yog 4.8 ~ 4.9eV |
Haze: | 1 feem pua |
Thickness: | 1.1mm, 0.7mm, 0.5mm |
Dimension: | 25x25mm, 50x50mm, 100x100mm, 200x200mm (Square) 50x25mm, 75x25mm (Rectangular) los yog Customized (Max. 405mm x 305mm) |

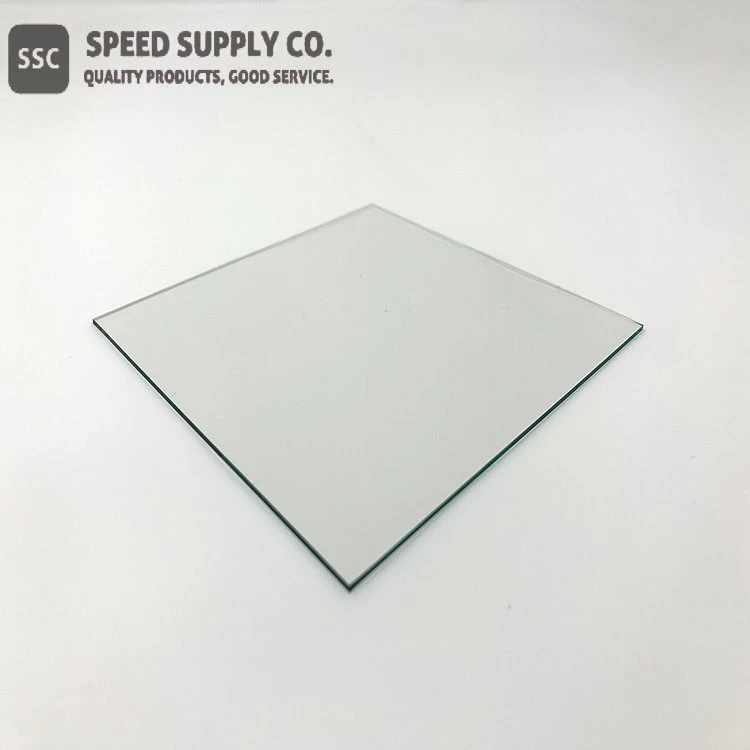

Indium Tin Oxide Coated Iav Slide Description
Indium tin oxide coated iav swb yog ib yam ntawm cov pob tshab conductive oxide (TCO) coated substrate. Nws yog feem ntau hu ua ITO coated iav. ITO coated iav muaj qhov zoo tshaj plaws conductive thiab siab transmittance zog. ITO iav yog N-hom semiconductor. Cov txheej nyias nyias ntawm Indium tin oxide hla lub khob substrate ua rau nws pob tshab thiab tsis tshua muaj nplaim taws. Lub ITO txheej hla ib daim iav yog nqa tawm hauv lub tshuab nqus tsev tag nrho los ntawm txoj kev magnetron sputtering nyob ib ncig ntawm 300 degree Celsius. Nws yog ib sab txheej, qhov chaw coated yog conductive, thiab lwm qhov chaw yog insulated. Nyob rau hauv txoj kev no, muaj passivation txheej ntawm silicon dioxide (SiO2) nyob nruab nrab ntawm ITO txheej thiab borosilicate iav nto. Tus qauv thickness ntawm SiO2 yog 25 nm. Cov txheej txheej passivation yog qhov tseem ceeb los ua kom qhov zoo thiab ua kom lub neej ntev ntawm ITO coated iav phaj. Cov iav borosilicate lossis ntab iav yog ib sab ua tiav substrate. Qhov siab tshaj plaws ua haujlwm kub ntawm ITO coated iav swb yog 350 degree Celsius.
ITO coated iav phaj yog laser txiav feem ntau nyob rau hauv square thiab rectangular duab, tej zaum nws customized nyob rau hauv lub voj voog. Nws tseem hu ua ITO coated iav npog. Lub square zoo li tus qauv ITO coated iav slides loj yog 25mm, 5{{10}}mm, 100mm, thiab 200mm. Cov duab plaub zoo li ITO iav swb yog 50mm x 25mm thiab 75mm x 25mm. Qhov siab tshaj plaws tsim loj ntawm ITO coated iav substrate yog 405mm x 305mm. Tus qauv thickness ntawm ntab iav uas conventionally siv rau txheej yog 0.5mm, 0.7mm, thiab 1.1mm. Indium tin oxide conductivity nyob ntawm qhov chaw tiv thaiv, uas yog reciprocal rau conductivity. Qhov tshwj xeeb nto tiv thaiv ntawm ITO coated iav ntawv yog nyob rau hauv thaj tsam ntawm 10 mus rau 100 ohms ib square. Kev xa tawm ntawm ITO iav npog ntawm 550nm yog ntau dua 85 feem pua. ITO zaj duab xis lossis txheej tuab yog nyob rau hauv thaj tsam ntawm 50nm txog 200nm (500Å - 2000Å). Qhov saum npoo roughness yog 1-10 nm nyob ntawm lawv cov specifications, whereas ITO ua hauj lwm muaj nuj nqi yog 4.8-4.9eV tom qab ib tug zoo tu. Nws tseem hu ua ITO wafer. Qhov haze ntawm cov iav conductive yog tsawg dua 1 feem pua.
Indium Tin Oxide Coated iav Slide Properties
● Cov pob tshab thiab cov khoom siv hluav taws xob zoo heev
● Zoo heev optical transmittance los ntawm qhov pom mus rau qhov ze-infrared wavelength ntau yam
● Sputtered indium tin oxide nyias-zaj duab xis
● Coated ntawm zoo iav substrates
● SiO2 passivation txheej (CEC–S & CEC–P series)
● Tsawg microroughness
● High hluav taws xob nto kuj homogeneity
● Reflective rau infrared wavelengths
● High uniformity ntawm kev sib kis
● Zoo heev abrasion tsis kam thiab txheej adhesion
● Kev tsim los ntawm laser lossis etching txheej txheem ua tau
Indium Tin Oxide Coated Iav Slide Daim ntaub ntawv thiab lwm yam lag luam
● LCD thiab OLED zaub
● ITO-coated microscope slides rau kev tshawb fawb thiab kev tshawb fawb
● Kev siv cov txheej txheem micro
● Heatable microscope tables thiab slides
● Cov ntawv npog rau kev siv tshuab kho mob
● Kev co coatings rau cov ntxaij vab tshaus kov thiab kov-sensitive zaub technology
● Circuit Court substrates rau electronics
● Microscope cua sov theem
● Anode rau organic LEDs (OLED)
● Translucent electrodes thiab capacitors
● EMF/EMI/EMC/RFI thiab HF shielding iav
● Cov kav hlau txais xov tiaj tus rau cov khoom siv sib txuas lus digital
● Cov khoom siv hluav taws xob muaj peev xwm & npog tsom iav
● Optical windows rau qhov chaw siv
● Organic solar cells
● Reflective infrared lim
● Txheej rau de-icing qhov rais
● Infrared iav
Chemical Identifiers
Linear Formula | Hauv2O3• SnO2 |
MDL Number | TIAB SA 00171662 |
EC No. | N/A |
Pubchem CID | 16217324 |
IUPAC npe | dioxotin; oxo (oxoindiganyloxy) indigane |
SMILES | O{{0}[In]O [In]=OO= [Sn]=O |
InchI ID nkag mus | InChI=1S/2In.5O.Sn |
InchI Key | LNNWKAUHKIHCKO-UHFFFAOYSA-N |
Indium Tin Oxide Coated iav Slide Properties (Theoretical)
Compound Formula | Hauv2O5Sn |
Molecular Luj | 428.34 |
Qhov tshwm sim | Khoom |
Melting Point | 1526-1926 degree |
Boiling Point | N/A |
Qhov ntom | 7.14 g/m3 |
Solubility hauv H2O | N/A |
Exact Mass | 429.684524 |
Monoisotopic pawg | 429.684524 |
Indium Tin Oxide Coated Glass Slide Health & Safety Information
Lus Cim | Ceeb toom |
Cov Lus Qhia Txog Hazard | H315-H319-H335 |
Hazard Codes | Xis |
Risk Codes | 36/37/38 |
Cov lus hais txog kev nyab xeeb | 26 |
RTECS Number | N/A |
Cov ntaub ntawv thauj mus los | N/A |
WGK Germany | 3 |
Cim npe nrov: indium oxide coated iav swb, Tuam Tshoj, lwm tus neeg, yuav, muag, ua nyob rau hauv Suav teb
